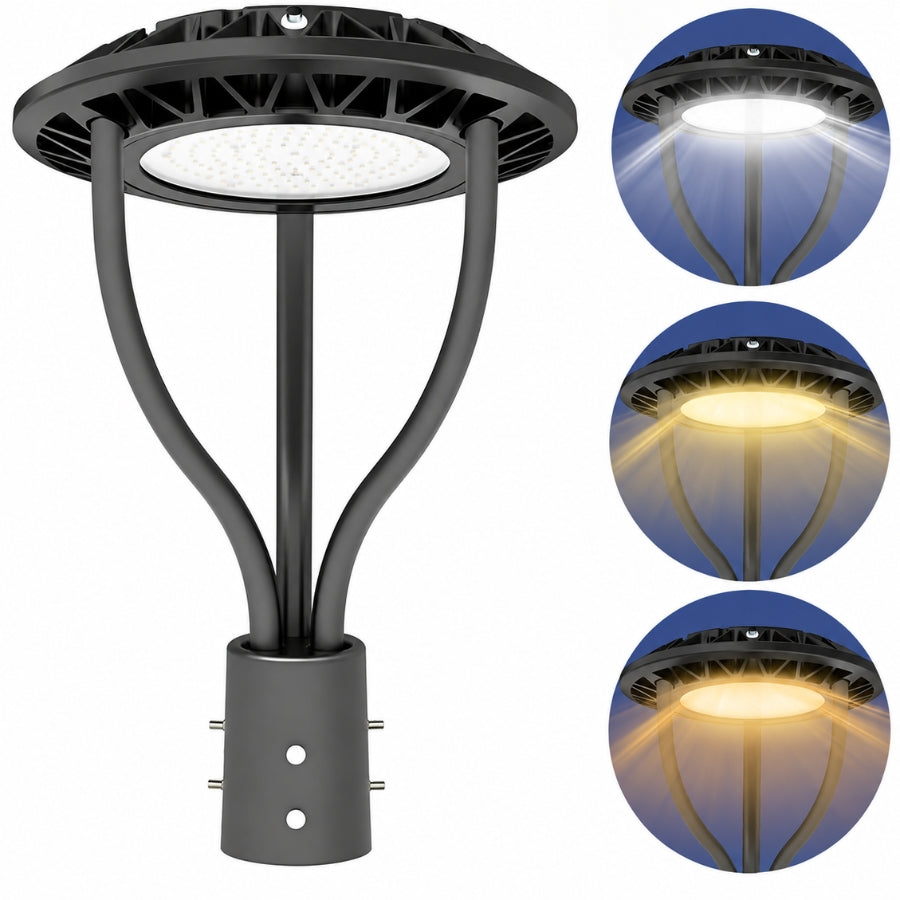

80W/100W/120W/150W CCT & Wattage Tunable Post Top LED Light, 3CCT 3000K/4000K/5000K, 130 LM/W, 120-277V AC, Built-In Photocell, 120° Beam, ETL/cETL & DLC Certified, IP65, 5-Year Warranty, Black Housing

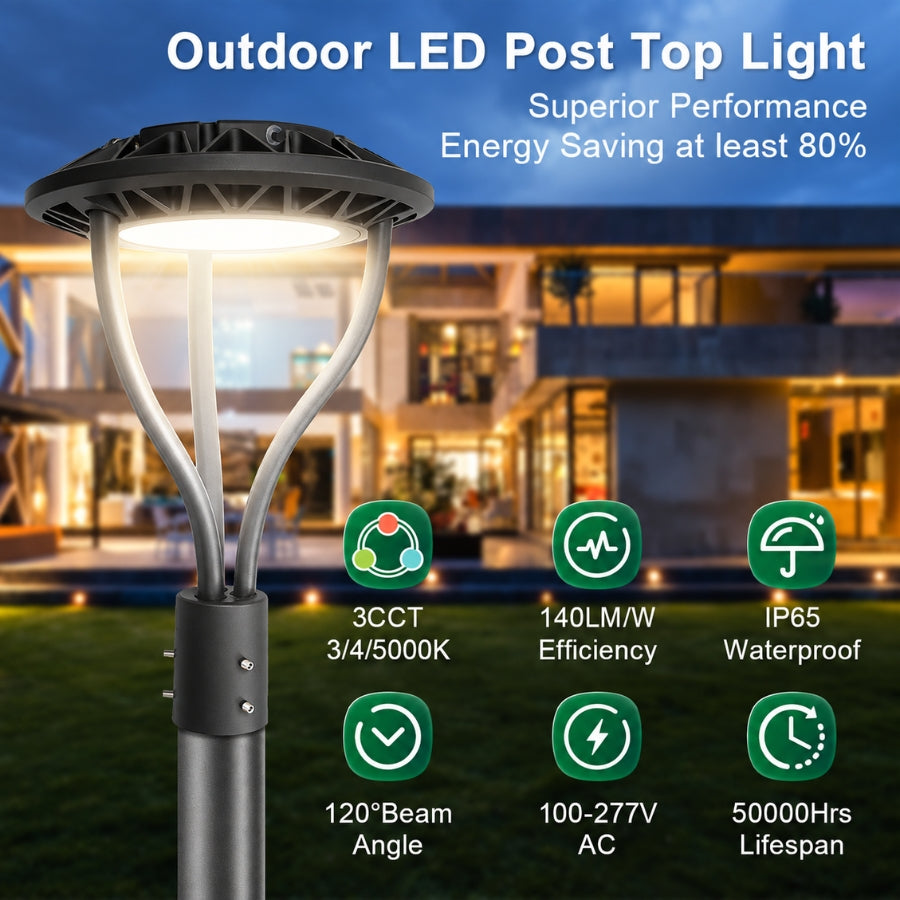

Product Overview

The Energy Efficient LEDs CCT & Wattage Tunable Post Top LED Light provides adjustable lighting performance for commercial, municipal, and outdoor area-lighting applications. Available in 80W, 100W, 120W, and 150W, each configuration delivers 130 lm/W with selectable 3000K, 4000K, or 5000K color temperature.

Designed for dependable outdoor operation, the fixture combines a heavy die-cast aluminum housing, tempered glass optics, built-in universal photocell, IP65 protection, and 120–277V AC compatibility. The post top design is suitable for parking lots, shopping centers, auto dealerships, sports complexes, pathways, gardens, and other large outdoor areas.

Key Features

• Selectable wattage: 80W / 100W / 120W / 150W
• Selectable CCT: 3000K / 4000K / 5000K
• 130 lm/W lighting efficiency
• Built-in universal photocell
• Photocell control: 3 fc ON / 13 fc OFF
• 120–277V AC
• 120° nominal beam angle
• 108° average photometric beam angle
• IP65 outdoor protection
• Heavy die-cast aluminum housing
• Black powder-coated finish
• Anti-salt treatment
• Tempered glass optics
• High-brightness Lumileds LED chips
• ETL, cETL & DLC certified
• Approximately 50,000-hour lifetime
• 5-year limited warranty

Technical Specifications

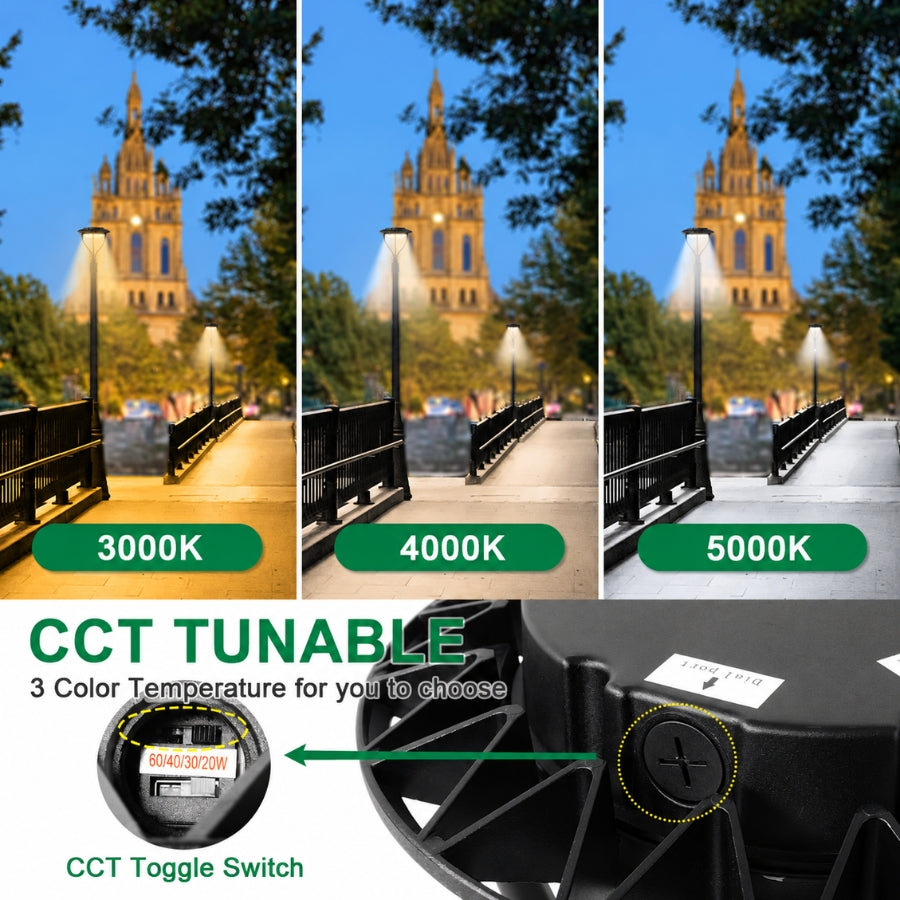

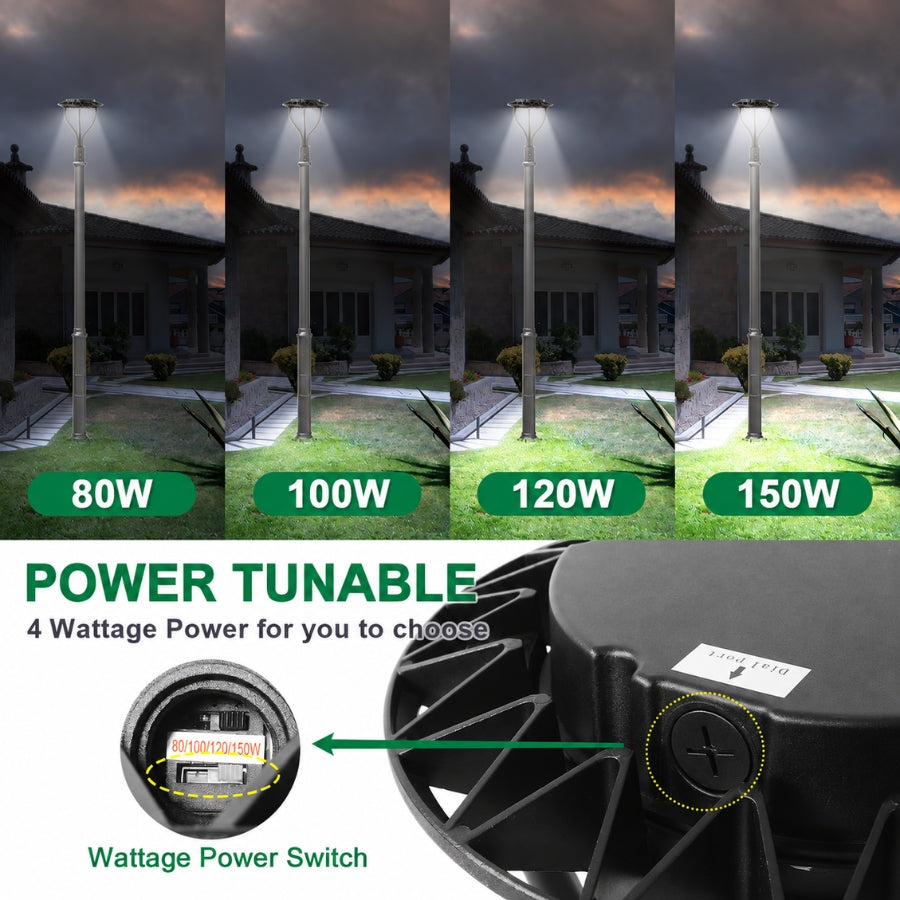

CCT & Wattage Selectability

The tunable design allows the fixture to be configured according to the lighting requirements of different properties and outdoor areas.

Wattage: 80W / 100W / 120W / 150W

Color Temperature: 3000K / 4000K / 5000K

This gives contractors and facility managers greater flexibility when specifying one fixture platform across multiple lighting applications.

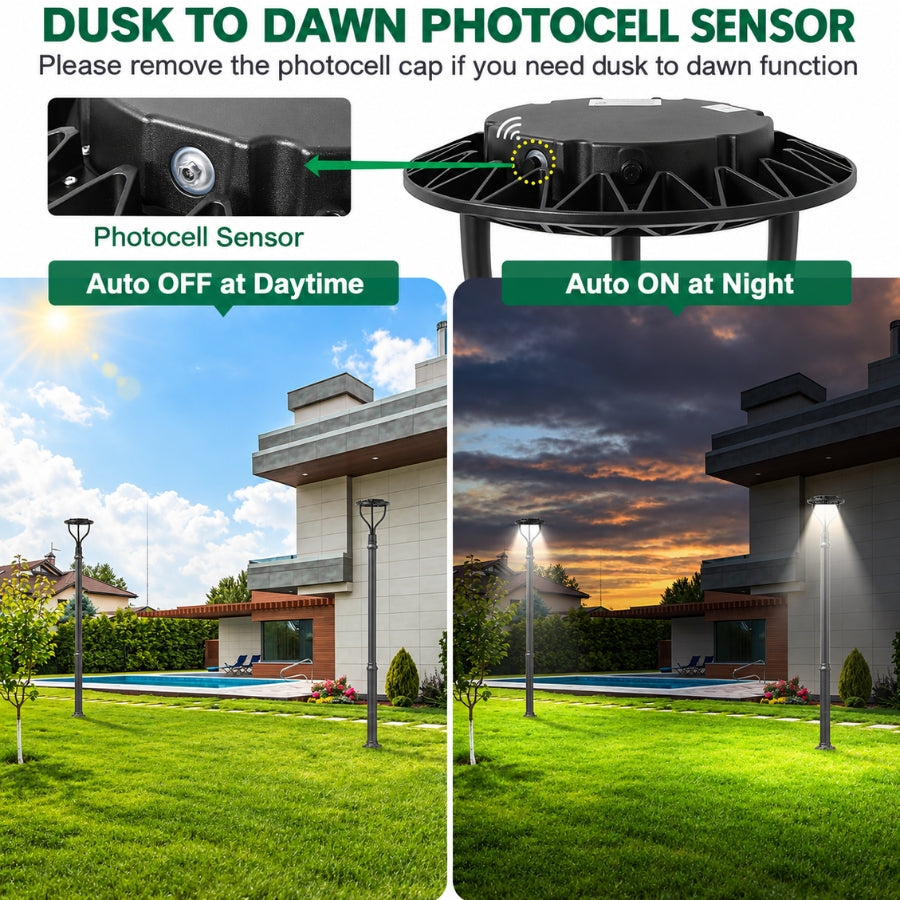

Built-In Photocell

A universal photocell is integrated into the fixture for automatic outdoor lighting control. The specified control points are 3 fc ON / 13 fc OFF, helping simplify dusk-to-dawn operation without requiring a separate photocell.

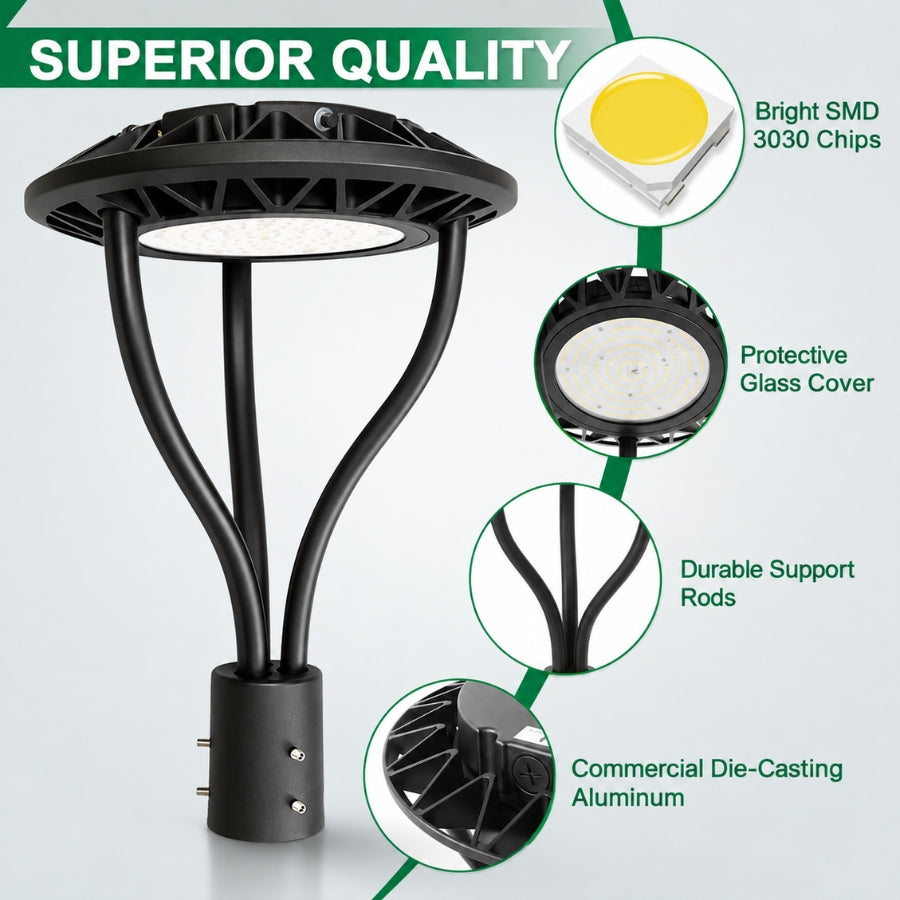

Durable Outdoor Construction

The fixture uses a heavy die-cast aluminum housing with a black powder-coated finish and anti-salt treatment. Tempered glass optics provide a durable optical system for outdoor installations.

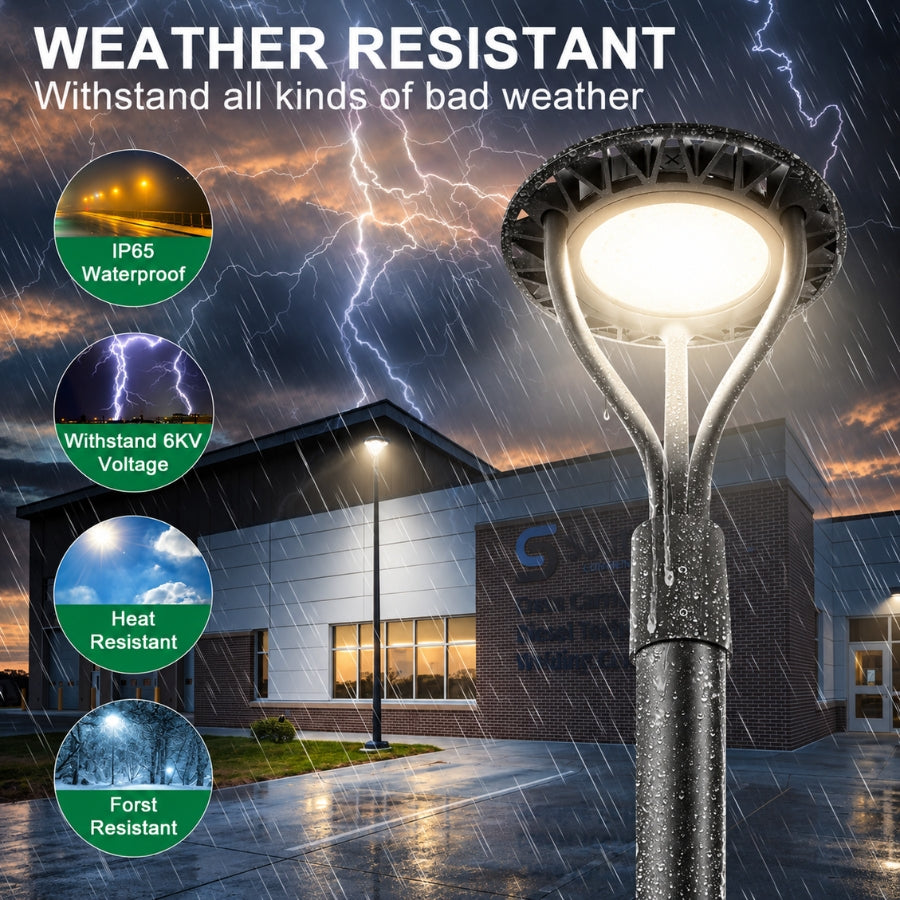

With an IP65 rating, the fixture is designed to withstand dust and water exposure associated with appropriate outdoor lighting applications.

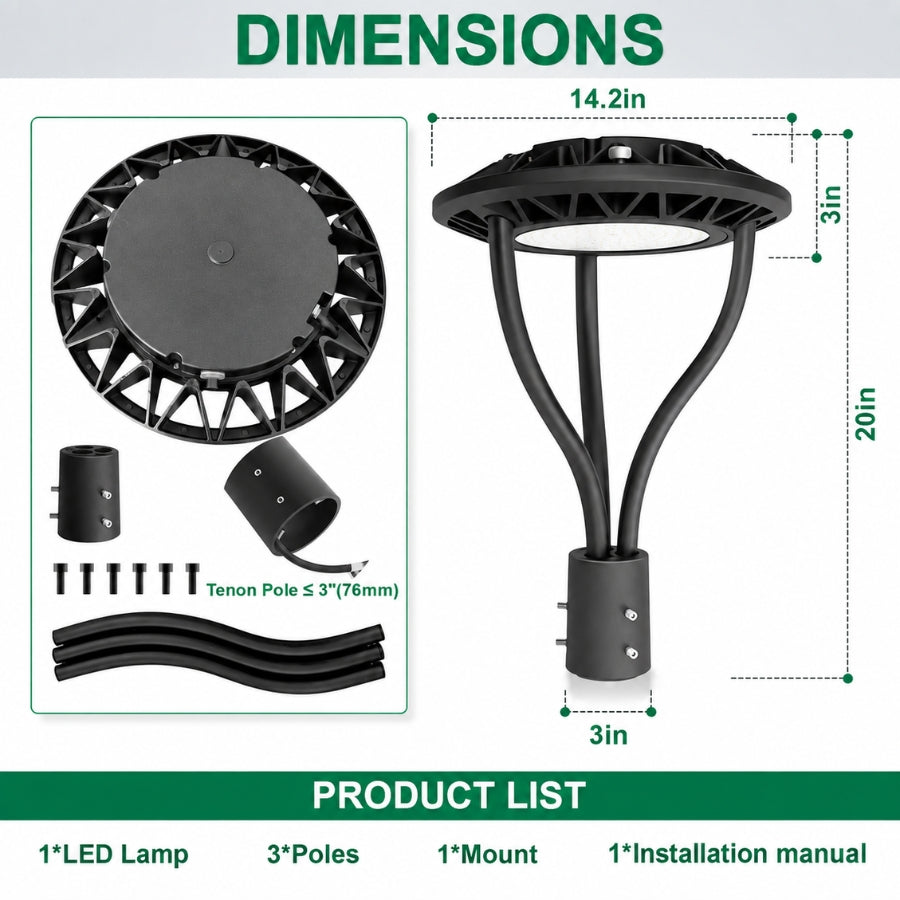

Mounting & Installation

The fixture is designed for 3-inch round pole mounting and is intended for installation heights of approximately 15 to 30 feet.

Installation includes routing the power cable through the fixture, securing the threading rod and lever arm, connecting the L/N/G wiring, and fastening the fixture to the pole.

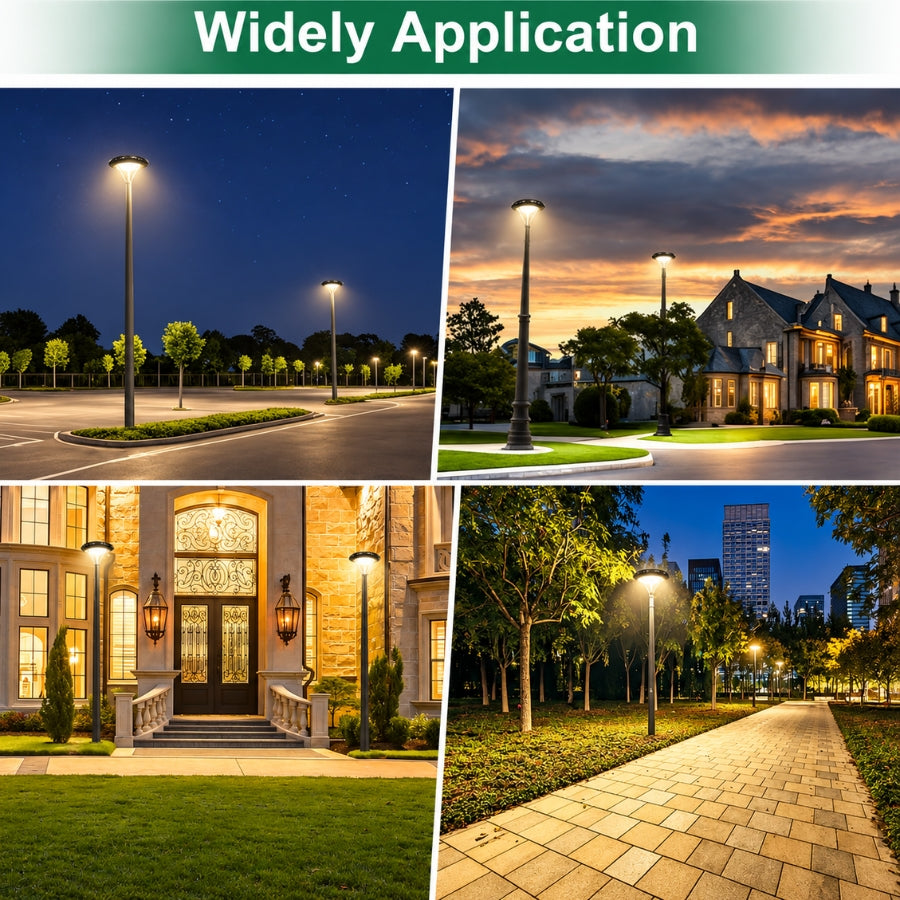

Recommended Applications

• Parking lots
• Auto dealerships
• Shopping centers
• Commercial properties
• Sporting complexes
• Garden lighting
• Pathway lighting
• Pedestrian areas
• Outdoor area lighting
• Commercial landscape lighting
• Municipal outdoor lighting

Replacement & Lighting Performance

With 130 lm/W efficiency, the fixture provides a high-output LED alternative to traditional MH/HPS outdoor lighting. The available wattage configurations make it possible to select an appropriate output for different parking areas, pathways, commercial properties, and pole-mounted applications.

The manufacturer's specification lists the following approximate MH/HPS equivalents:

• 80W: 160–220W MH/HPS
• 100W: 220–280W MH/HPS
• 120W: 280–360W MH/HPS
• 150W: 360–450W MH/HPS

Bulk & Contractor Buying

Designed for electrical contractors, lighting distributors, property managers, municipalities, facility managers, and commercial lighting projects requiring adjustable wattage and CCT.

Contact Energy Efficient LEDs for bulk quantities, project pricing, and commercial lighting assistance.

Frequently Asked Questions

What wattages are available?

The fixture is available in 80W, 100W, 120W, and 150W configurations.

Can I select the color temperature?

Yes. The fixture offers 3000K, 4000K, and 5000K selectable CCT.

Does the fixture include a photocell?

Yes. A universal photocell is built into the fixture.

What is the photocell control setting?

The specification lists 3 fc ON / 13 fc OFF.

What voltage does it support?

The fixture operates on 120–277V AC.

What type of pole is it designed for?

The specified configuration is designed for 3-inch round pole mounting.

What mounting height is recommended?

The specification identifies mounting heights from approximately 15 to 30 feet.

What is the beam angle?

The nominal beam angle is 120°, while the photometric data lists an average beam angle of 108°.

Is it suitable for outdoor use?

Yes. The fixture is designed for outdoor area lighting and features IP65 protection, powder-coated aluminum construction, and anti-salt treatment.

What certifications does it have?

The supplied specification lists ETL, cETL, and DLC certifications.

What is the expected LED lifetime?

The fixture is rated for approximately 50,000 hours.

What is the operating temperature?

The specified working temperature is -20°C to 45°C.

What LED chips are used?

The fixture uses Lumileds LED chips.

Does it require a separate photocell?

No. The standard configuration includes an integrated universal photocell.

Does it include a warranty?

Yes. The fixture includes a 5-year limited warranty.
