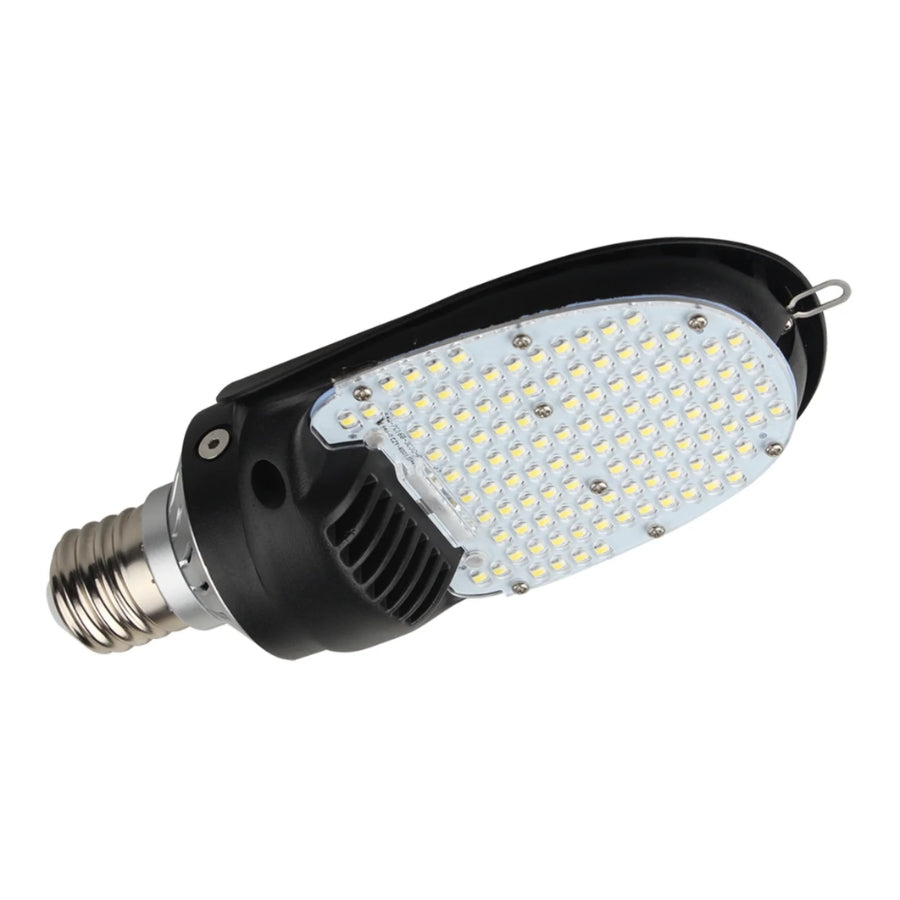

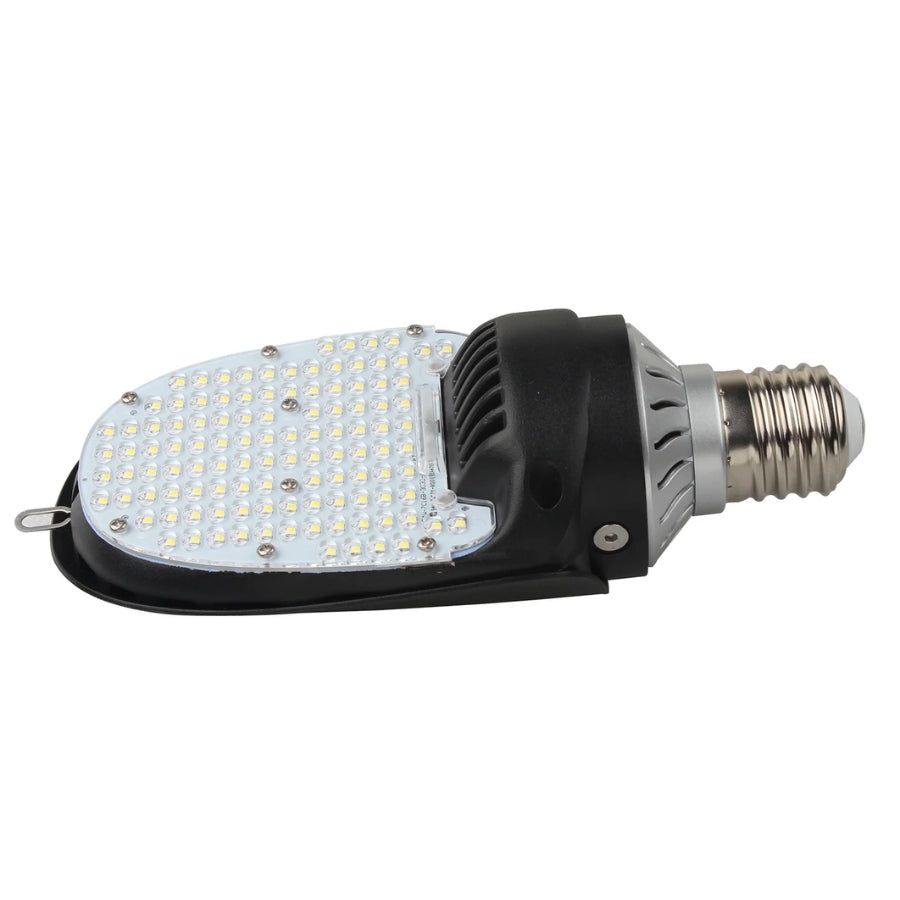

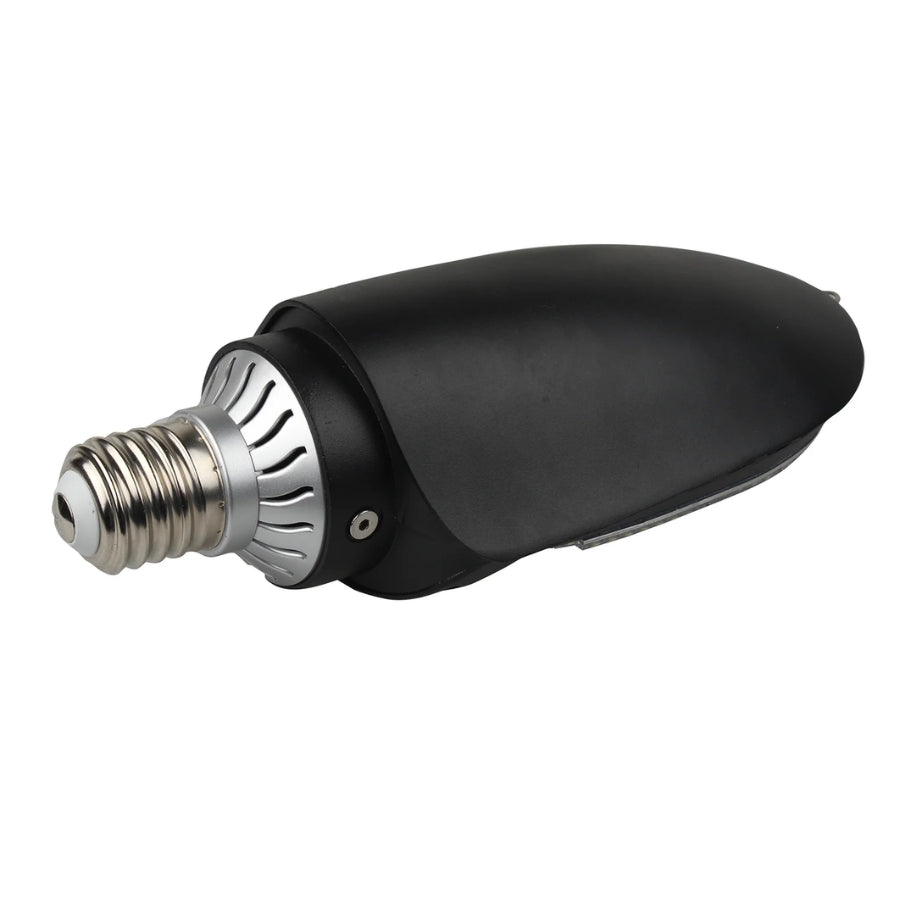

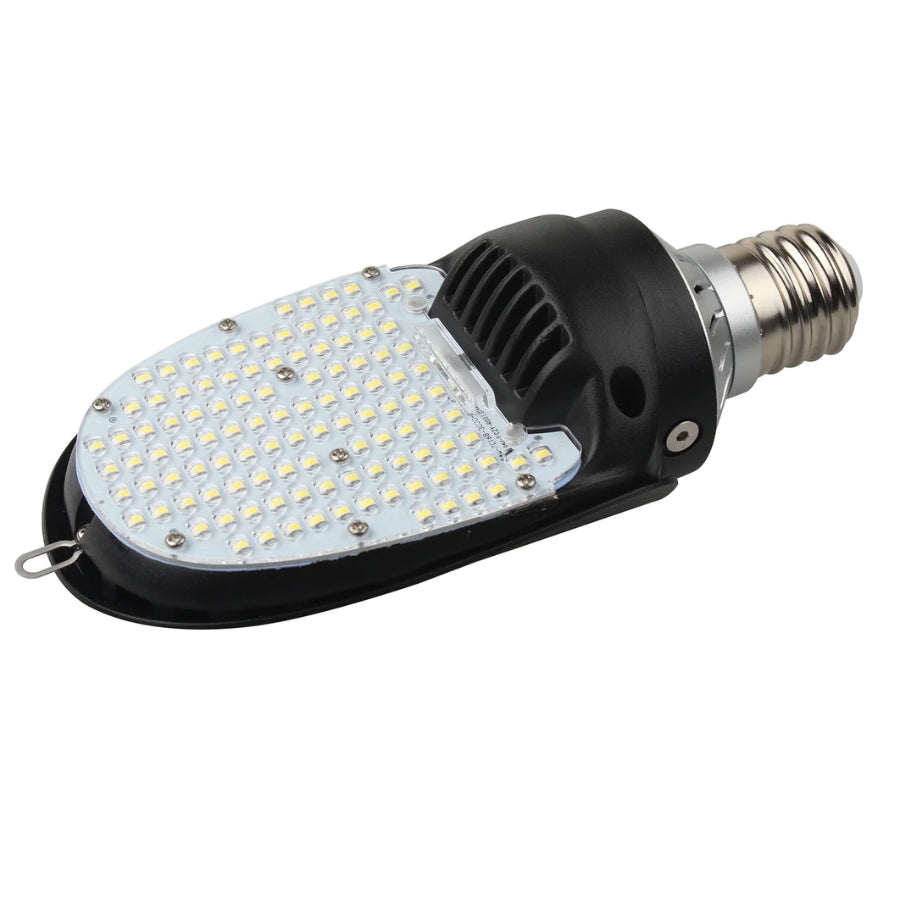

75W E39 LED Retrofit Lamp, 9,750 Lumens, 130 LM/W, 5000K, 120-277V AC, Rotatable E39 Mogul Base, 120° Beam Angle, Built-In Cooling Fan, Die-Cast Aluminum Housing, UL/cUL Listed, DLC Listed, Ballast Bypass, 5-Year Warranty

Product Overview

Upgrade traditional shoebox, area, and roadway fixtures with this 75W E39 LED Retrofit Lamp, delivering 9,750 lumens at 130 LM/W. The 5000K cool-white output provides bright, uniform illumination while offering a practical LED replacement for compatible 150W-200W metal halide or HPS lighting.

The retrofit features a rotatable E39 Mogul base for directional adjustment, a built-in cooling fan for active heat management, and a heavy die-cast aluminum housing with high thermal conductivity. Its internal isolated driver provides reliable operation across a 120-277V AC input range.

Designed for ballast-bypass installations, this LED retrofit lamp is suitable for compatible traditional shoebox fixtures, outdoor pole-mounted area lights, arm-mounted luminaires, and roadway lighting.

Key Features

• 75W LED Retrofit Lamp: Delivers 9,750 lumens at 130 LM/W.
• 5000K Cool White: Provides bright, clear commercial outdoor illumination.
• 120° Beam Angle: Provides broad and uniform light distribution.
• Rotatable E39 Mogul Base: Allows the lamp to be positioned toward the desired lighting direction.
• Built-In Cooling Fan: Provides active heat dissipation during operation.
• Die-Cast Aluminum Housing: High thermal conductivity helps manage operating heat.
• High-Brightness Lumileds LEDs: Designed for reliable commercial lighting performance.
• Internal Isolated Driver: Provides regulated, flicker-free operation.
• Ballast Bypass: Designed for direct AC operation after the existing ballast is removed or bypassed.
• 120-277V AC Input: Suitable for a wide range of commercial electrical systems.
• Safety Hanging Chain: Provides additional support during installation.
• UL/cUL & DLC Listed: Certifications specified by the manufacturer.
• 5-Year Limited Warranty: Manufacturer-backed limited warranty.

Technical Specifications

9,750-Lumen LED Performance

The 75W retrofit delivers 9,750 lumens with an efficacy of 130 lumens per watt, providing a high-output LED alternative to conventional HID lighting.

The manufacturer specifies the 75W version as an equivalent for approximately 150W-200W metal halide or HPS lighting in compatible fixtures.

Rotatable E39 Mogul Base

The E39 Mogul base is designed for compatible traditional shoebox and area-light fixtures. After installation, the LED lamp can be rotated to help position the 120° light distribution according to the fixture's orientation.

The socket locking catch must be properly reset after adjustment to securely hold the lamp in position.

Built-In Cooling Fan

An integrated cooling fan works with the high-thermal-conductivity aluminum housing to help dissipate heat from the LED assembly.

This active cooling design supports stable operation while the die-cast aluminum housing provides a durable structure for commercial retrofit applications.

Wide 120° Optical Distribution

The 120° beam angle provides broad illumination across outdoor areas. High-quality transmission PC optics help distribute light evenly and reduce uneven lighting patterns.

This makes the lamp suitable for applications where broad area coverage is required from an existing shoebox or pole-mounted fixture.

5000K Cool-White Illumination

The listed configuration provides 5000K cool-white light, delivering bright illumination suitable for commercial parking areas, pathways, outdoor facilities, and roadway environments.

The product family is also specified with 3000K and 4000K color-temperature options.

Ballast Bypass Design

This LED retrofit lamp is designed for ballast-bypass installation. The existing ballast and associated HID components must be removed or bypassed before connecting the LED lamp to the appropriate AC supply.

The retrofit uses an internal isolated driver designed for direct operation from the specified 120-277V AC input.

Suitable Applications

The 75W E39 LED retrofit lamp is suitable for compatible:

• Shoebox fixtures
• Parking lot lighting
• Area lighting
• Pathway lighting
• Garden lighting
• Outdoor pole-mounted luminaires
• Arm-mounted fixtures
• Roadway luminaires
• Commercial outdoor lighting

Installation Instructions

1. Turn off power before installation.
2. Verify that the input voltage and frequency are within the specified range.
3. Remove or bypass the existing ballast before installing the LED lamp.
4. Push the switch on the compatible socket and twist the LED retrofit lamp into the lamp holder.
5. Rotate the lamp to the desired angle.
6. Release and reset the socket locking catch to secure the lamp.
7. Confirm that all electrical connections are properly insulated.
8. Turn power back on and test the lamp.

Important: Installation and disassembly should be performed by qualified professionals. This product is suitable for damp locations and should not be used with dimmers. Verify fixture compatibility and electrical requirements before installation.

Frequently Asked Questions

How many lumens does the 75W E39 LED retrofit produce?

The 75W version produces 9,750 lumens at 130 LM/W.

What HID lamp does the 75W version replace?

It is specified as a replacement for approximately 150W-200W metal halide or HPS lighting in compatible fixtures.

What color temperatures are available?

The product family is specified in 3000K, 4000K, and 5000K. The configuration in this listing is 5000K.

Does this LED retrofit use an E39 Mogul base?

Yes. It uses a rotatable E39 Mogul base for compatible fixtures.

Can the lamp be rotated?

Yes. The lamp can be adjusted after installation to direct the light as needed. The socket locking catch must be reset after adjustment.

Does it require a ballast?

No. The existing ballast must be removed or bypassed before installation.

Does the lamp have active cooling?

Yes. It features a built-in cooling fan combined with a die-cast aluminum housing for heat management.

What voltage does it support?

The lamp operates on 120-277V AC.

Can I use a dimmer with this lamp?

No. The manufacturer's installation instructions state not to use the lamp with dimmers.

Is it suitable for outdoor applications?

Yes. It is specified as suitable for damp locations and is designed for compatible outdoor area, pathway, garden, pole-mounted, arm-mounted, and roadway fixtures.

What certifications does it have?

The specification sheet lists UL, cUL, and DLC.
