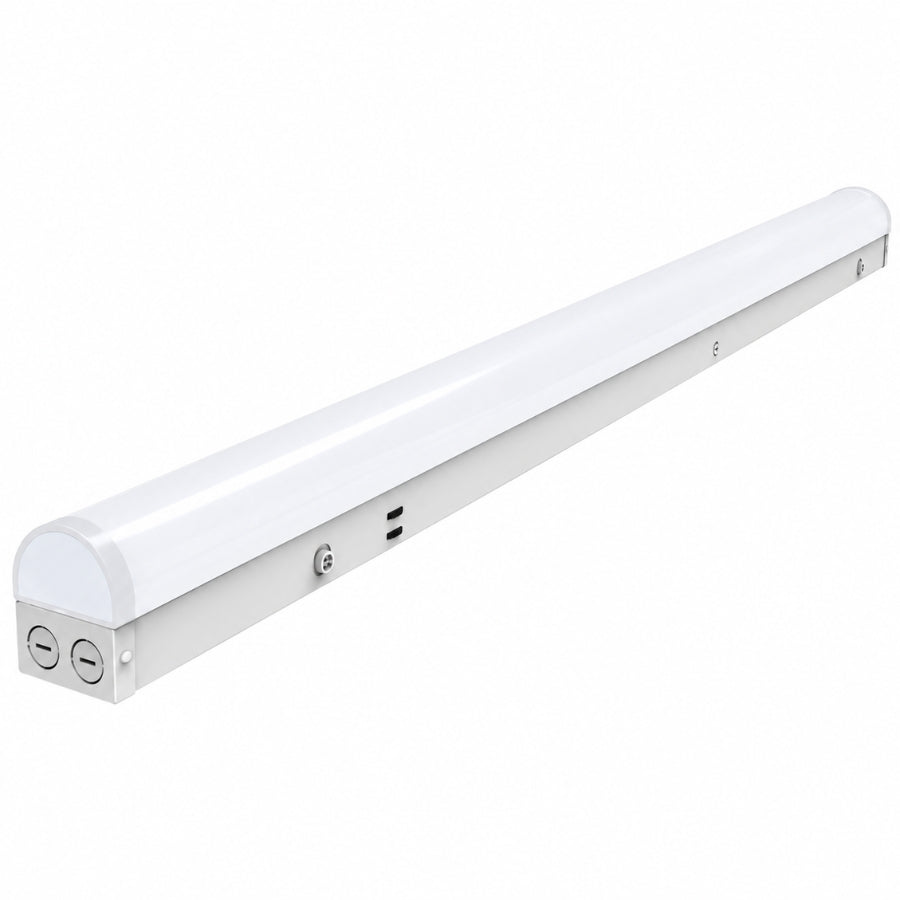

64W/75W/90W 8FT LED Linear Strip Light, Up to 11,700 Lumens, 130 LM/W, 3500K/4000K/5000K Selectable, 120-277V AC, 130° Beam, 0-10V Dimmable, Linkable, Surface/Hanging Mount, ETL/cETL & DLC Premium, 5-Year Warranty

Product Overview

The Energy Efficient LEDs 8FT LED Linear Strip Light is a high-performance commercial lighting solution designed for warehouses, factories, retail stores, offices, shopping centers, and other large interior spaces. Available in 64W, 75W, and 90W configurations, it delivers up to 11,700 lumens with a rated efficiency of 130 LM/W.

The fixture features 3500K/4000K/5000K selectable color temperature, 120-277V AC input, 0-10V dimming, and a wide 130° beam angle for broad, consistent illumination. Its linkable design supports continuous linear lighting layouts, while surface and suspended mounting options provide installation flexibility.

A durable cold-rolled steel housing, UV-protected prismatic PC optic, aluminum end caps, and passive thermal design make this 8-foot LED strip light well suited for demanding commercial and industrial environments.

Specifications

Three Wattage Options

Choose the output level that matches the requirements of your space:

The selectable wattage options allow contractors and facility managers to choose the appropriate light output for different ceiling heights, room sizes, and illumination requirements.

3500K / 4000K / 5000K Selectable

The integrated CCT selection provides three lighting options in one fixture:

• 3500K: Warm-neutral appearance for comfortable commercial environments
• 4000K: Balanced neutral white for offices, retail, and general-purpose spaces
• 5000K: Bright daylight appearance for warehouses, industrial areas, and workspaces

This flexibility simplifies product selection across projects with different lighting preferences.

Wide 130° Beam Angle

The 130° beam angle provides broad light distribution across the working area. The wide optical pattern helps minimize dark areas between fixtures and supports uniform illumination across open commercial spaces.

The UV-protected opal prismatic PC optic is designed to distribute light smoothly while protecting the optical material during long-term use.

Linkable Linear Lighting

The 8FT fixture supports linkable installation, allowing multiple strip lights to be arranged in continuous rows. This is particularly useful for long aisles, warehouse areas, production floors, corridors, and other spaces requiring extended linear lighting.

Optional seamless splicing accessories can be used where supported by the fixture configuration.

0-10V Dimming

The fixture includes a UL-listed 0-10V dimmable driver, allowing compatible lighting control systems to adjust illumination levels.

Dimming can be useful in applications where different lighting levels are required throughout the day or where facility operators want greater control over installed lighting.

Surface or Hanging Mount Installation

The 8FT LED linear strip light supports two primary mounting configurations:

Surface Mount:
Secure the fixture directly to the ceiling or mounting surface using the supplied mounting hardware and buckles.

Hanging Mount:
Suspend the fixture from the ceiling using compatible chain, hooks, pendant cord, or suspension hardware.

The mounting flexibility makes the fixture suitable for both low-ceiling and high-ceiling commercial installations.

Durable Commercial Construction

The fixture body is formed from 0.6mm cold-rolled steel and finished with a high-gloss white powder coating. White aluminum end caps provide a clean appearance at both ends of the fixture.

The combination of steel construction and UV-protected optical material makes the fixture suitable for demanding indoor commercial and industrial environments.

Optional Accessories

Depending on project requirements, the system can support optional accessories including:

• Motion sensor
• Emergency battery/driver
• Linkable plates
• Hanging mounting components
• Surface mounting hardware

These options allow the same linear strip platform to be adapted for different commercial lighting projects.

Recommended Applications

The Energy Efficient LEDs 8FT LED Linear Strip Light is suitable for:

• Warehouses
• Factory floors
• Manufacturing facilities
• Retail stores
• Shopping malls
• Offices
• Commercial buildings
• Storage facilities
• Workshops
• Basements
• Corridors
• Utility areas
• General industrial lighting

Bulk Buying for Commercial Projects

The 8FT LED linear strip light is designed for projects requiring multiple fixtures and continuous lighting runs. Contractors, electrical distributors, facility managers, builders, and commercial property owners can purchase multiple fixtures for large-scale installations.

Bulk orders are ideal for:

• Warehouse lighting upgrades
• Factory lighting projects
• Retail store rollouts
• Office renovations
• New commercial construction
• Industrial facility upgrades
• Multi-fixture LED retrofit projects

Planning a large lighting installation? Contact Energy Efficient LEDs for bulk quantities, project requirements, and commercial pricing.

Installation

Installation should be completed by a qualified electrician or professional.

1. Turn off electrical power before installation.
2. Select the desired surface or hanging mounting method.
3. Secure the mounting buckles, hooks, chains, or suspension hardware.
4. Connect the AC input wiring according to the fixture instructions.
5. Connect 0-10V dimming wires when dimming is required.
6. Secure the fixture and ensure all wiring is properly positioned.
7. Connect additional fixtures using compatible linkable components when creating continuous runs.
8. Restore power and test the lighting system.

Installation Warning: Do not cover the fixture with thermal insulation. Keep the fixture dry and away from corrosive substances. Installation and maintenance should be performed by qualified personnel.

Frequently Asked Questions

What is the maximum output of this 8FT LED strip light?

The 90W configuration produces up to 11,700 lumens.

What wattages are available?

The 8FT model is available in 64W, 75W, and 90W configurations.

Is the color temperature selectable?

Yes. The fixture provides 3500K, 4000K, and 5000K selectable CCT.

Is this LED strip light dimmable?

Yes. It uses a 0-10V dimmable driver and can be integrated with compatible 0-10V lighting controls.

Can multiple fixtures be connected together?

Yes. The fixture supports linkable installation for creating continuous linear lighting layouts.

How can this 8FT LED strip light be mounted?

It supports both surface mounting and hanging/suspended mounting.

What voltage does it operate on?

The fixture operates on 120-277V AC.

What is the beam angle?

The specified beam angle is 130°, providing broad light distribution.

Is this fixture DLC Premium listed?

Yes. The supplied specification identifies the fixture as DLC Premium, along with ETL and cETL certifications.

What is the expected lifespan?

The fixture is specified for a 50,000-hour lifetime.

Are motion sensors or emergency options available?

Yes. Motion sensor and emergency driver options are available for applicable configurations.

Is this suitable for warehouse lighting?

Yes. The high-output 8FT format, wide beam, selectable CCT, dimming capability, and linkable design make it suitable for warehouse and other large commercial spaces.
