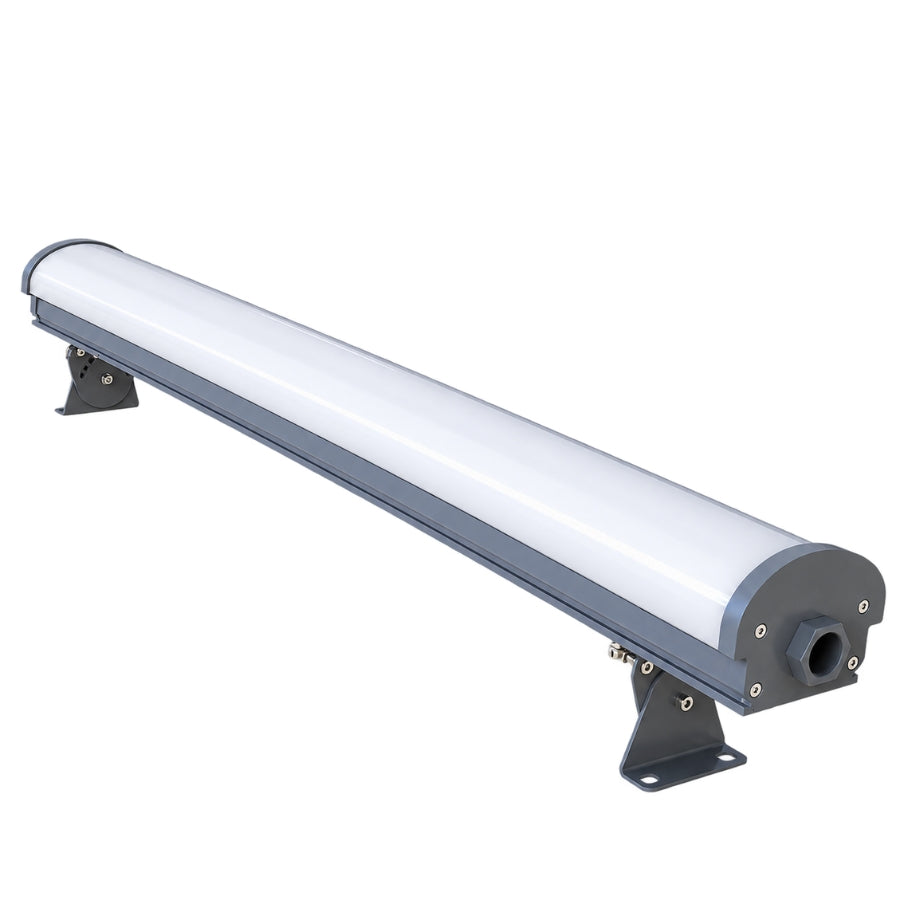

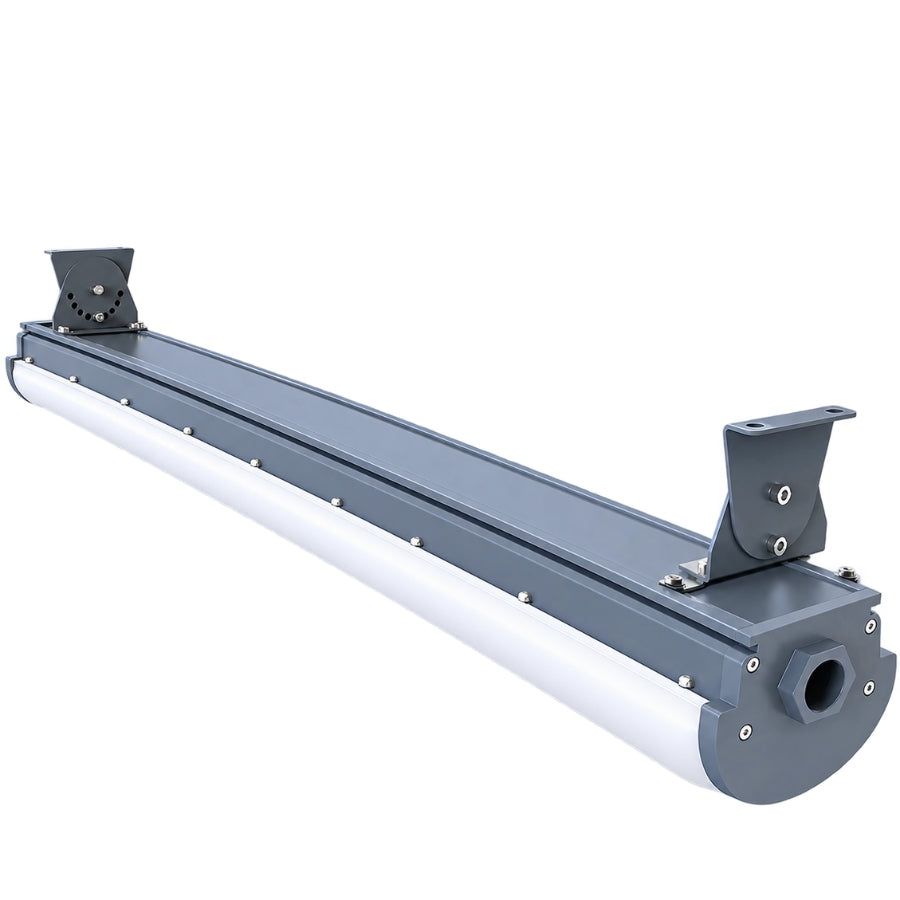

60W 4FT LED Explosion Proof Linear Light, Class I Division 2, 5000K, 7,800 Lumens, 120-277V AC, 130LM/W, IP66, UL Listed, DLC Listed, 120° Beam Angle, Hazardous Location

Product Overview

The Energy Efficient LEDs 60W 4FT LED Explosion Proof Linear Light is a high-efficiency industrial lighting solution designed for hazardous and demanding environments where reliable illumination and durable construction are required. Delivering 8,400 lumens at 140 lumens per watt, this 4-foot linear fixture provides bright, uniform illumination while supporting efficient operation.

Built with a heavy-duty 6063 aluminum alloy housing, high-transmission lens, and high-brightness Lumileds LED chips, the fixture is designed for long-term performance in industrial, damp, and wet locations. Its 120° wide beam angle provides broad, consistent light distribution for general-area illumination.

The fixture supports 120-277V AC input and offers multiple installation options, including ceiling, wall, pole, and pendant-chain mounting. It is specified for Class I, Division 2, Groups A, B, C, and D hazardous locations and is UL, CUL, and DLC listed.

Key Features

• 60W LED linear fixture with 8,400 lumens output
• High efficiency of 140 LM/W
• 4FT linear design for industrial and commercial applications
• 5000K color temperature for bright white illumination
• 120° wide beam angle for broad and uniform light distribution
• 120-277V AC universal input voltage
• Heavy-duty 6063 die-cast aluminum alloy housing
• High-transmission protective lens
• High-brightness Lumileds LED chips
• Class I, Division 2, Groups A, B, C & D
• IP68 rated construction according to the supplied specification
• UL, CUL & DLC Listed
• Suitable for damp and wet locations
• Multiple mounting configurations
• Rated life of approximately 50,000 hours
• 5-year limited warranty
• Designed as a replacement for 120-200W MH/HPS fixtures

Technical Specifications

Wide 120° Beam for Uniform Illumination

The fixture uses wide optics with an approximately 120° beam angle to distribute light across a broad area. This makes it suitable for general-area industrial lighting where consistent illumination is needed along work areas, facilities, tunnels, and other large spaces.

The supplied photometric data reports beam-angle measurements of approximately:

• C0/180: 112.9°
• C30/210: 111.5°
• C60/240: 109.7°
• C90/270: 110.1°
• Average Beam Angle: 120°

Heavy-Duty Industrial Construction

The fixture features a heavy 6063 aluminum alloy housing with a powder-coated finish for durable industrial use. A high-transmission lens works with the Lumileds LED chips to provide efficient light output while protecting the internal lighting components.

The fixture is designed for demanding environments and is rated IP68 according to the supplied specification.

Hazardous Location Applications

The 60W linear fixture is specified for:

• Class I, Division 2 hazardous locations
• Groups A, B, C and D
• Damp and wet locations
• Wastewater treatment facilities
• Oil and gas refineries
• Petrochemical facilities
• Food and beverage facilities
• Industrial tunnels
• Outdoor general-area lighting
• Wall-mounted applications
• Stanchion-mounted applications
• Industrial processing areas
• Commercial and industrial facilities requiring wide-area linear illumination

Always verify the fixture's certification markings, hazardous-location classification, applicable electrical codes, and site-specific requirements before installation.

Flexible Mounting Options

The 4FT linear design supports several installation configurations:

• Ceiling Mount: Direct installation for industrial ceilings and general areas

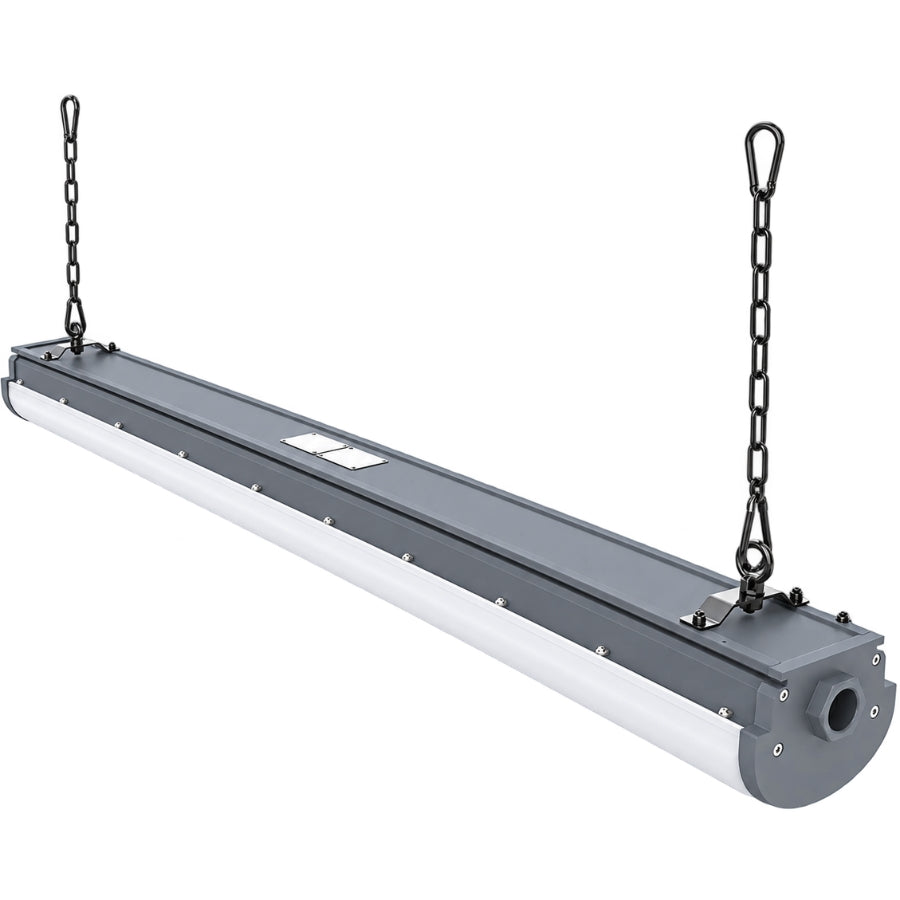

• Pendant Chain Mount: Suspended installation for warehouses, industrial spaces, and high ceilings
• Wall Mount: Suitable for vertical mounting applications
• Pole Mount: Can be used for appropriate pole-mounted installations

This mounting flexibility allows contractors to use the same fixture across different commercial and industrial projects.

High-Efficiency 60W Performance

With an output of 8,400 lumens from only 60W, this fixture provides approximately 140 lumens per watt. It is designed as a high-efficiency alternative to traditional 120-200W metal halide or HPS lighting, helping reduce fixture wattage while providing strong illumination for industrial areas.

Built for Long-Term Operation

The fixture is designed for approximately 50,000 hours of operating life and includes a 5-year limited warranty. Its MEAN WELL HLG LED driver, high-efficiency LED system, aluminum housing, and wide-beam optical design provide a complete solution for demanding commercial and industrial lighting installations.

Bulk & Contractor Buying

The 60W 4FT Explosion Proof Linear Light is suitable for contractors, electrical distributors, facility managers, industrial operators, and commercial lighting projects.

For larger projects, customers can purchase multiple fixtures for:

• Industrial facility upgrades
• Hazardous-location lighting projects
• Warehouse and processing facilities
• Wastewater facilities
• Oil and gas applications
• Petrochemical facilities
• Food and beverage facilities
• Tunnel lighting
• Commercial renovation projects

Contact Energy Efficient LEDs for bulk quantities, contractor pricing, and project orders.

Frequently Asked Questions

1. How many lumens does this 60W LED linear light produce?

The detailed specification sheet lists an output of 8,400 lumens with an efficiency of 140 LM/W.

2. What color temperature is this fixture?

This model is 5000K, providing bright white illumination suitable for industrial and commercial environments.

3. What voltage does the fixture support?

It operates on 120-277V AC, making it suitable for a wide range of commercial and industrial electrical systems.

4. What hazardous-location classification does it have?

The supplied specification identifies it for Class I, Division 2, Groups A, B, C and D applications.

5. Is this fixture suitable for wet locations?

Yes. The supplied specification lists the fixture as IP68 rated and suitable for damp and wet locations.

6. What is the beam angle?

The fixture has a 120° average beam angle, providing broad-area illumination.

7. How long is the fixture?

The fixture is approximately 4 feet long, with a listed length of approximately 48.4 inches.

8. What is the expected operating life?

The fixture is rated for approximately 50,000 hours of operating life.

9. What LED driver is used?

The fixture uses a MEAN WELL HLG LED driver.

10. What mounting options are available?

The fixture supports ceiling, pendant chain, wall, and pole mounting configurations.

11. Can this replace metal halide or HPS lighting?

Yes. The specification lists it as an equivalent replacement for approximately 120-200W MH/HPS fixtures.

12. Is the fixture UL listed?

Yes. The supplied specification lists UL, CUL, and DLC certifications/listings.

13. What is the operating temperature range?

The detailed specification lists an operating temperature range of -40°C to +55°C.

14. What type of housing does it use?

It uses a heavy-duty 6063 die-cast aluminum alloy housing with a powder-coated finish.

15. Does it come with a warranty?

Yes. The fixture includes a 5-year limited warranty. Actual performance may vary depending on the end-user environment and application.
