Description

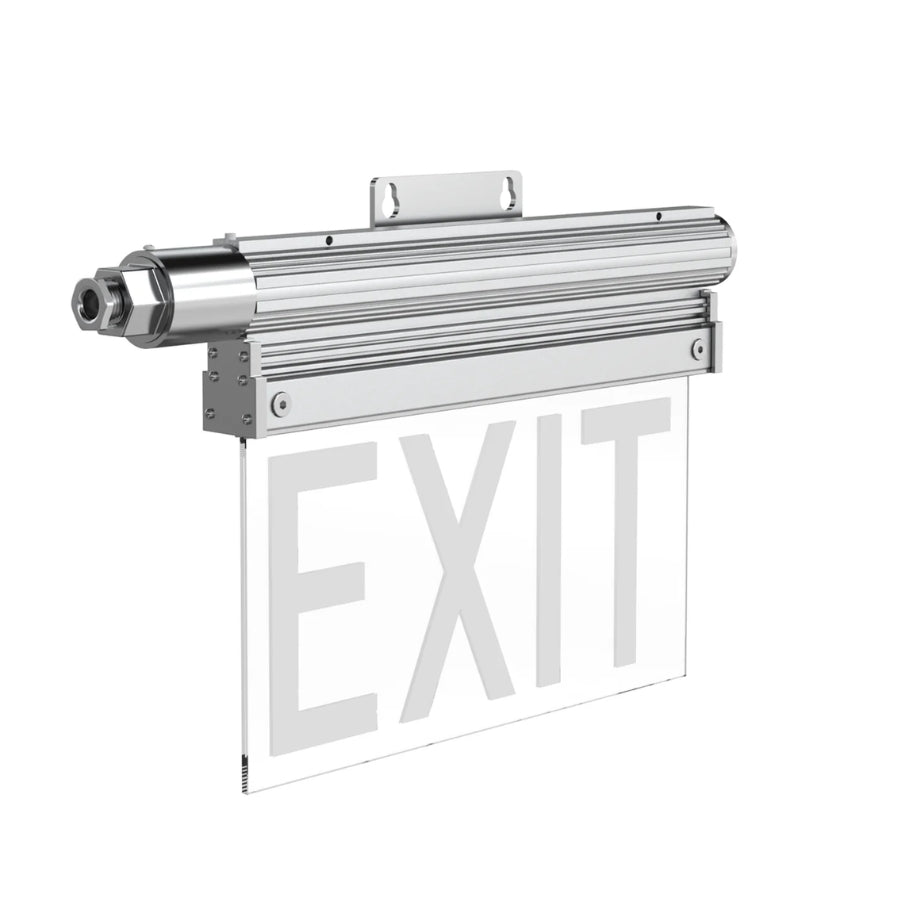

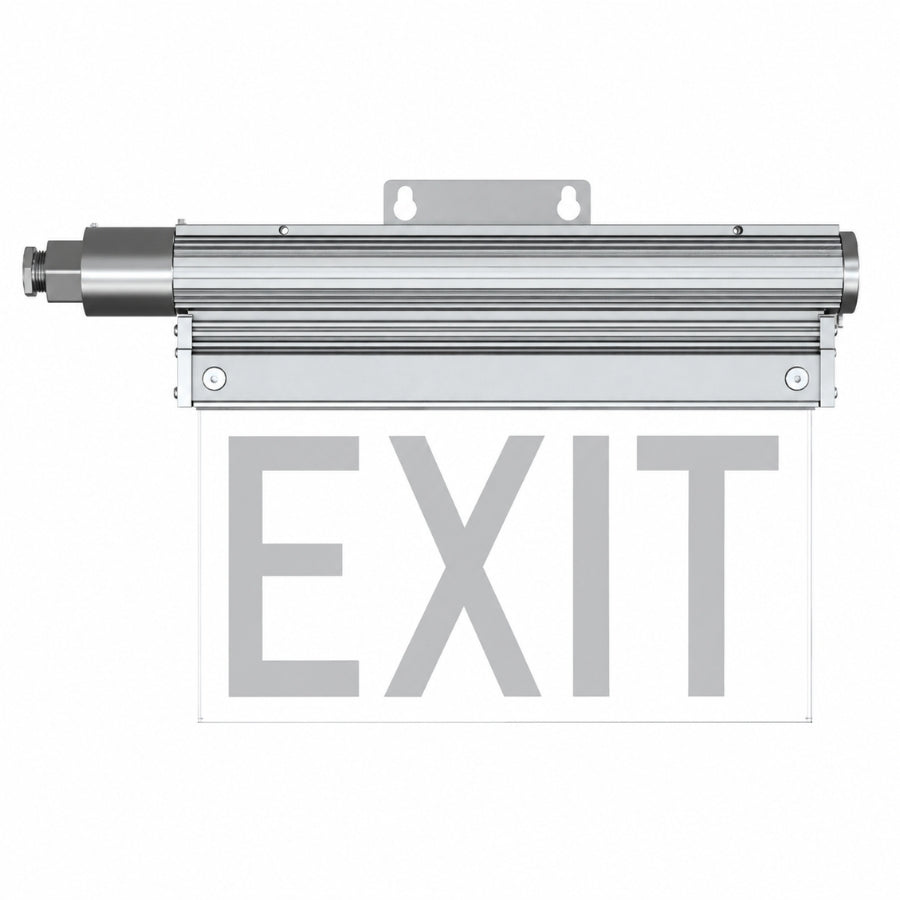

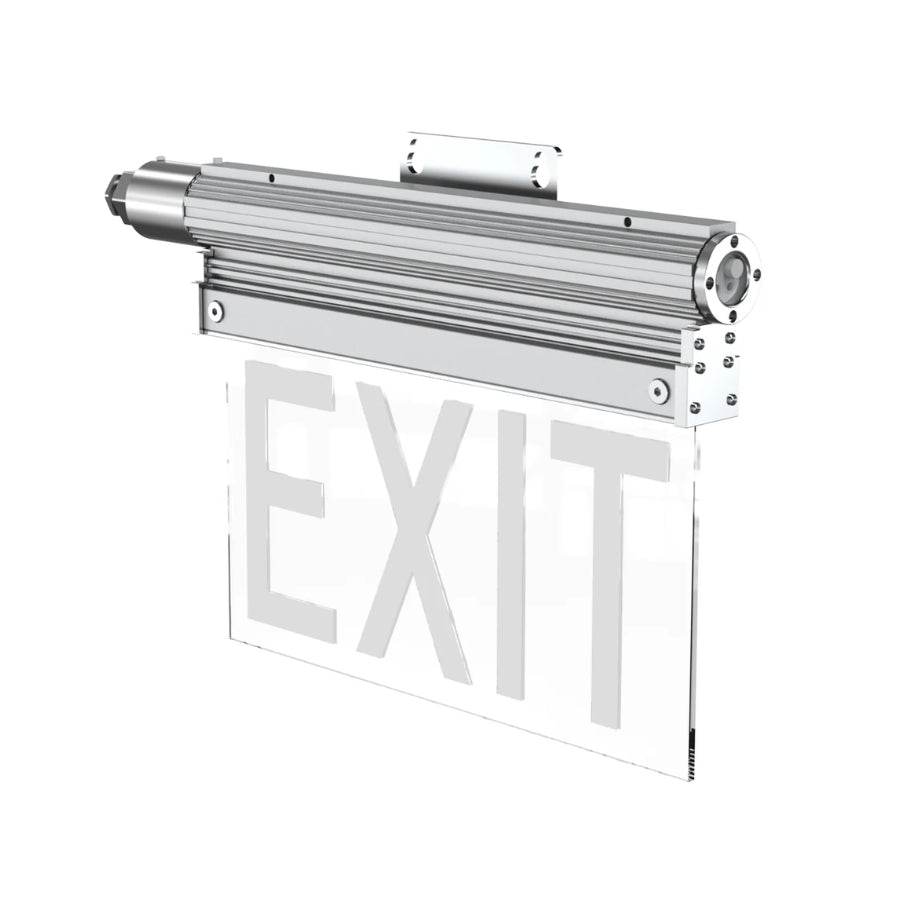

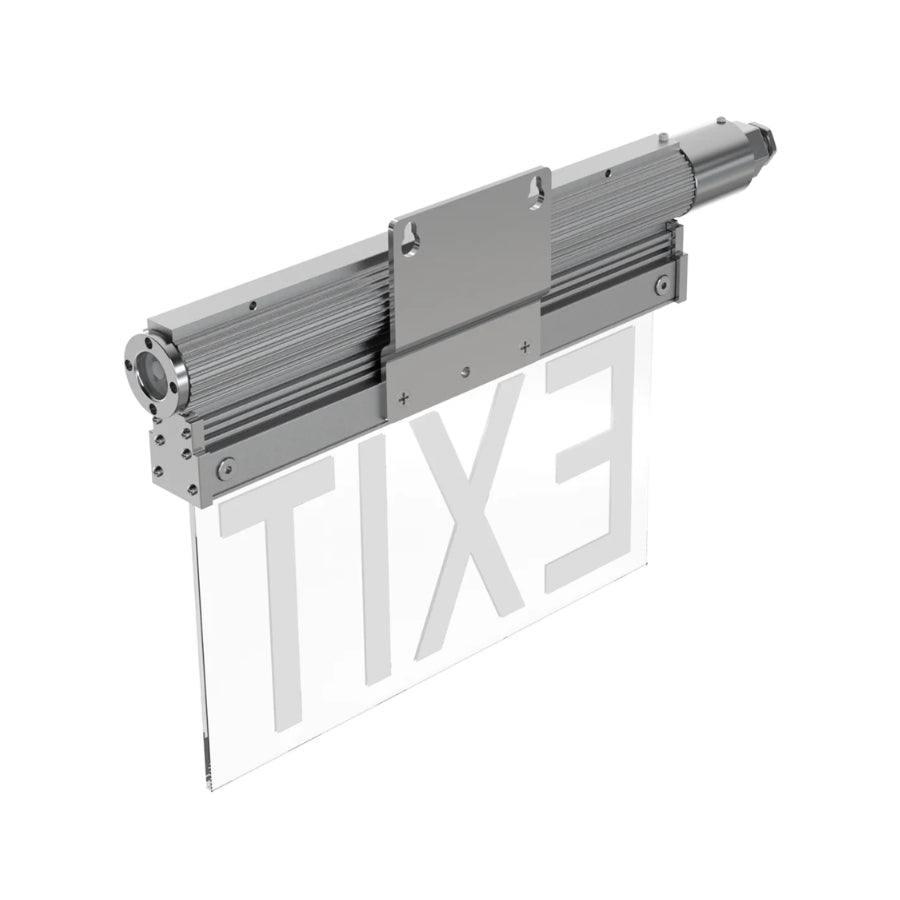

The 5W Explosion Proof LED Exit Sign is designed for hazardous locations where a dependable illuminated exit sign is required. It is rated for Class I Division 2, Groups A, B, C and D and provides 3 hours of emergency operation during a power outage.

The compact housing is made from aluminum with a tempered glass exit sign plate and stainless-steel hardware. Its sealed IP66 construction helps protect the unit from dust and water.

The sign can be configured to remain illuminated during normal power and outages, or to turn on only when the main power is disconnected.

Product Specifications

 Specification  Details
Product Type Explosion Proof LED Exit Sign
Wattage 5W
Input Voltage 120-277V AC
Emergency Backup 3 Hours / 180 Minutes
LED Color Red
Beam Angle 180°
Dimming Non-Dimmable
Housing Aluminum
Exit Sign Plate Tempered Glass
Hardware Stainless Steel
Mounting Sling Stainless Steel
Ingress Protection IP66
Ambient Temperature -20°C to +60°C
Hazardous Location Class I Division 2, Groups A, B, C, D
Additional Classification Class II Division 1, Groups E, F, G; Class II Division 2, Groups F, G; Class III
Certifications UL 844, UL 924, ABS
Mounting Wall, Pipe, Pendant
Emergency Battery Integrated, Non-Replaceable
Product Series V Series

Bulk Buying Options

Need multiple exit signs for a commercial, industrial, or hazardous-location project? Energy Efficient LEDs offers bulk purchasing options for contractors, facility managers, distributors, and project buyers.

Contact our sales team for:

  • Bulk quantity pricing
  • Contractor and project orders
  • Volume purchasing
  • Product availability
  • Shipping information

FAQs

1. What hazardous location rating does this exit sign have?

It is rated Class I Division 2, Groups A, B, C and D. It also has Class II and Class III classifications listed in the product specifications.

2. How long does the emergency backup last?

The integrated emergency backup provides up to 3 hours (180 minutes) of emergency operation.

3. What voltage does the exit sign use?

It operates on 120-277V AC.

4. What color is the LED exit sign?

This model uses Red LED illumination.

5. Is the exit sign dimmable?

No. The model is non-dimmable.

6. Can it operate during a power outage?

Yes. The unit has an integrated emergency backup for up to 3 hours.

7. Can the exit sign remain illuminated during normal power?

Yes. One operating option keeps the EXIT sign illuminated when the main power is on or off. Another option turns the sign on when the main power is disconnected.

8. Can the emergency battery be replaced?

No. The battery is not replaceable. The complete exit sign unit should be replaced when necessary.
