5W Explosion Proof LED Exit Sign, C1D1/C1D2 Hazardous Location, 3-Hour (180-Minute) Emergency Backup, 120-277V AC, 180° Beam, Red/Green LED, UL 844, UL 924 & UL Listed, IP66, Wall Mount
- $1,330.23
$1,463.25- $1,330.23
- Unit price
- per
Bulk Discounts on orders over $500 — Learn More
Energy Efficient LEDs — Bulk Discounts
×Automatic discounts apply at checkout on orders over $500.
SPENDSAVE
$500 – $1,9995%
$2,000 – $3,9996%
$4,000 – $5,9997%
$6,000 – $7,9998%
$8,000 – $9,9999%
$10,000 – $19,99910%
$20,000 – $49,99912%
$50,000+15%
For assistance, complete the form below or give us a call at (404) 397-2785
Subtotal:
$1,330.23

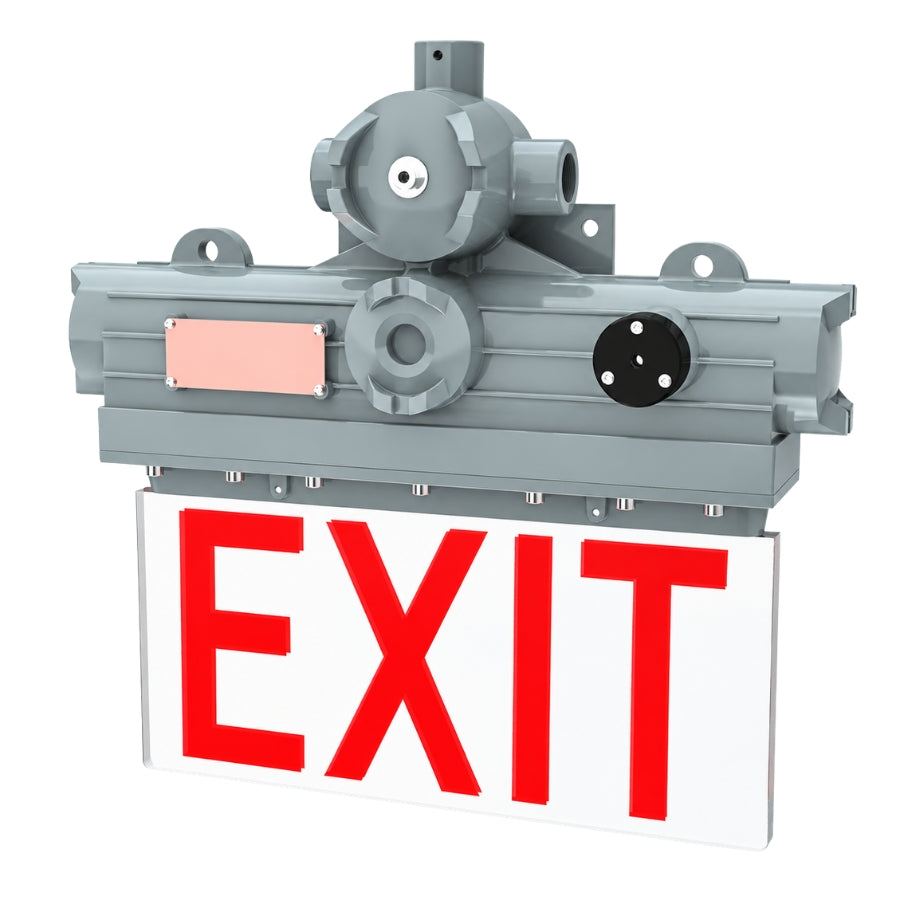

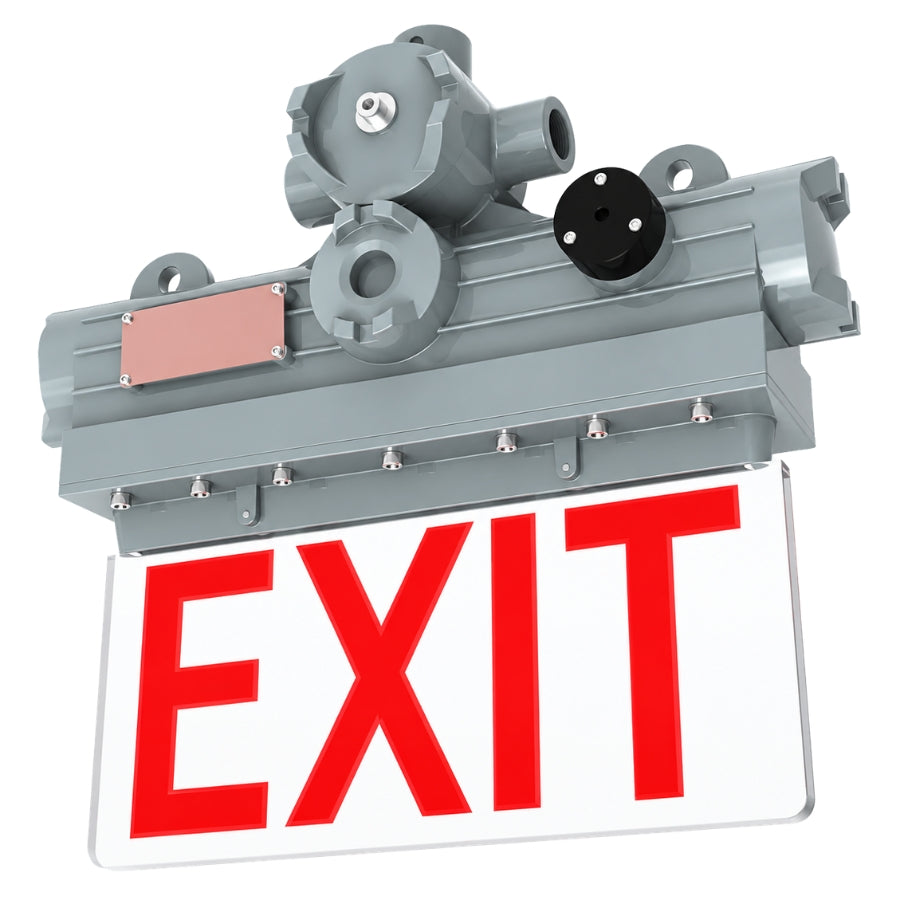

The 5W Explosion Proof LED Exit Sign from Energy Efficient LEDs is designed to clearly mark emergency exits in hazardous and industrial locations. It provides a bright red LED exit indication with up to 3 hours (180 minutes) of emergency backup during a power outage.
The fixture operates on 120-277V AC and uses a wide 180° beam angle for clear visibility. Its tempered glass exit plate, aluminum housing, silicone gasket, and stainless-steel hardware provide durable construction for demanding environments.
The sign is designed for wall mounting and can be installed using 3/4" NPT or M25 conduit hubs.
Product Specifications
| Specification | Details |
|---|---|
| Brand Name | Energy Efficient LEDs |
| Product Type | Explosion Proof LED Exit Sign |
| Model | EX-5W JNRD180 |
| Wattage | 5W |
| Input Voltage | 120-277V AC |
| Emergency Backup | 3 Hours / 180 Minutes |
| LED Color | Red |
| Beam Angle | 180° |
| Mounting | Wall Mount |
| Housing | A356T6 Aluminum |
| Finish | Baked-On Gray Epoxy |
| Exit Sign Plate | Tempered Glass |
| Gasket | One-Piece Silicone |
| Hardware | Stainless Steel |
| Conduit | 3/4" NPT or M25 |
| Protection Rating | IP66 |
| Operating Temperature | 0°C to +40°C |
| Rated Life | Up to 50,000 Hours |
| Hazardous Location | Class I Division 1 & Division 2 |
| Certifications | UL 844, UL 924, UL Listed |
| Warranty | 5 Years |
Emergency Backup
The built-in emergency battery provides up to 3 hours (180 minutes) of operation when normal power is unavailable.
Two operating modes are available:
- Normal + Emergency Mode: The EXIT sign stays illuminated during normal operation and during a power outage.
- Emergency-Only Mode: The EXIT sign turns on when normal power is disconnected.
Durable Construction
The housing is made from A356T6 aluminum with a baked-on gray epoxy finish. A tempered glass exit plate protects the sign, while the silicone gasket helps seal the enclosure.
The IP66-rated construction makes it suitable for demanding indoor and outdoor environments.
Installation
The fixture is designed for wall mounting and includes options for 3/4" NPT or M25 conduit hubs.
It is suitable for industrial facilities, hazardous areas, warehouses, commercial buildings, and other locations requiring emergency exit signage.
Bulk Buying Options
This exit sign is suitable for bulk and project orders.
Bulk purchasing can be useful for:
- Industrial facilities
- Warehouses
- Manufacturing plants
- Power plants
- Chemical facilities
- Commercial buildings
- Marine facilities
- Large construction projects
- Multi-location installations
Contact us for bulk pricing, contractor pricing, and project quantities.
FAQs
1. How long does the emergency backup last?
The emergency battery provides up to 3 hours (180 minutes) of operation.
2. What color is the EXIT sign?
This listing is for the red LED version.
3. Is this exit sign suitable for hazardous locations?
Yes. The supplied specifications identify the product for Class I Division 1 and Class I Division 2 hazardous locations.
4. What voltage does it use?
The fixture operates on 120-277V AC.
5. What is the beam angle?
The exit sign has a 180° beam angle.
6. Can the sign operate only during a power outage?
Yes. The emergency-only operating mode allows the sign to turn on when normal power is disconnected.
7. How is the exit sign mounted?
It is designed for wall mounting and supports 3/4" NPT or M25 conduit.
8. What warranty is included?
The product includes a 5-year warranty.
