Energy Efficient LEDs

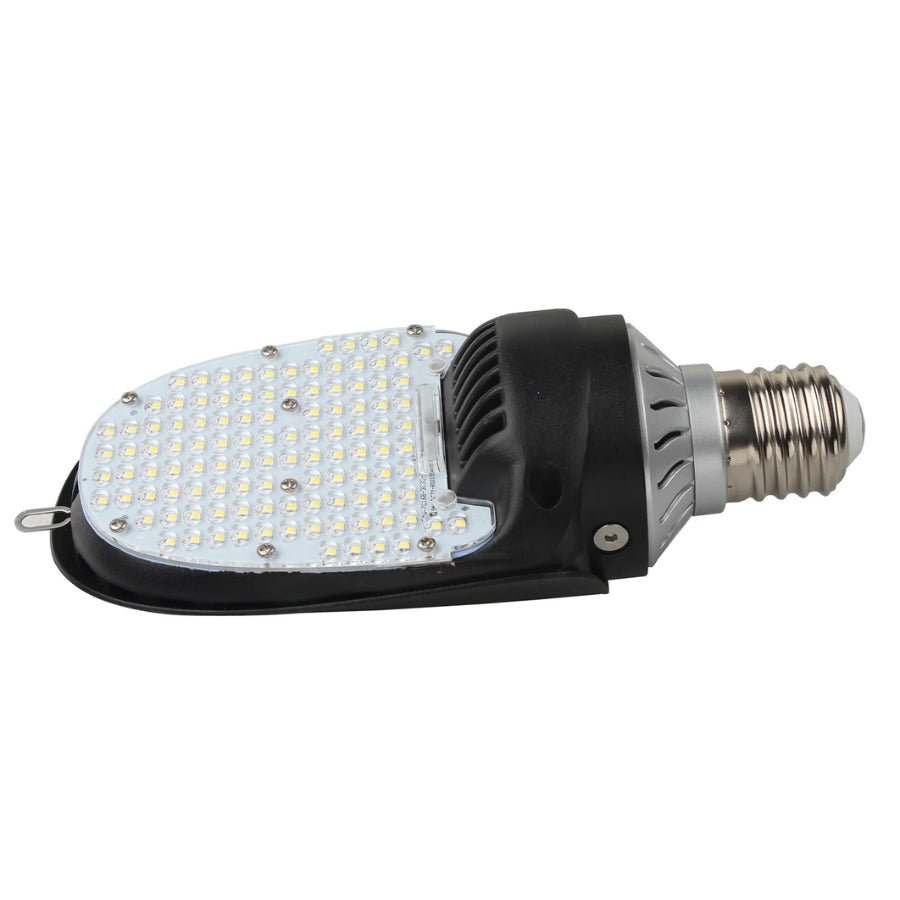

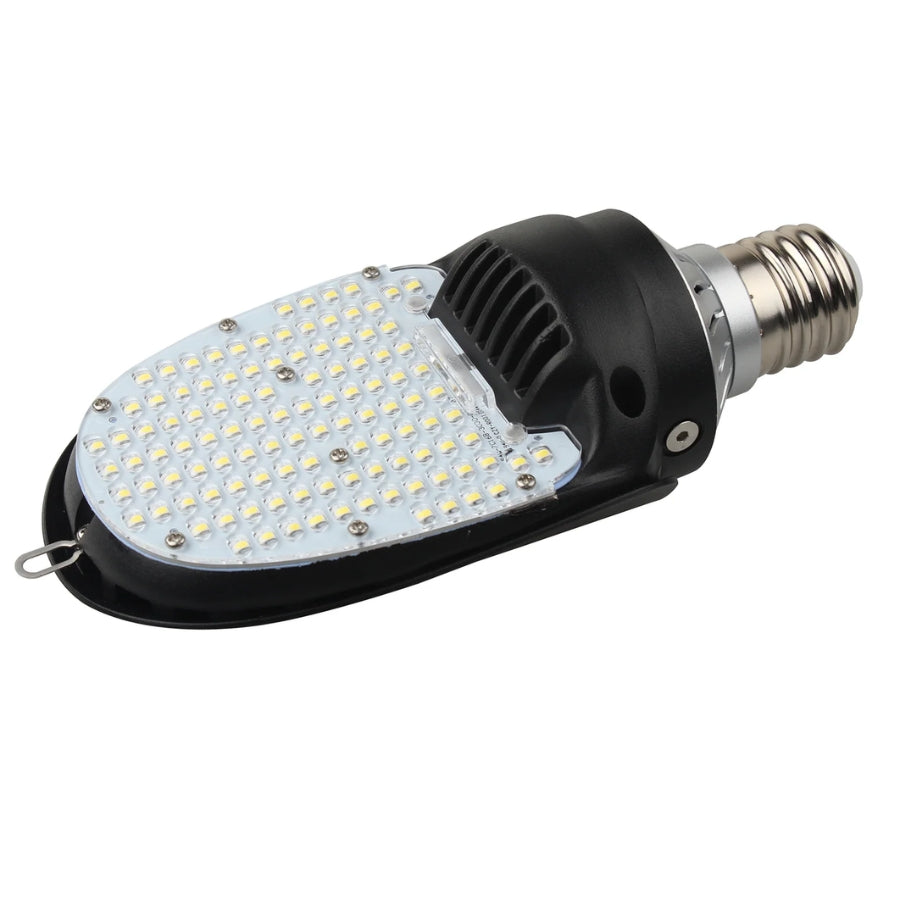

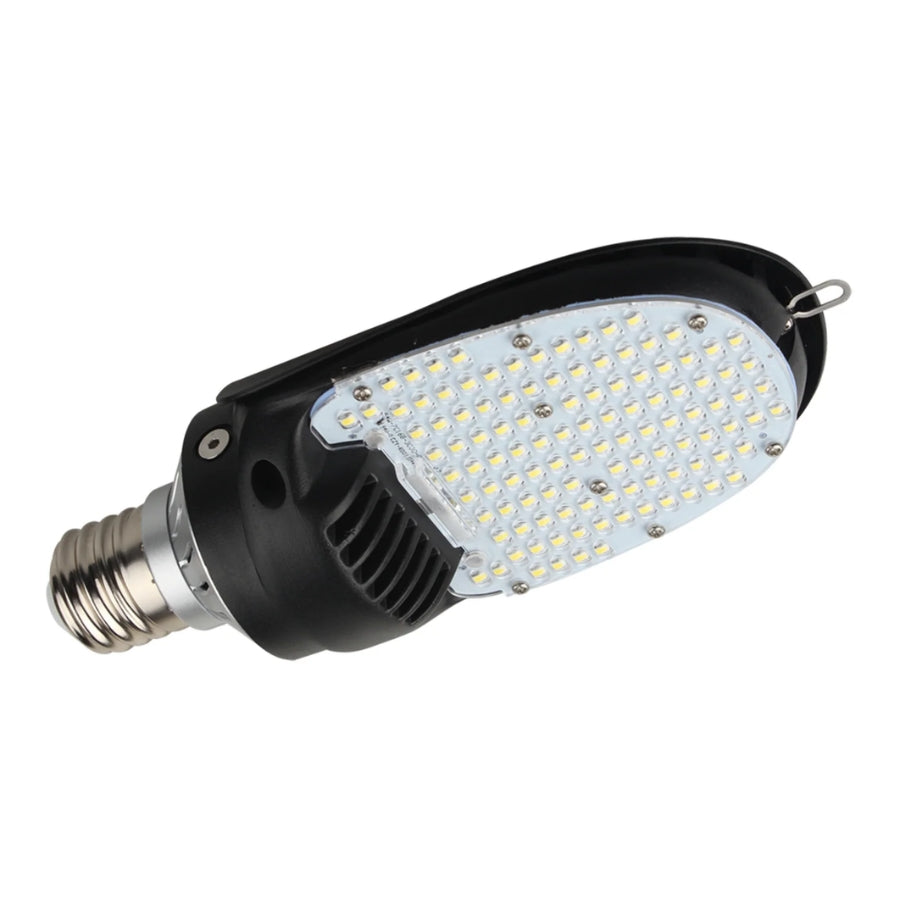

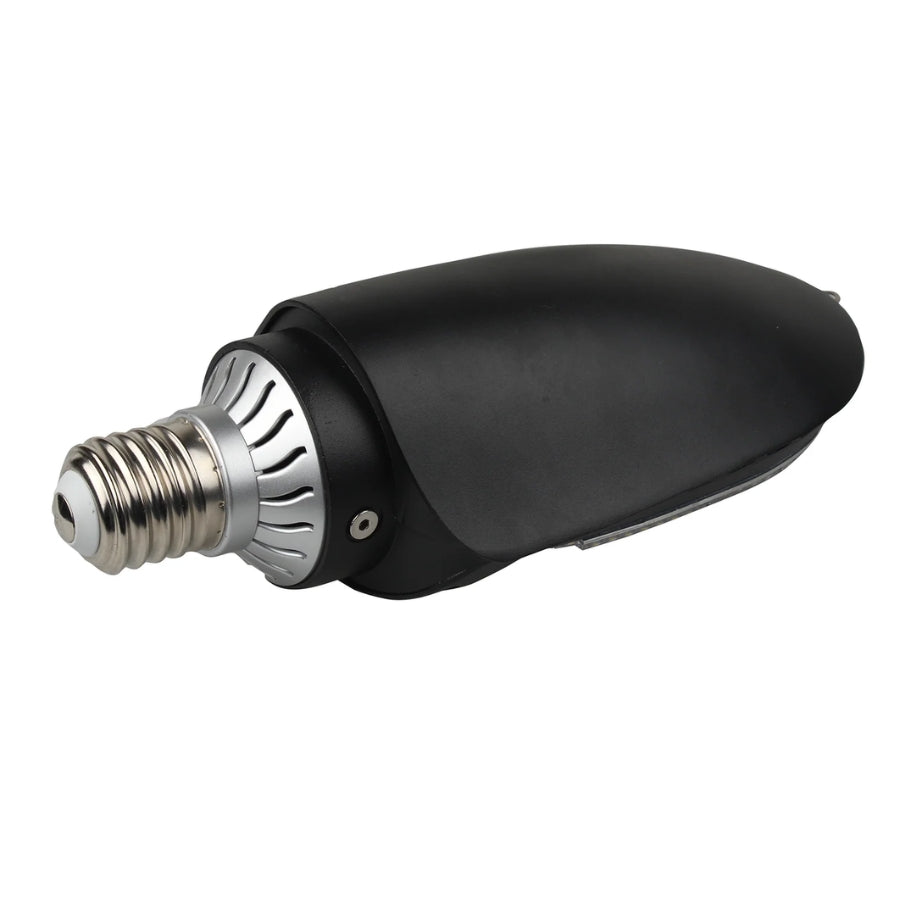

54W E39 LED Retrofit Lamp, 7,020 Lumens, 130 LM/W, 5000K, 120-277V AC, Rotatable E39 Mogul Base, 120° Beam Angle, Built-In Cooling Fan, Die-Cast Aluminum Housing, UL/cUL Listed, DLC Listed, Ballast Bypass, 5-Year Warranty
- $78.47
$86.32- $78.47
- Unit price
- per
Bulk Discounts on orders over $500 — Learn More
Energy Efficient LEDs — Bulk Discounts
×Automatic discounts apply at checkout on orders over $500.
SPENDSAVE
$500 – $1,9995%
$2,000 – $3,9996%
$4,000 – $5,9997%
$6,000 – $7,9998%
$8,000 – $9,9999%
$10,000 – $19,99910%
$20,000 – $49,99912%
$50,000+15%
For assistance, complete the form below or give us a call at (404) 397-2785
Subtotal:
$78.47
Product Overview
Upgrade traditional shoebox and outdoor area-light fixtures with this 54W E39 LED Retrofit Lamp. Producing 7,020 lumens at 130 LM/W, this commercial LED retrofit delivers bright 5000K illumination while providing a practical replacement for compatible 100W-150W metal halide or HPS lamps.
The lamp features a rotatable E39 Mogul base, allowing the LED head to be adjusted to the desired lighting direction after installation. A built-in cooling fan and high-thermal-conductivity die-cast aluminum housing help manage heat during operation, while the internal isolated driver provides regulated 120-277V AC operation.
Designed for ballast-bypass installations, this retrofit lamp provides a direct LED upgrade path for compatible shoebox, pole-mounted, arm-mounted, area, and roadway luminaires.
Key Features
- 54W LED Retrofit Lamp: Produces 7,020 lumens at 130 LM/W.
- 5000K Cool White: Provides bright, clear outdoor illumination.
- 120° Beam Angle: Provides broad, uniform light distribution.
- Rotatable E39 Mogul Base: Allows the lamp to be positioned for the desired light direction.
- Built-In Cooling Fan: Supports active heat dissipation during operation.
- Die-Cast Aluminum Housing: Provides high thermal conductivity and durable construction.
- High-Brightness Lumileds LEDs: Designed for reliable commercial lighting performance.
- Internal Isolated Driver: Provides regulated operation with reduced flicker.
- Ballast Bypass: Designed for installation after removing or bypassing the existing ballast.
- 120-277V AC: Supports a wide commercial voltage range.
- Safety Hanging Chain: Provides additional support during installation.
- UL/cUL & DLC Listed: Listed according to the manufacturer's specifications.
- 5-Year Limited Warranty: Manufacturer-backed limited warranty.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | E39 LED Retrofit Lamp |
| Wattage | 54W |
| Lumens | 7,020 LM |
| Efficiency | 130 LM/W |
| Color Temperature | 3000K / 4000K / 5000K |
| Listed Title Configuration | 5000K |
| CRI | >72 |
| Input Voltage | 120-277V AC |
| Input Current | 0.45A @ 120V / 0.19A @ 277V |
| Power Factor | >0.95 |
| Beam Angle | 120° |
| Average Beam Angle | 120° |
| LED Chips | High-Brightness Lumileds |
| LED Driver | UL Listed Driver |
| Mounting Base | E39 Mogul |
| Mounting Adjustment | Rotatable |
| Thermal Management | Built-In Cooling Fan |
| Housing | Die-Cast Aluminum |
| Lens | PC Lens |
| Working Temperature | -20°C to +45°C |
| Junction Temperature | <75°C |
| Fixture Efficiency | ≥90% |
| Certifications | UL, cUL, DLC |
| Installation Type | Ballast Bypass |
| Equivalent HID | 100W-150W MH/HPS |
| Location Rating | Suitable for Damp Locations |
| Warranty | 5-Year Limited Warranty |
7,020-Lumen LED Performance
The 54W version produces 7,020 lumens at 130 LM/W, providing a high-efficiency replacement for compatible conventional HID lamps.
The manufacturer specifies this version as an equivalent replacement for approximately 100W-150W metal halide or HPS lighting, depending on the existing fixture and application.
Rotatable E39 Mogul Base
The E39 Mogul base is designed for compatible traditional shoebox and area-light fixtures. After installation, the LED lamp can be rotated to help position the light distribution according to the fixture orientation.
The socket includes a locking mechanism that must be properly reset after the lamp has been adjusted to its desired position.
Built-In Cooling Fan
The retrofit lamp uses an integrated cooling fan together with its die-cast aluminum housing to improve heat dissipation.
The high-thermal-conductivity aluminum body helps transfer heat away from the LED assembly, while the internal fan supports active cooling during operation.
Wide 120° Light Distribution
The 120° beam angle provides broad light coverage for outdoor area and roadway applications. The optical system uses high-transmission PC optics to create an even light distribution across the illuminated area.
5000K Cool-White Lighting
The listed 54W configuration uses 5000K cool-white illumination, providing bright outdoor lighting suitable for commercial area, pathway, parking, and roadway applications.
The product family is also specified with 3000K, 4000K, and 5000K color-temperature options.
Ballast Bypass Installation
This LED retrofit lamp is designed for ballast-bypass installation. Before installation, the existing ballast, capacitor, and ignitor components associated with the conventional HID system must be removed or bypassed as applicable.
The LED lamp connects directly to the appropriate AC supply after the existing ballast system has been properly bypassed.
Suitable Applications
This E39 LED retrofit lamp is suitable for compatible:
- Shoebox fixtures
- Area lighting
- Parking lot lighting
- Pathway lighting
- Garden lighting
- Outdoor pole-mounted fixtures
- Arm-mounted luminaires
- Roadway luminaires
- Commercial outdoor lighting
Installation Instructions
- Turn off power before installation.
- Confirm that the input voltage and frequency are within the specified range.
- Remove or bypass the existing ballast before installing the LED lamp.
- Push the socket switch and twist the LED retrofit lamp into the compatible lamp holder.
- Rotate the lamp to the desired lighting angle.
- Release and reset the socket locking catch to secure the lamp.
- Verify that all wiring connections are properly insulated.
- Turn power back on and test the lamp after installation.
Important: This product is intended for professional installation. Do not use with dimmers. The lamp is suitable for damp locations. Always verify fixture compatibility, wiring, and electrical requirements before installation.
Frequently Asked Questions
How many lumens does the 54W E39 LED retrofit produce?
The 54W version produces 7,020 lumens at 130 LM/W.
What HID lamp does it replace?
The manufacturer specifies the 54W version as a replacement for approximately 100W-150W metal halide or HPS lighting.
What color temperature does this lamp use?
The listed configuration uses 5000K. The product family is also specified in 3000K and 4000K options.
Does it use an E39 Mogul base?
Yes. The lamp uses a rotatable E39 Mogul base for compatible fixtures.
Is the LED lamp rotatable?
Yes. The lamp can be adjusted after installation to help achieve the desired light direction. The socket locking catch must be reset after adjustment.
Does it require a ballast?
No. The installation requires the existing ballast to be removed or bypassed before the LED lamp is connected to the AC supply.
Does it have active cooling?
Yes. The lamp includes a built-in cooling fan and a die-cast aluminum housing designed to support heat dissipation.
What voltage does it support?
The lamp operates on 120-277V AC.
Is the lamp dimmable?
No. The manufacturer's installation instructions state not to use this lamp with dimmers.
Is it suitable for outdoor use?
It is specified as suitable for damp locations and is designed for compatible outdoor area, pathway, garden, pole-mounted, arm-mounted, and roadway luminaires.
What certifications does it have?
The specification sheet lists UL, cUL, and DLC.
