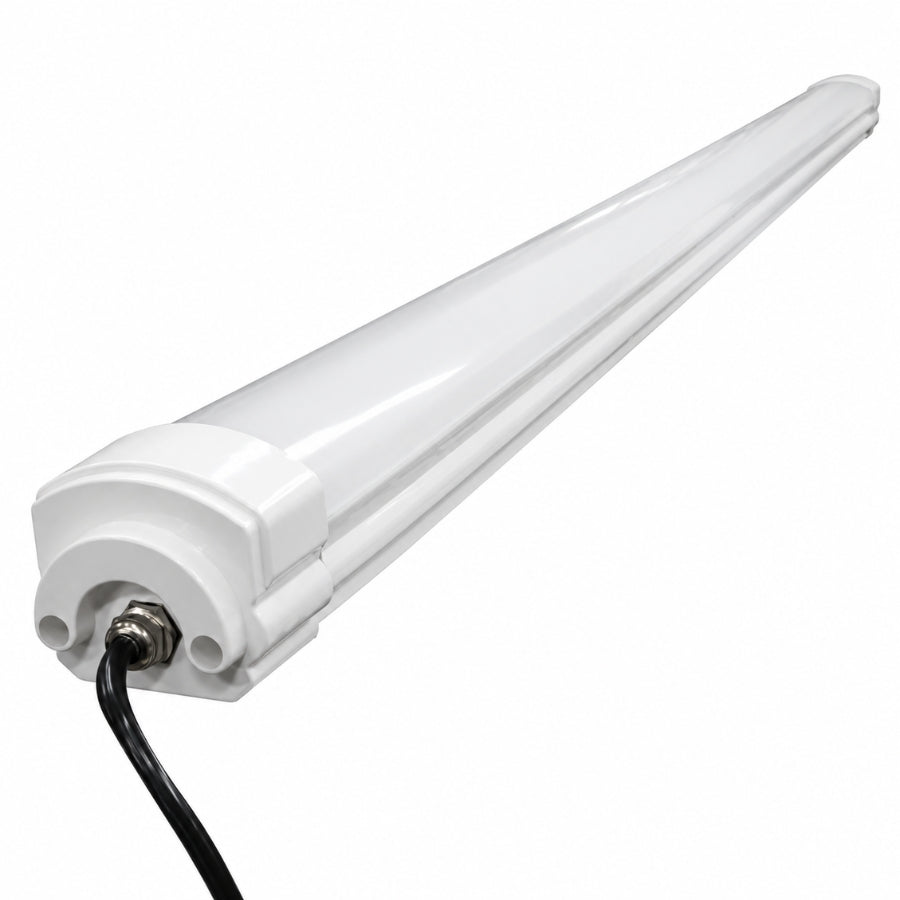

40W 4FT LED Tri-Proof Light, 5,200 Lumens, 130 LM/W, 3000K/4000K/5000K Selectable, 100-277V AC, 110° Beam Angle, IP65 Waterproof, IK10 Impact Resistant, ETL/cETL & DLC Listed, Linkable Up to 10 Fixtures, Wall/Ceiling Mount, 5-Year Warranty

Product Overview

The Energy Efficient LEDs 40W 4FT LED Tri-Proof Light is designed for commercial, industrial, and utility spaces that require reliable illumination and durable protection against demanding environmental conditions. It produces 5,200 lumens at 130 lumens per watt and features selectable 3000K, 4000K, and 5000K color temperatures.

Its IP65-rated construction provides protection against water and dust, while the IK10 impact-resistant design helps the fixture withstand physical impacts. The fixture also features a wide 110° beam angle for broad light distribution.

Male-female connectors allow up to 10 fixtures to be linked together, making it practical for continuous lighting installations in warehouses, production areas, corridors, parking areas, and other large spaces.

Key Specifications

High-Efficiency 40W Performance

The 40W fixture delivers 5,200 lumens at 130 LM/W, providing strong illumination while maintaining an efficient power profile.

It is designed as an LED replacement for approximately 110W-150W metal halide/HPS lighting, making it suitable for projects where efficient commercial lighting is required.

3CCT Selectable Lighting

The integrated selectable CCT design provides three color temperature choices:

• 3000K – Warm white
• 4000K – Neutral white
• 5000K – Daylight white

The CCT can be selected according to the lighting requirements of the installation.

IP65 Waterproof & Dust-Proof Protection

The IP65-rated housing is designed to protect the fixture against dust and water exposure.

This makes the light suitable for demanding environments where fixtures may encounter moisture, airborne dust, or routine cleaning conditions.

IK10 Impact Resistance

The IK10 impact rating provides enhanced mechanical protection against physical impacts.

This makes the fixture well suited for industrial and commercial environments where lighting equipment may be exposed to accidental contact, equipment movement, or other physical stresses.

Wide 110° Beam Angle

The optical system uses high-brightness Lumileds LED chips and high-quality PC optics.

With a nominal 110° beam angle and approximately 113° average beam angle, the fixture distributes light across a broad area for general illumination.

Linkable Design for Continuous Lighting

The fixture includes male-female connectors that allow multiple units to be connected together.

Up to 10 fixtures can be linked in a series, providing a convenient solution for long lighting runs and large spaces.

The maximum wattage connected in series is 540W.

This linkable design can help create a continuous and organized lighting layout while reducing the need for separate wiring between every fixture.

Wall & Ceiling Mounting

The fixture supports both wall and ceiling installation using quick-mount clips.

This flexible mounting design allows the same fixture to be used in different orientations depending on the application.

Installation

1. Turn off the power before installation.
2. Drill approximately 6mm holes into the mounting surface.
3. Insert the 6mm expansion pipes.
4. Secure the mounting bracket using M4 screws.
5. Connect the wires in the outlet box.
6. Tighten the mounting screws securely with a screwdriver.
7. Turn the power back on and test the fixture.

Installation and maintenance should be performed by a qualified electrician or professional.

Durable Tri-Proof Construction

The fixture uses extruded opal prismatic material with UV protection and white PC end caps.

The combination of environmental protection and impact resistance makes this fixture appropriate for applications where standard indoor fixtures may not provide sufficient durability.

Optional Emergency Battery Backup

For projects requiring emergency lighting capability, an optional emergency battery backup is available.

Optional Accessory: LSED20W Emergency Battery Backup

Recommended Applications

The 4FT Tri-Proof LED Light is suitable for:

• Warehouses
• Factories
• Workshops
• Production lines
• Parking areas
• Airports
• Train stations
• Subway stations
• Tunnels
• Basements
• Storage facilities
• Industrial buildings
• Utility areas
• Commercial facilities
• Transportation facilities
• General-purpose work areas

Long Operating Life

The fixture is rated for approximately 50,000 hours of operating life, helping reduce the frequency of fixture replacement in commercial and industrial installations.

Its durable construction and LED design make it suitable for projects requiring dependable long-term lighting.

Certifications & Warranty

The fixture is ETL, cETL, and DLC Listed and comes with a 5-year limited warranty.

Actual performance may vary depending on the end-user environment, installation conditions, and application.

Safety & Maintenance

• Installation and maintenance must be performed by qualified electricians or professionals.
• Disconnect power before installation or servicing.
• Do not cover the fixture with thermal insulating material.
• Keep the fixture clean and dry.
• Keep the fixture away from corrosive substances.
• Operating temperature: -4°F to 104°F.
• Storage temperature: -22°F to 140°F.

Bulk Buying for Commercial Projects

The Energy Efficient LEDs 4FT Tri-Proof Light is suitable for contractors, electricians, facility managers, warehouses, factories, and commercial construction projects requiring multiple fixtures.

Its linkable design can simplify installations where several fixtures need to be arranged in continuous runs.

For larger projects and volume orders, contact Energy Efficient LEDs for bulk pricing and project support.

Frequently Asked Questions

How many lumens does the 40W fixture produce?

The fixture produces 5,200 lumens.

What color temperatures are available?

The fixture offers selectable 3000K, 4000K, and 5000K color temperatures.

What voltage does it support?

It operates on 100-277V AC.

Is the fixture waterproof?

The fixture has an IP65 rating, providing protection against dust and water exposure.

What does IK10 mean?

IK10 indicates a high level of impact resistance, making the fixture suitable for environments where lighting equipment may be exposed to physical impacts.

Can multiple fixtures be connected together?

Yes. The fixture uses male-female connectors and supports linking up to 10 fixtures together.

What is the maximum wattage for a series connection?

The installation instructions specify a maximum series wattage of 540W.

Can it be wall mounted?

Yes. The fixture supports both wall and ceiling mounting.

Does it have an emergency battery option?

Yes. An optional LSED20W emergency battery backup is available.

How long is the fixture rated to last?

The LED light is rated for approximately 50,000 hours.

What certifications does it have?

The fixture is ETL, cETL, and DLC Listed.

What is the warranty?

It includes a 5-year limited warranty.
