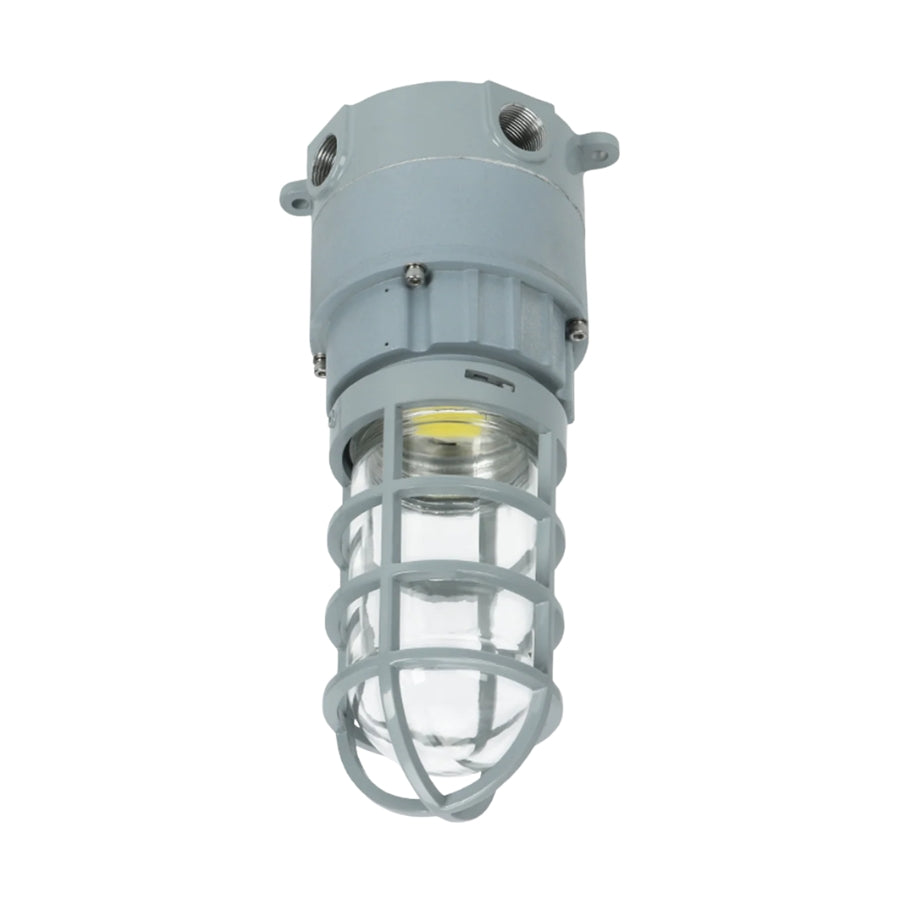

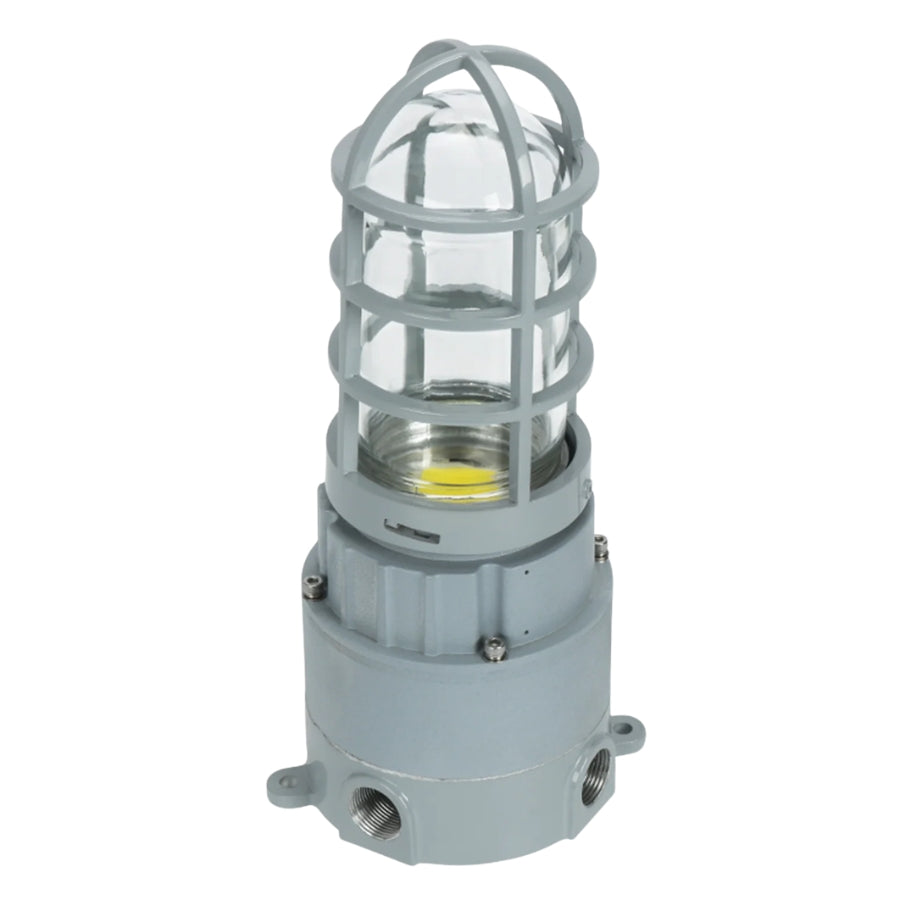

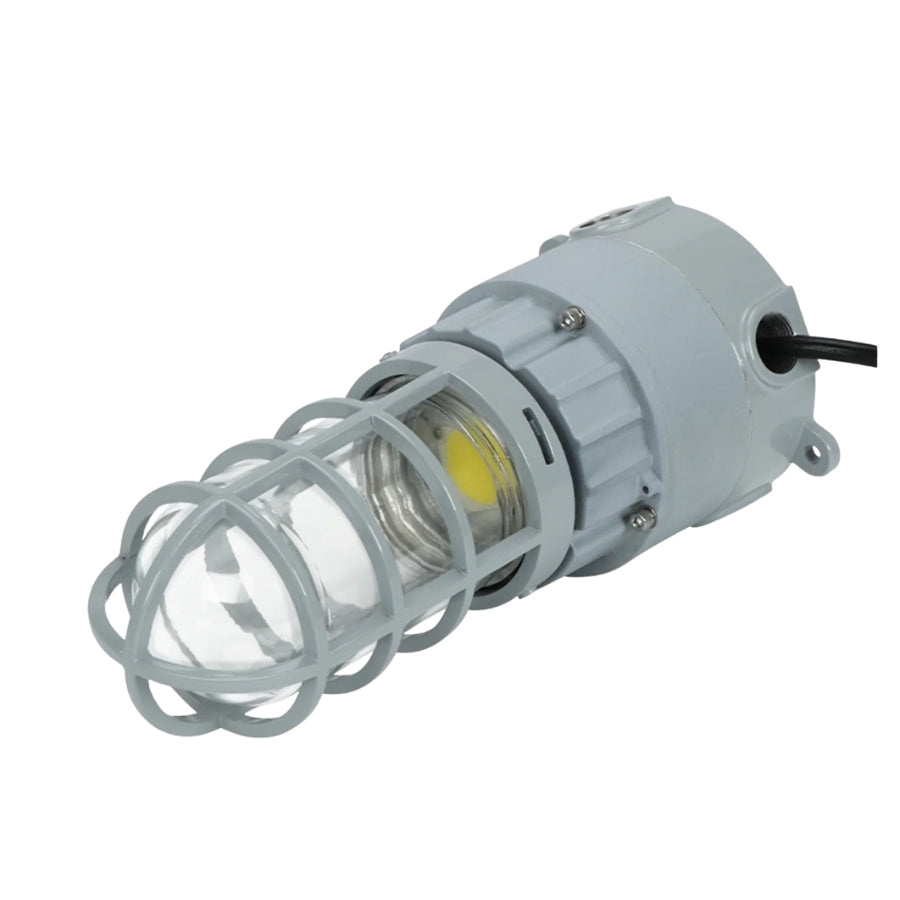

27W LED Explosion Proof Jelly Jar Light, Class I Division 2 Hazardous Location, 2,700 Lumens, 5000K, 120-277V AC, 0-10V Dimmable, Industrial Cage Fixture, Surface Mount

The 27W LED Explosion Proof Jelly Jar Light from Energy Efficient LEDs is designed for industrial and hazardous-location applications that require reliable illumination in demanding environments. It delivers 2,700 lumens of 5000K light while using 27 watts of power.

The fixture features a durable copper-free aluminum housing, tempered glass diffuser, and protective metal guard. Its compact design works well in industrial areas where moisture, dust, vibration, and physical impact may be present.

With 120-277V AC input and optional 0-10V dimming, the light can be used with a variety of commercial electrical systems and control configurations. Multiple mounting options provide flexibility for different installation requirements.

Key Features

• 27W LED hazardous-location light
• 2,700 lumens
• 5000K color temperature
• 100 lm/W efficiency
• 120-277V AC input
• 0-10V dimming available
• 97° light distribution
• Class I Division 2, Groups A, B, C & D
• Copper-free aluminum housing
• Tempered glass diffuser
• Protective metal guard included
• IP66 protection
• IK08 impact rating
• Ceiling, pole, pendant, and wall mounting
• 50-100W MH/HPS equivalent
• 5-year standard warranty

Built for Industrial Environments

The copper-free aluminum housing provides a durable enclosure for demanding installations, while the tempered glass diffuser offers resistance to impact and thermal shock. The protective guard adds additional protection around the lens.

The fixture is designed for environments exposed to conditions such as moisture, dirt, dust, corrosion, and vibration.

Flexible Installation

The fixture supports several mounting methods, making it suitable for different industrial layouts:

• Ceiling Mount
• Wall Mount
• Pole Mount
• Pendant Mount

The supplied model Ex-27W-OY50CM1 is configured for ceiling mounting.

Hazardous Location Ratings

According to the supplied product documentation, the fixture is rated for:

• Class I Division 2, Groups A, B, C & D
• Class II Division 1, Groups E, F & G
• Class II Division 2, Groups F & G
• Class III
• Class I, Zone 2, Group IIC
• Zone 20, 21 & 22

Suitable Applications

• Power Plants
• Chemical Processing Facilities
• Petrochemical Facilities
• Paper Mills
• Wastewater Treatment Plants
• Heavy Industrial Facilities
• Storage Facilities
• Loading Docks
• Offshore Environments
• Metallurgical Facilities
• Coal Mines
• Food Processing Facilities
• Breweries
• Industrial Walkways
• Hazardous Work Areas

Certifications & Protection

• UL 1598 — Wet Locations
• UL 1598A — Marine Outside Type
• UL 8750 — LED Safety Standard
• UL 924 — Emergency Lighting Standard
• CSA Certificate: 80070037
• ABS — American Bureau of Shipping
• IP66
• IK08

Technical Specifications

FAQs

1. What is the wattage of this fixture?

The fixture uses 27W of power.

2. How many lumens does it produce?

It produces 2,700 lumens.

3. What color temperature is available?

This model uses 5000K.

4. Is the light dimmable?

Yes. 0-10V dimming is available.

5. What voltage does it operate on?

The fixture operates on 120-277V AC.

6. Where can it be mounted?

It supports ceiling, wall, pole, and pendant mounting. The supplied model is configured for ceiling mounting.

7. Is it suitable for outdoor or wet locations?

The supplied documentation lists UL 1598 wet-location compliance and an IP66 rating.

8. What warranty is included?

The fixture comes with a 5-year standard warranty.
