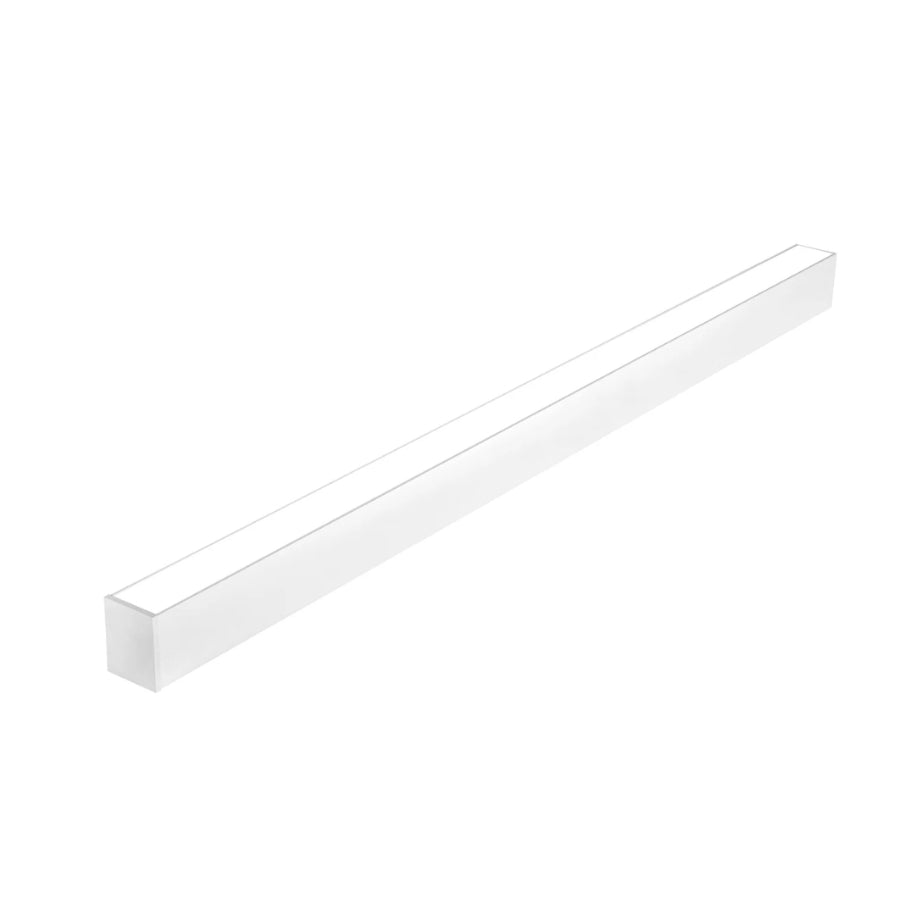

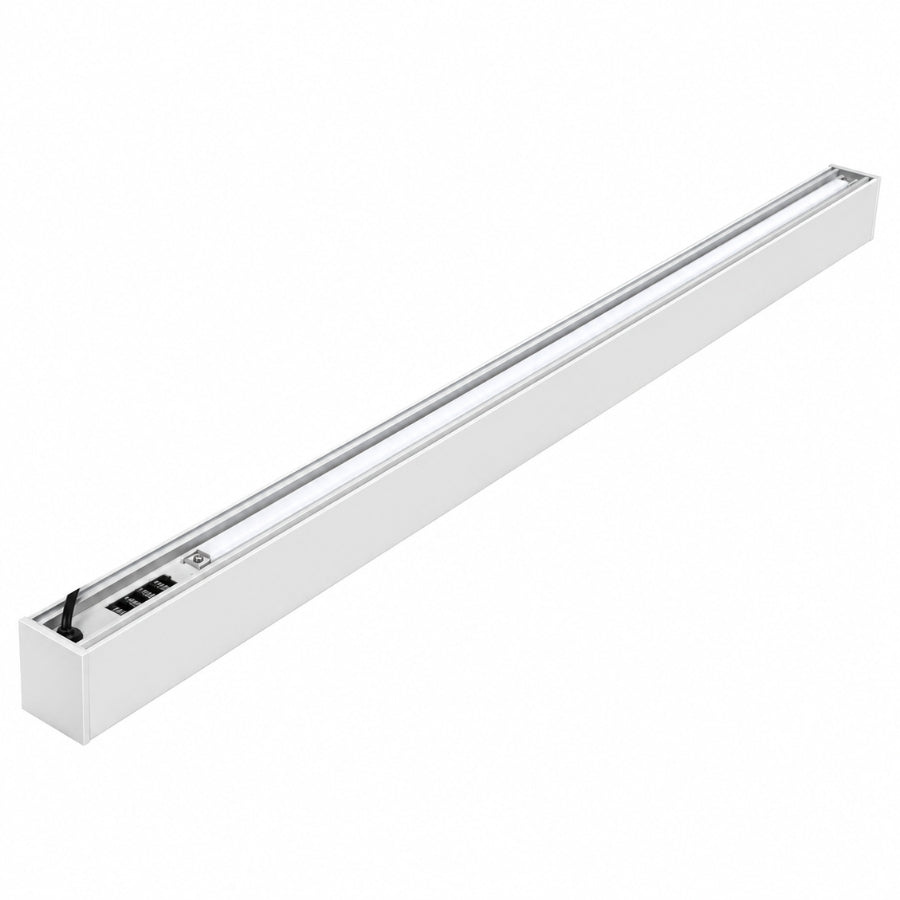

20W/30W/40W/50W/60W 4FT LED Architectural Linear Light, Up to 7,800 Lumens, 130 LM/W, 3000K/3500K/4000K/5000K/6500K Selectable, 120-277V AC, 0-10V Dimmable, 120° Beam, Seamless Linkable, Pendant/Surface Mount, White

Product Overview

The 4FT LED Architectural Linear Light in White is designed for modern commercial, architectural, and interior spaces that require clean, efficient, and flexible lighting. Its slim linear design and white finish blend easily with bright ceilings and contemporary interiors.

With 20W/30W/40W/50W/60W selectable wattage, the fixture can be adjusted to match different lighting requirements. It also features 5CCT selectable color temperature, allowing you to choose from 3000K to 6500K.

The linkable design allows multiple fixtures to be connected for continuous or custom linear lighting arrangements, while pendant and surface mounting provide installation flexibility.

Specifications

Selectable Wattage

Choose from 20W, 30W, 40W, 50W, or 60W depending on the required light level.

This adjustable power design allows one fixture type to accommodate different room sizes, ceiling heights, and illumination requirements.

At the maximum setting, the fixture delivers up to 7,800 lumens with up to 130 LM/W efficacy.

5CCT Selectable

The fixture offers five color temperature options:

• 3000K – Warm white
• 3500K – Warm-neutral white
• 4000K – Neutral white
• 5000K – Cool white
• 6500K – Daylight white

This flexibility makes it easier to match the lighting appearance to different commercial and architectural environments.

Direct & Indirect Lighting

The architectural linear design supports both direct downward lighting and indirect upward lighting.

Downward illumination provides functional light for the occupied space, while upward illumination can create a softer ambient effect on the ceiling.

Seamless Linkable Design

Multiple fixtures can be connected to create longer continuous lighting runs. The linkable system is suitable for both simple straight installations and custom architectural layouts.

Compatible connectors can be used to create:

• Straight linear runs
• L-shaped layouts
• T-shaped layouts
• Cross-shaped configurations

This makes the fixture suitable for projects that require continuous or geometric linear lighting.

Pendant or Surface Mounting

The fixture supports both pendant/suspension mounting and surface mounting.

Pendant installation provides a modern suspended appearance, while surface mounting places the fixture closer to the ceiling for a clean and practical installation.

0-10V Dimming

Built-in 0-10V dimming provides compatibility with suitable lighting control systems. Brightness can be adjusted to meet different occupancy, task, or ambient lighting requirements.

120° Wide Beam

The 120° beam angle provides broad downward light distribution, helping cover a larger area with consistent illumination.

This makes the fixture suitable for open commercial interiors, workspaces, retail areas, and other general lighting applications.

Clean White Finish

The white finish provides a bright, neutral appearance that works well with white ceilings and modern interior designs.

It is especially suitable for spaces where the lighting fixture should blend naturally into the ceiling rather than create a strong visual contrast.

Recommended Applications

The 4FT White LED Architectural Linear Light is suitable for:

• Offices
• Retail stores
• Showrooms
• Lobbies
• Conference rooms
• Hotels
• Hospitals
• Convention centers
• Schools
• Commercial interiors
• Modern residential spaces
• Galleries
• Studios
• Architectural lighting projects

Certifications & Warranty

The fixture is cULus Listed and DLC Premium Listed, providing suitability for commercial lighting projects where recognized product certifications are required.

The product is backed by a 5-Year Warranty.

Bulk Buying for Commercial Projects

This 4FT architectural linear light is suitable for contractors, architects, builders, electricians, facility managers, distributors, and commercial lighting projects.

The selectable wattage, 5CCT design, multiple mounting options, and linkable configuration make it practical for larger projects requiring consistent fixture design throughout the space.

Contact us for bulk quantities, contractor pricing, and commercial project orders.

Installation

Installation should be performed by a qualified electrician or professional installer.

1. Turn off power before installation.
2. Select the desired wattage and CCT.
3. Choose pendant or surface mounting.
4. Secure the appropriate mounting hardware.
5. Complete the electrical connections according to applicable electrical requirements.
6. Connect compatible fixtures and connectors when creating a continuous run.
7. Connect compatible 0-10V controls if dimming is required.
8. Restore power and test the fixture.

Always follow applicable electrical codes and installation instructions.

FAQs

What wattages are selectable?

The fixture offers 20W, 30W, 40W, 50W, and 60W settings.

How many lumens does it produce?

It produces up to 7,800 lumens with up to 130 LM/W efficacy.

What CCT options are available?

You can select 3000K, 3500K, 4000K, 5000K, or 6500K.

Is this linear light dimmable?

Yes. It supports 0-10V dimming.

Can multiple fixtures be connected?

Yes. The fixture has a seamless linkable design for continuous lighting installations.

Can I create custom lighting patterns?

Yes. Compatible connectors can be used for straight, L-shaped, T-shaped, and Cross-shaped layouts.

Can it be pendant mounted?

Yes. It supports pendant/suspension mounting.

Can it be surface mounted?

Yes. Surface mounting is also supported.

What is the beam angle?

The fixture has a 120° beam angle.

What voltage does it support?

It operates on 120-277V AC.

What color is this version?

This listing is for the White Finish version.

What certifications does it have?

It is cULus Listed and DLC Premium Listed.

What is the warranty?

The fixture includes a 5-Year Warranty.
