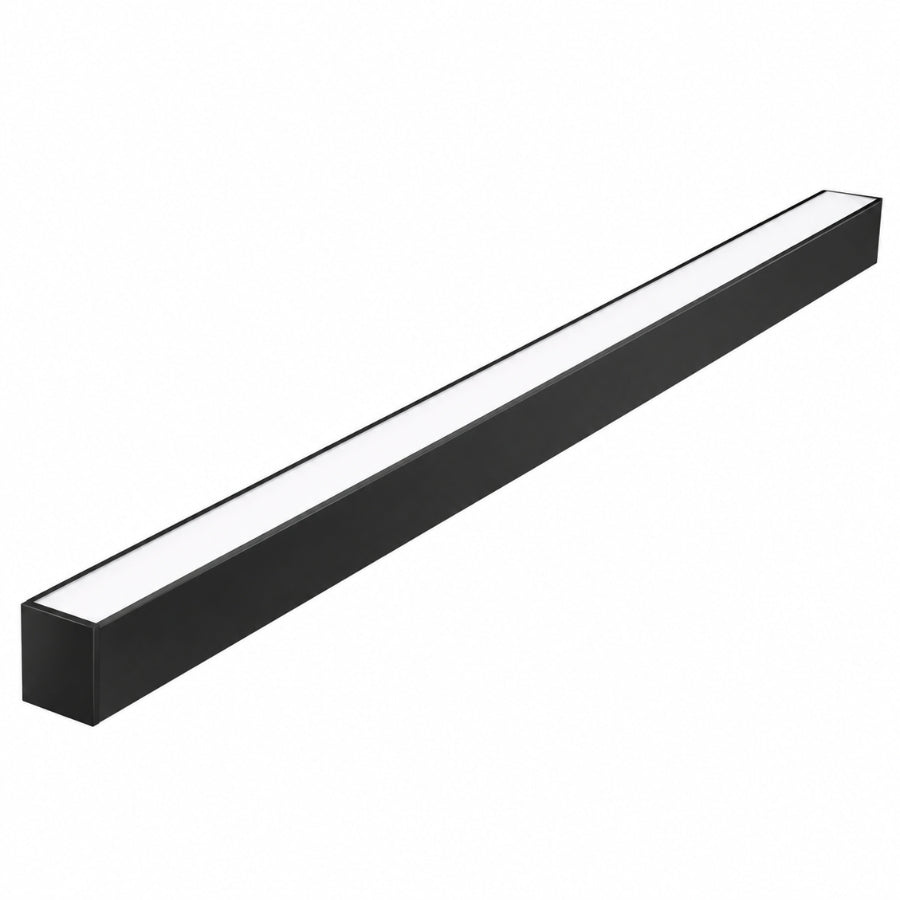

20W/30W/40W/50W/60W 4FT LED Architectural Linear Light, Up to 7,800 Lumens, 130 LM/W, 3000K/3500K/4000K/5000K/6500K Selectable, 120-277V AC, 0-10V Dimmable, 120° Beam, Seamless Linkable, Pendant/Surface Mount, Black

Product Overview

Upgrade commercial and modern architectural spaces with the 4FT LED Architectural Linear Light. Designed with a sleek housing and durable polycarbonate lens, this fixture provides a clean, modern lighting solution for professional interiors.

The fixture features selectable wattage from 20W to 60W and 5 selectable color temperatures, allowing you to adjust the light output and appearance according to the needs of the space. Its wide 120° beam provides broad illumination, while the linkable design allows multiple fixtures to be connected for longer or custom lighting layouts.

It supports both pendant/suspension and surface mounting, making it suitable for a variety of commercial and architectural installations.

Key Specifications

Selectable Wattage

The fixture provides five selectable power levels:

• 20W
• 30W
• 40W
• 50W
• 60W

This allows installers to choose the appropriate power level for different room sizes and lighting requirements while using the same 4FT fixture.

At the highest setting, the fixture delivers up to 7,800 lumens.

5CCT Color Selectable

Choose from five color temperatures:

• 3000K – Warm and comfortable
• 3500K – Warm-neutral appearance
• 4000K – Balanced neutral white
• 5000K – Bright cool white
• 6500K – Crisp daylight appearance

The selectable CCT feature makes the fixture adaptable to different interior designs and project requirements.

Direct & Indirect Lighting

The architectural linear design supports both downward and upward light distribution. Downward light provides illumination for the occupied area, while upward light can add ambient illumination to the ceiling.

This combination works well in modern interiors where both functional lighting and architectural appearance are important.

Seamless Linkable Design

Multiple fixtures can be connected to create longer continuous lighting arrangements. Up to 7 fixtures can be linked continuously, helping create clean linear runs with minimal visible interruption between fixtures.

The system also supports custom connection layouts, including:

• Straight connections
• L-shaped connections
• T-shaped connections
• Cross connections

This makes it possible to create different linear and geometric lighting patterns for architectural projects.

Pendant or Surface Mounting

The fixture supports two primary installation methods.

Pendant/Suspension Mounting:
Suspend the fixture from the ceiling for a modern architectural appearance. This is ideal for offices, lobbies, conference rooms, retail spaces, and other open interior areas.

Surface Mounting:
Mount the fixture directly to a suitable ceiling surface when a closer-to-ceiling installation is preferred.

0-10V Dimming

The fixture supports 0-10V continuous dimming, allowing compatible lighting controls to adjust the brightness according to the requirements of the space.

This provides additional control for offices, hospitality areas, showrooms, conference rooms, and other commercial environments.

Wide 120° Beam Angle

The 120° beam angle provides broad light distribution across the surrounding area. This makes the fixture suitable for general illumination where wide and consistent coverage is needed.

Modern Construction

The fixture combines an aluminum housing with a polycarbonate lens for a durable and professional design.

The black finish gives the fixture a contemporary appearance that works well with modern architectural interiors.

Recommended Applications

This 4FT architectural linear light is suitable for:

• Offices
• Lobbies
• Retail stores
• Showrooms
• Hotels
• Hospitals
• Convention centers
• Conference rooms
• Commercial interiors
• Modern residential spaces
• Architectural lighting projects
• Hospitality spaces

Certifications & Warranty

The fixture is cULus Listed and DLC Premium Listed, making it suitable for a wide range of commercial lighting projects.

It is backed by a 5-Year Warranty.

Bulk Buying for Commercial Projects

This architectural linear light is suitable for contractors, architects, builders, electricians, facility managers, distributors, and commercial lighting projects.

Its selectable wattage, selectable CCT, multiple mounting options, and linkable design make it suitable for projects requiring consistent lighting across multiple rooms or large areas.

Contact us for bulk quantities, contractor pricing, and commercial project orders.

Installation

Installation should be completed by a qualified electrician or professional installer.

1. Turn off power before installation.
2. Select the required wattage and CCT settings.
3. Choose pendant/suspension or surface mounting.
4. Secure the fixture using the appropriate mounting hardware.
5. Complete the electrical connections according to applicable electrical requirements.
6. Connect compatible fixtures when creating a continuous run.
7. Connect 0-10V controls if dimming is required.
8. Restore power and test the fixture.

Always follow applicable electrical codes and installation instructions.

FAQs

What wattages can I select?

The fixture offers 20W, 30W, 40W, 50W, and 60W selectable settings.

How many lumens does it produce?

The fixture provides up to 7,800 lumens at up to 130 LM/W.

What color temperatures are available?

You can select 3000K, 3500K, 4000K, 5000K, or 6500K.

Is the fixture dimmable?

Yes. It supports 0-10V continuous dimming.

Can multiple fixtures be connected?

Yes. Up to 7 fixtures can be connected continuously using compatible connection accessories.

Can I create L, T, or Cross lighting patterns?

Yes. Compatible connectors allow different layouts, including L-shaped, T-shaped, and Cross-type configurations.

Can this fixture be pendant mounted?

Yes. It supports pendant/suspension mounting.

Can it be surface mounted?

Yes. The fixture also supports surface mounting.

What is the beam angle?

The fixture has a 120° beam angle for broad light distribution.

What voltage does it use?

The fixture operates on 120-277V AC, 50/60Hz.

What certifications does it have?

The fixture is cULus Listed and DLC Premium Listed.

What is the warranty?

The fixture comes with a 5-Year Warranty.
