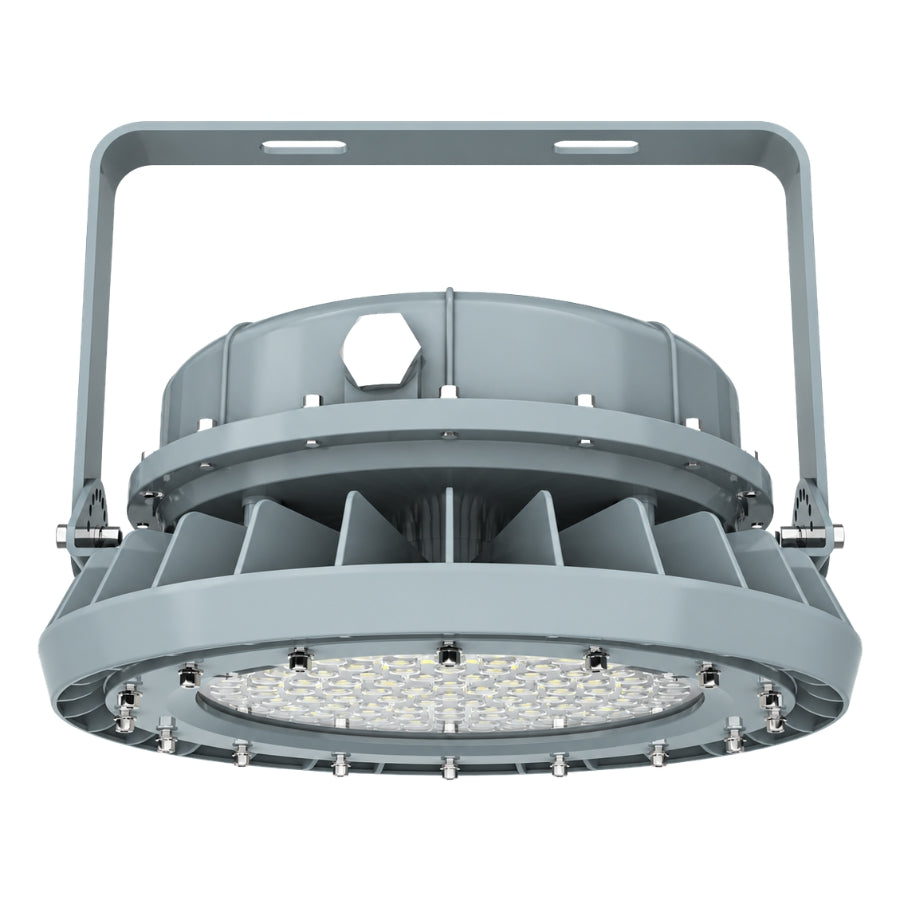

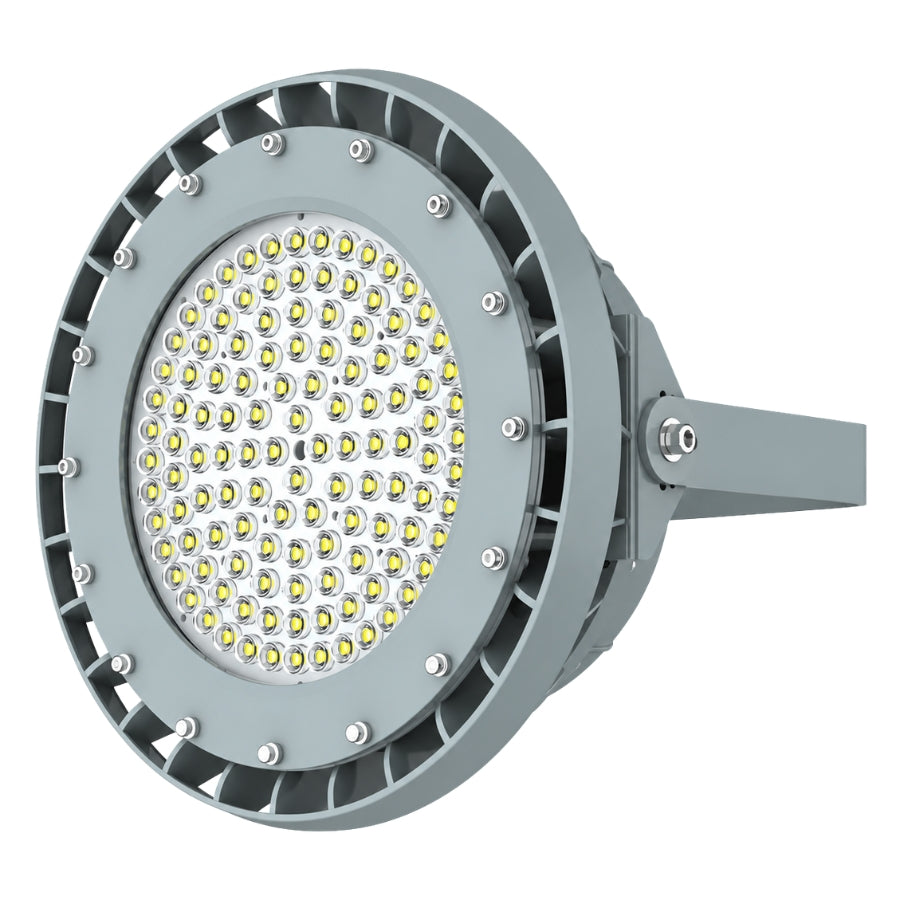

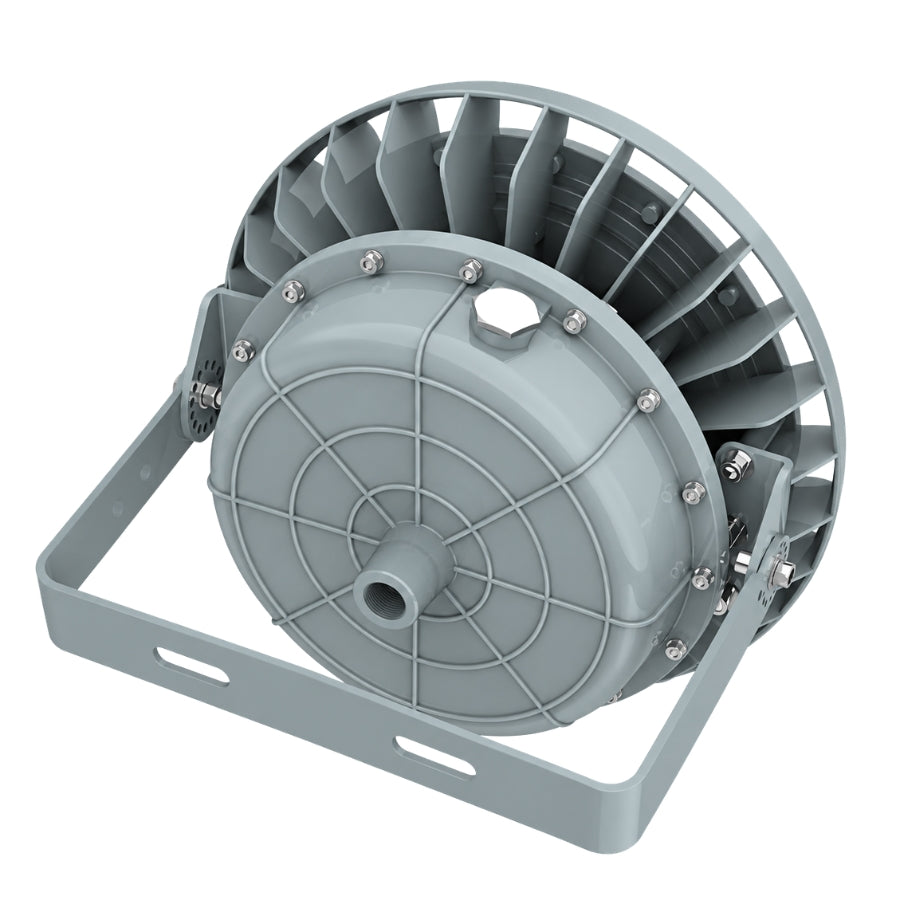

200W LED Explosion Proof Round Light, Class I Division 2, 26,000 Lumens, 5000K, 120-277V AC, 0-10V Dimmable, 120° Beam, Copper-Free Aluminum Housing, Tempered Glass Lens, IP66, Hazardous Location Lighting Fixture

The 200W LED Explosion Proof Round Light from Energy Efficient LEDs is made for hazardous and industrial environments that need high-output lighting and durable construction. It produces 26,000 lumens of 5000K illumination with a wide 120° distribution for large-area coverage.

The fixture uses a copper-free aluminum housing, tempered glass diffuser, and stainless-steel hardware. These materials are designed for demanding locations where moisture, dust, corrosion, vibration, and weather exposure may be present.

The 120-277V AC input provides compatibility with common commercial and industrial electrical systems, while optional 0-10V dimming allows integration with compatible lighting controls.

Key Features

• 200W LED hazardous-location light
• 26,000 lumens
• 130 lm/W efficiency
• 5000K color temperature
• 120-277V AC input
• 0-10V dimmable
• 120° wide light distribution
• Class I Division 2, Groups A, B, C & D
• Class II Division 1, Groups E, F & G
• Class II Division 2, Groups F & G
• Class III
• Class I Zone 2
• Class II Zone 21
• Copper-free aluminum housing
• Tempered glass diffuser
• Stainless-steel hardware
• IP66 protection
• IK08 with glass cover
• IK10 with wire guard
• 5-year standard warranty

High-Output Industrial Lighting

The 200W version provides 26,000 lumens, making it suitable for larger areas that require more illumination from each fixture. Its wide distribution helps spread light across work areas and facility spaces.

Durable Construction

The copper-free aluminum housing is designed for corrosion resistance and heat dissipation. The tempered glass diffuser provides protection for the light source, while stainless-steel hardware supports the fixture in demanding installations.

Multiple Installation Options

The fixture can be installed using different mounting configurations:

• Ceiling Mount
• Wall Mount
• Pole Pendant
• Hook Pendant
• Stanchion Mount

Additional mounting accessories are available for different project requirements.

Suitable Applications

• Power Plants
• Heavy Industrial Facilities
• Storage Facilities
• Paper Mills
• Wastewater Treatment Plants
• Loading Docks
• Loading Platforms
• Offshore Environments
• Chemical Processing Facilities
• Petrochemical Facilities
• Metallurgical Facilities
• Coal Mines
• Food & Alcohol Industries

Certifications & Protection

The supplied documentation identifies:

• UL 844 Hazardous Locations
• UL 1598 Wet Locations
• UL 1598A Marine Outside Type
• UL 924 Emergency Lighting
• ABS
• NSF
• DLC
• IP66
• IK08 with glass cover
• IK10 with wire guard

Technical Specifications

FAQs

1. How bright is this 200W LED light?

It produces 26,000 lumens.

2. What color temperature does it use?

The fixture uses 5000K.

3. Is the fixture dimmable?

Yes. 0-10V dimming is available.

4. What voltage does it operate on?

It operates on 120-277V AC.

5. What is the beam angle?

The fixture provides a 120° beam angle for broad coverage.

6. What mounting options are available?

It supports ceiling, wall, pole pendant, hook pendant, and stanchion mounting.

7. Is it protected against water and impact?

Yes. It has an IP66 rating, with IK08 protection using the glass cover and IK10 protection with the wire guard.

8. What warranty is included?

The fixture includes a 5-year standard warranty.
