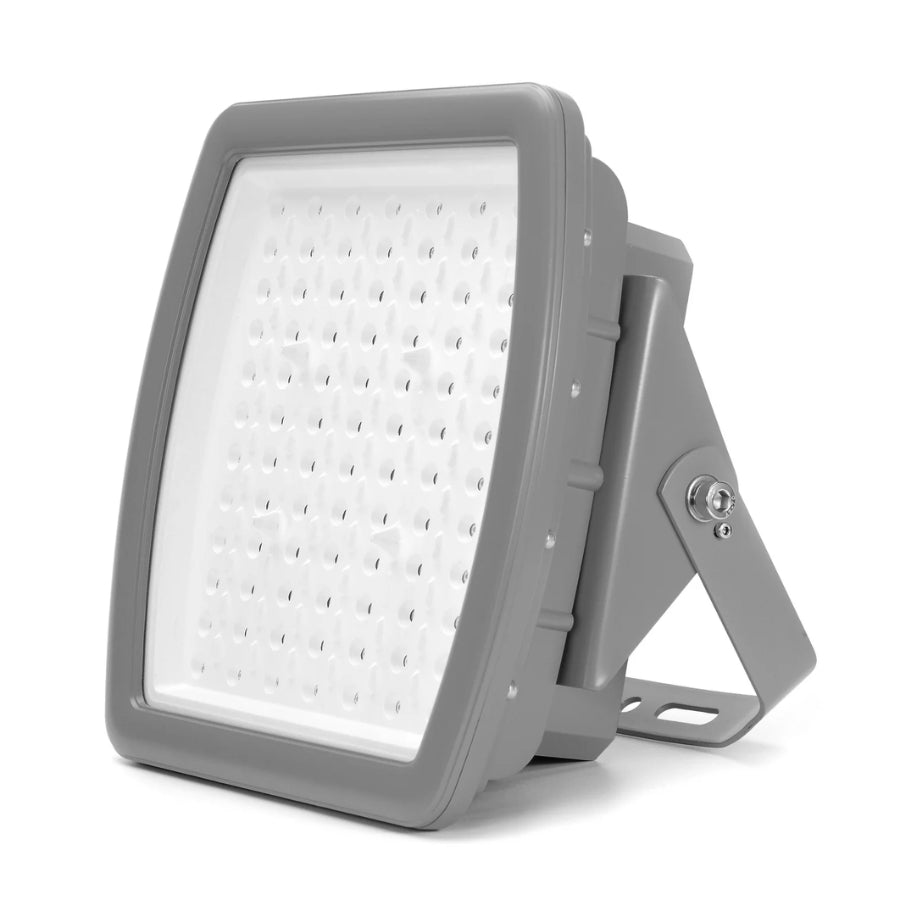

200W Explosion Proof LED Flood Light, 5000K, 26,000 Lumens, 130 lm/W, Class I Division 2 Groups A/B/C/D, 120-277V AC, 120° Beam, 400W MH Equivalent, UL/cUL & DLC Certified, IP68, 5-Year Warranty

Product Overview

The Energy Efficient LEDs 200W Explosion Proof LED Flood Light is designed for hazardous industrial and commercial environments where dependable illumination, rugged construction, and certified protection are essential. Delivering 26,000 lumens at 130 lm/W, this fixture provides powerful wide-area illumination while offering a practical replacement for conventional 400–600W MH/HPS lighting.

Built with a heavy-duty die-cast aluminum housing, tempered glass optics, and an IP68-rated design, this hazardous-location flood light is suitable for demanding applications including petroleum facilities, chemical plants, coal mines, gas stations, ports, marine environments, and military facilities. Its 120° distribution provides broad coverage for area and flood lighting applications.

Key Features

• 200W LED output with 26,000 lumens
• 130 lm/W lighting efficiency
• 5000K cool white color temperature
• 120° wide beam distribution
• Class I Division 2, Groups A, B, C & D
• Designed for Zone 1 & Zone 2 gaseous environments and Zone 21 & Zone 22 dust environments
• IP68-rated protection against dust and water
• Heavy-duty die-cast aluminum housing
• Durable tempered glass optical lens
• Lumileds 3030 LED chips
• 120–277V AC input
• 0.9 power factor
• UL/cUL & DLC certified
• Approximately 50,000-hour lifetime
• Wall U-bracket or conduit-thread pendant mounting
• 5-year limited warranty

Technical Specifications

Hazardous Location Protection

This fixture is designed for hazardous-location lighting applications where flammable gases, vapors, or combustible dust may be present. The supplied specification identifies the fixture for Class I Division 2 Groups A, B, C and D, with application in Zone 1/2 gaseous environments and Zone 21/22 dust environments.

Always verify the product's certification markings, hazardous-location classification, electrical code requirements, and installation conditions against the requirements of the specific job site before installation.

Construction & Optical Design

The rugged aluminum body is finished with a grey powder coating to provide durability in demanding environments. A tempered glass optical system protects the LED assembly while providing a broad distribution suitable for flood and area illumination.

The fixture uses Lumileds 3030 LED chips and a high-quality LED driver for consistent operation across the 120–277V AC input range.

Mounting Options

The fixture supports flexible installation for industrial and commercial applications:

• Wall mounting with U-bracket
• Conduit-thread pendant mounting
• Threaded pipe mounting available upon request

Recommended Applications

• Gas stations
• Petroleum facilities
• Chemical processing facilities
• Coal mines
• Military facilities
• Ports and marine facilities
• Hazardous industrial areas
• Oil and gas facilities
• Industrial yards and outdoor work areas
• Hazardous-location area lighting

Replacement & Performance

Designed to replace conventional 400–600W MH/HPS fixtures, this 200W LED solution provides high-output illumination with substantially lower fixture wattage. Its wide distribution makes it suitable for illuminating large industrial areas, work zones, outdoor facilities, and hazardous-location environments.

Bulk & Contractor Buying

For contractors, distributors, facility managers, and industrial projects, this fixture is suitable for multi-fixture installations and large-area lighting upgrades. Contact Energy Efficient LEDs for project quantities, bulk pricing, and application assistance.

Frequently Asked Questions

Is this LED flood light explosion proof?

It is specified as a hazardous-location/explosion-proof LED luminaire and is rated for Class I Division 2 Groups A/B/C/D applications according to the supplied specification sheet.

How many lumens does the 200W fixture produce?

The 200W model produces 26,000 lumens.

What is the color temperature?

The fixture is supplied in 5000K.

What voltage does it operate on?

It operates from 120–277V AC.

What is the beam angle?

The nominal beam distribution is 120°, with a listed photometric average beam angle of 112.9°.

What conventional fixture does it replace?

The specification lists the fixture as equivalent to approximately 400–600W MH/HPS lighting.

Is it suitable for dusty hazardous environments?

Yes. The supplied specification identifies use in Zone 21 and Zone 22 dust environments and lists an IP68 rating.

Can it be wall mounted?

Yes. A wall U-bracket mounting configuration is available.

Can it be pendant mounted?

Yes. The fixture supports conduit-thread pendant mounting, with threaded pipe available upon request.

What type of LED chips are used?

The fixture uses Lumileds 3030 LED chips.

What is the expected lifetime?

The product specification lists an approximate 50,000-hour lifetime.

What is the operating temperature?

The specification lists a working temperature range of -20°C to 50°C.

Does it have a warranty?

Yes. It includes a 5-year limited warranty. Actual performance may vary depending on the end-user environment and application.

Is it suitable for outdoor industrial use?

Yes. Its rugged construction and IP68 rating make it suitable for demanding outdoor and industrial lighting applications, subject to the site's hazardous-location requirements.
