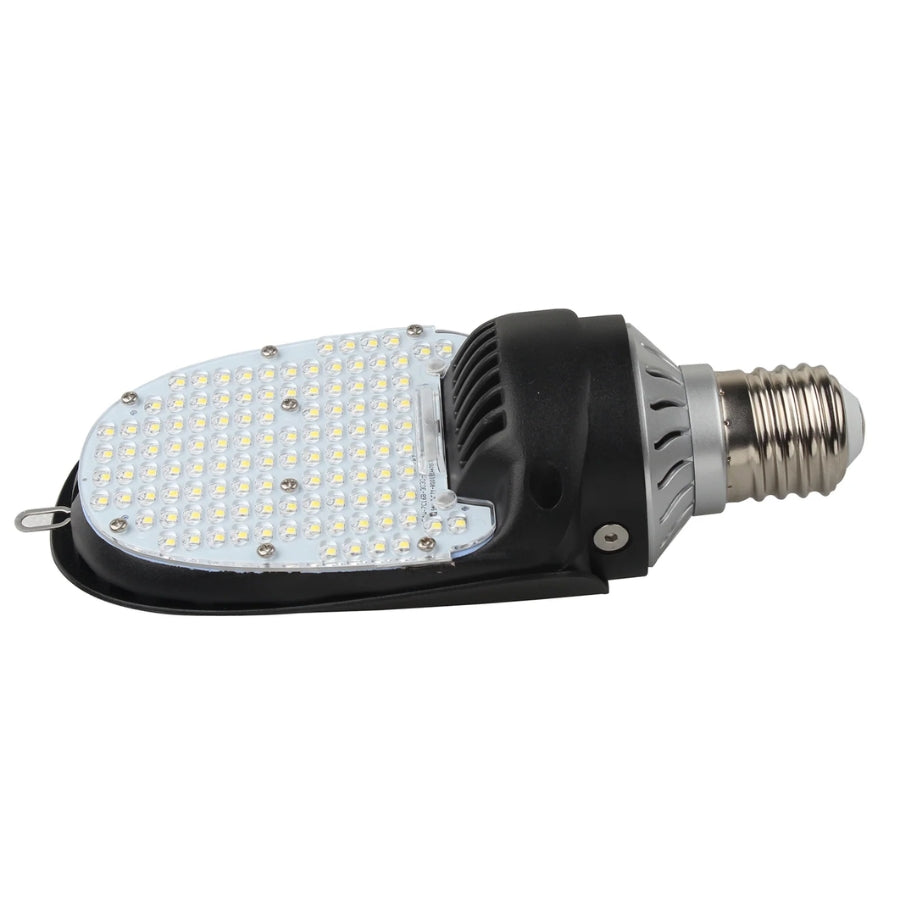

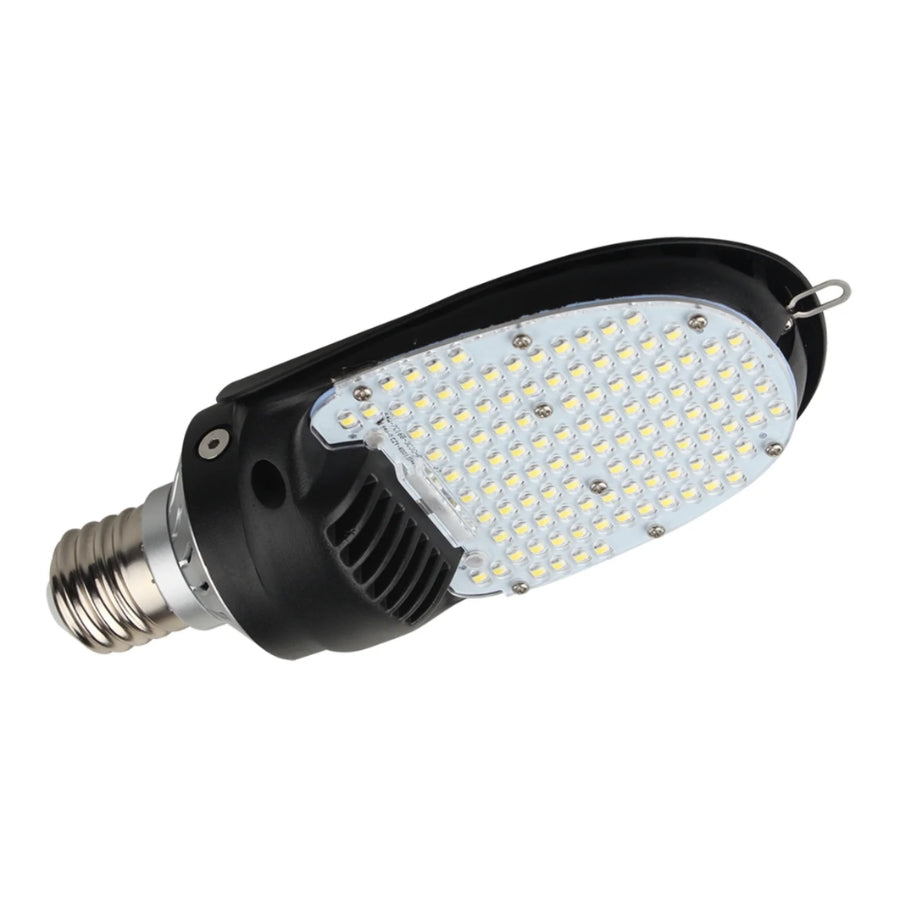

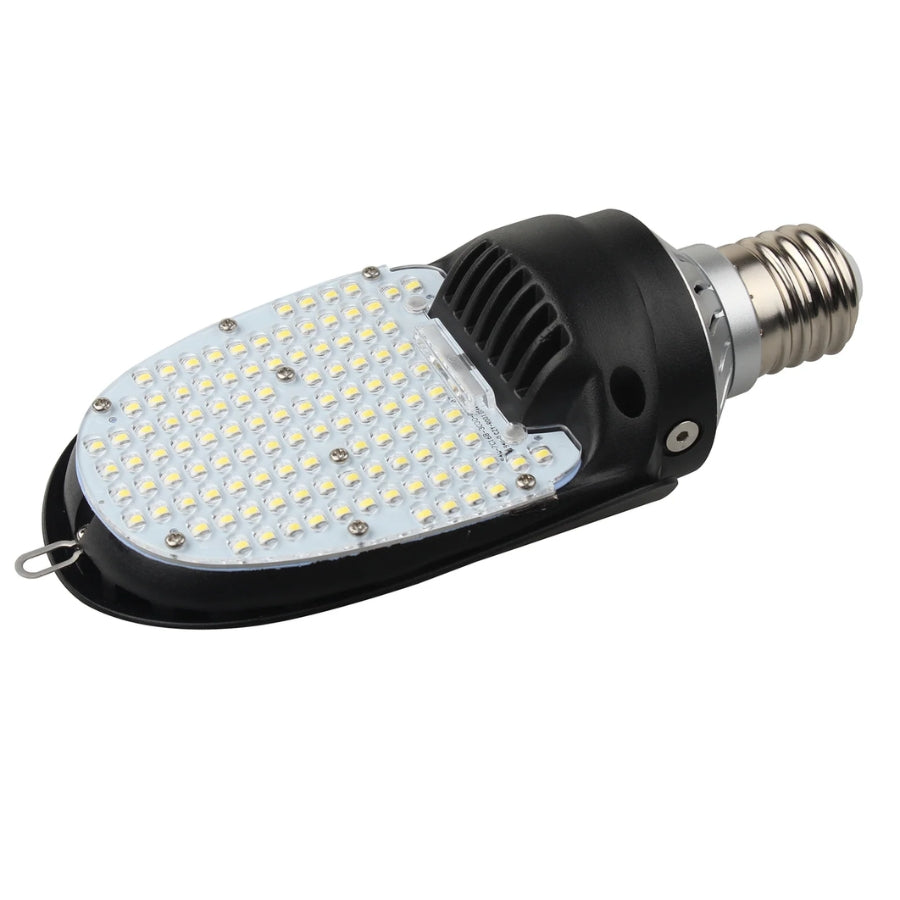

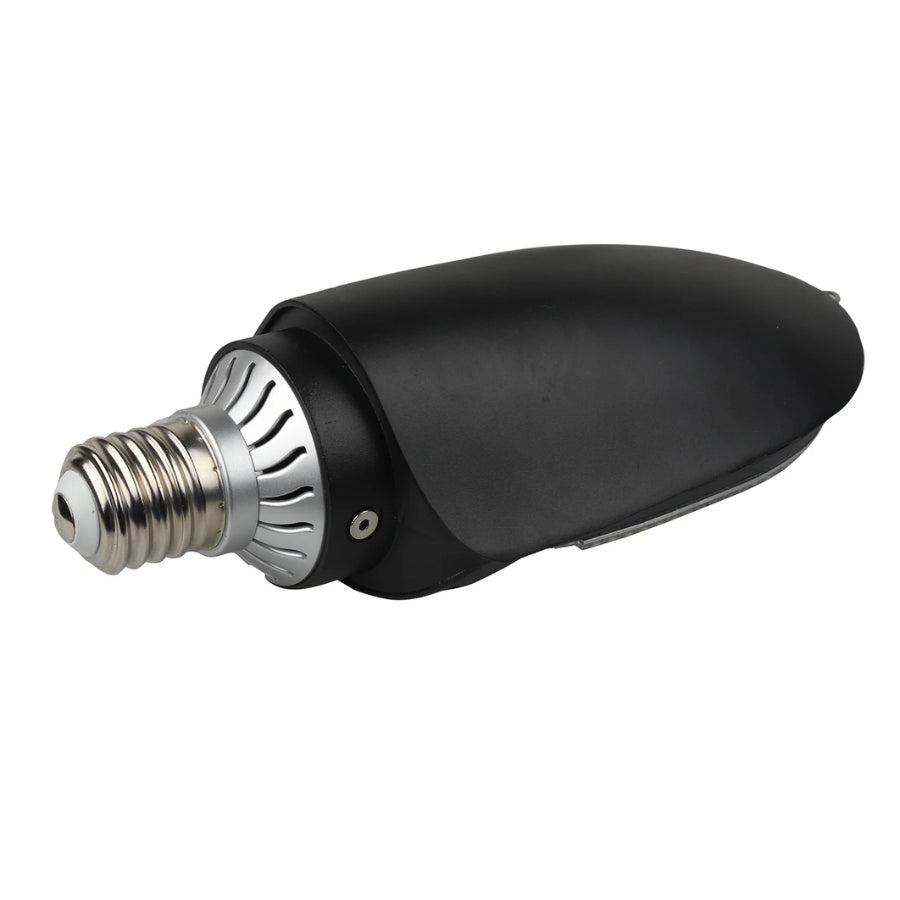

115W E39 LED Retrofit Lamp, 14,950 Lumens, 130 LM/W, 5000K, 120-277V AC, Rotatable E39 Mogul Base, 120° Beam Angle, Built-In Cooling Fan, Die-Cast Aluminum Housing, UL/cUL Listed, DLC Listed, Ballast Bypass, 5-Year Warranty

Product Overview

Upgrade traditional shoebox, area, and roadway fixtures with this 115W E39 LED Retrofit Lamp, delivering 14,950 lumens at 130 LM/W. The 5000K cool-white output provides bright, uniform illumination while offering a practical LED replacement for compatible 200W-300W metal halide or HPS lighting.

The retrofit features a rotatable E39 Mogul base, allowing the LED head to be positioned toward the desired lighting direction. A built-in cooling fan works with the high-thermal-conductivity die-cast aluminum housing to help manage operating heat, while the internal isolated driver provides reliable 120-277V AC operation.

Designed for ballast-bypass installation, this LED retrofit lamp is suitable for compatible traditional shoebox fixtures, outdoor pole-mounted area lights, arm-mounted luminaires, and roadway lighting.

Key Features

• 115W LED Retrofit Lamp: Delivers 14,950 lumens at 130 LM/W.
• 5000K Cool White: Provides bright, clear illumination for commercial outdoor environments.
• 120° Beam Angle: Provides broad and uniform light distribution.
• Rotatable E39 Mogul Base: Allows directional adjustment after installation.
• Built-In Cooling Fan: Supports active heat dissipation during operation.
• Die-Cast Aluminum Housing: High thermal conductivity helps manage operating heat.
• High-Brightness Lumileds LEDs: Designed for reliable commercial lighting performance.
• Internal Isolated Driver: Provides regulated, flicker-free operation.
• Ballast Bypass Design: Allows the existing ballast to be removed or bypassed before LED installation.
• 120-277V AC Input: Supports a wide commercial voltage range.
• Safety Hanging Chain: Provides additional support during installation.
• UL/cUL & DLC Listed: Certifications specified by the manufacturer.
• 5-Year Limited Warranty: Manufacturer-backed limited warranty.

Technical Specifications

14,950-Lumen High-Output Performance

The 115W retrofit produces 14,950 lumens at 130 lumens per watt, providing high-output LED illumination for compatible outdoor fixtures.

The manufacturer specifies this version as an equivalent replacement for approximately 200W-300W metal halide or HPS lighting, depending on the existing fixture and application.

Rotatable E39 Mogul Base

The E39 Mogul base is designed for compatible traditional shoebox and area-light fixtures. After installation, the lamp can be rotated to position the light distribution according to the fixture orientation and application requirements.

The socket locking catch must be reset after adjustment to securely hold the lamp in position.

Built-In Cooling Fan & Aluminum Housing

The integrated cooling fan provides active airflow around the LED assembly, while the heavy die-cast aluminum housing helps transfer heat away from the LEDs.

This combination is designed to support stable operation and effective thermal management in commercial retrofit applications.

Wide 120° Optical Distribution

The 120° beam angle provides broad coverage for outdoor area and roadway lighting. High-quality transmission PC optics help produce an even light distribution across the illuminated area.

The optical design is suitable for upgrading existing fixtures where broad coverage is required.

5000K Cool-White Illumination

The listed configuration provides 5000K cool-white light, delivering bright illumination for parking areas, pathways, commercial properties, outdoor facilities, and roadway applications.

The product family is also specified with 3000K and 4000K color-temperature options.

Ballast Bypass Installation

This retrofit lamp is designed for ballast-bypass installation. Before connecting the LED lamp, the existing ballast and associated HID components must be removed or bypassed as applicable.

The internal isolated driver allows the LED lamp to operate directly from the specified 120-277V AC supply after proper electrical conversion.

Suitable Applications

The 115W E39 LED Retrofit Lamp is suitable for compatible:

• Shoebox fixtures
• Parking lot lighting
• Area lighting
• Pathway lighting
• Garden lighting
• Outdoor pole-mounted luminaires
• Arm-mounted fixtures
• Roadway luminaires
• Commercial outdoor lighting

Installation Instructions

1. Turn off power before installation.
2. Confirm that the input voltage and frequency are within the specified range.
3. Remove or bypass the existing ballast before installing the LED lamp.
4. Push the switch on the compatible socket and twist the LED retrofit lamp into the lamp holder.
5. Rotate the lamp to the desired lighting angle.
6. Release and reset the socket locking catch to secure the lamp.
7. Verify that all wiring connections are properly insulated.
8. Turn power back on and test the lamp.

Important: Installation and disassembly should be performed by qualified professionals. This product is suitable for damp locations and should not be used with dimmers. Verify fixture compatibility, wiring, and electrical requirements before installation.

Frequently Asked Questions

How many lumens does the 115W E39 LED retrofit produce?

The 115W version produces 14,950 lumens at 130 LM/W.

What HID lamp does the 115W version replace?

It is specified as a replacement for approximately 200W-300W metal halide or HPS lighting in compatible fixtures.

What color temperatures are available?

The product family is specified in 3000K, 4000K, and 5000K. This listing features the 5000K configuration.

Does this retrofit use an E39 Mogul base?

Yes. The lamp uses a rotatable E39 Mogul base for compatible fixtures.

Can the lamp be rotated?

Yes. The lamp can be adjusted after installation to direct the light as required. The socket locking catch must be reset after adjustment.

Does the LED lamp require a ballast?

No. The existing ballast must be removed or bypassed before installation.

Does it have active cooling?

Yes. The lamp features a built-in cooling fan combined with a die-cast aluminum housing for heat management.

What voltage does it support?

The lamp operates on 120-277V AC.

Can I use a dimmer?

No. The manufacturer's installation instructions state not to use the lamp with dimmers.

Is it suitable for outdoor lighting?

Yes. It is specified as suitable for damp locations and is designed for compatible outdoor area, pathway, garden, pole-mounted, arm-mounted, and roadway fixtures.

What certifications does it have?

The specification sheet lists UL, cUL, and DLC.
