100W Solar LED Street Light, 10,000 Lumens, 5700K, LUXEON 3030 LEDs, 6V Monocrystalline Solar Panel, LiFePO4 Battery, Motion Sensor, Dusk-to-Dawn Light Control, 150°×65° Beam, IP66, Aluminum Housing, 60/76mm Pole Mount, 6-8M Mounting Height, Grey

Product Overview

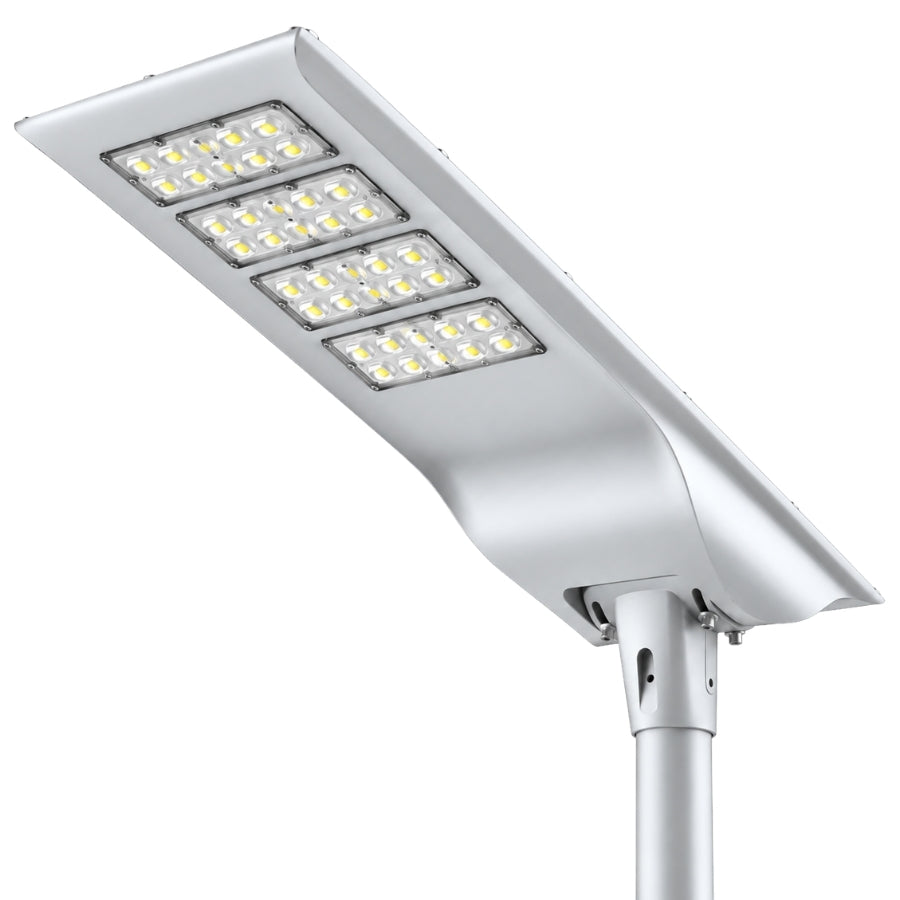

The 100W Solar LED Street Light provides powerful outdoor illumination with up to 10,000 lumens and a 5700K cool-white light output. Its integrated 6V monocrystalline solar panel and 32135 LiFePO4 battery create a self-contained lighting system that eliminates the need for conventional electrical wiring.

Designed for commercial, municipal, rural, and remote-area applications, this solar street light combines MPPT solar charging technology, dusk-to-dawn light sensing, programmable time control, and motion sensing for efficient nighttime operation. The durable aluminum housing and IP66 protection make it suitable for demanding outdoor environments, while the 60mm/76mm pole mount supports installation at heights of 6-8 meters.

Key Features

• 100W LED Street Light: Delivers up to 10,000 lumens for roadway, pathway, parking, and area lighting.
• 5700K Cool White: Provides bright, clear illumination for outdoor applications.
• LUXEON 3030 LEDs: Uses 70 LUXEON 3030 LED chips for efficient illumination.
• 6V Monocrystalline Solar Panel: Provides up to 24% solar conversion efficiency.
• 32135 LiFePO4 Battery: Supports up to 2,200 charge/discharge cycles.
• MPPT Solar Charging: Helps maximize solar energy collection and improve system efficiency.
• Motion Sensor: Operates at 100% brightness when motion is detected and reduces brightness to an adjustable 10%-100% when no movement is detected.
• Dusk-to-Dawn Light Control: Automatically responds to ambient light conditions for nighttime operation.
• Programmable Time Control: Supports multiple lighting periods to optimize battery usage.

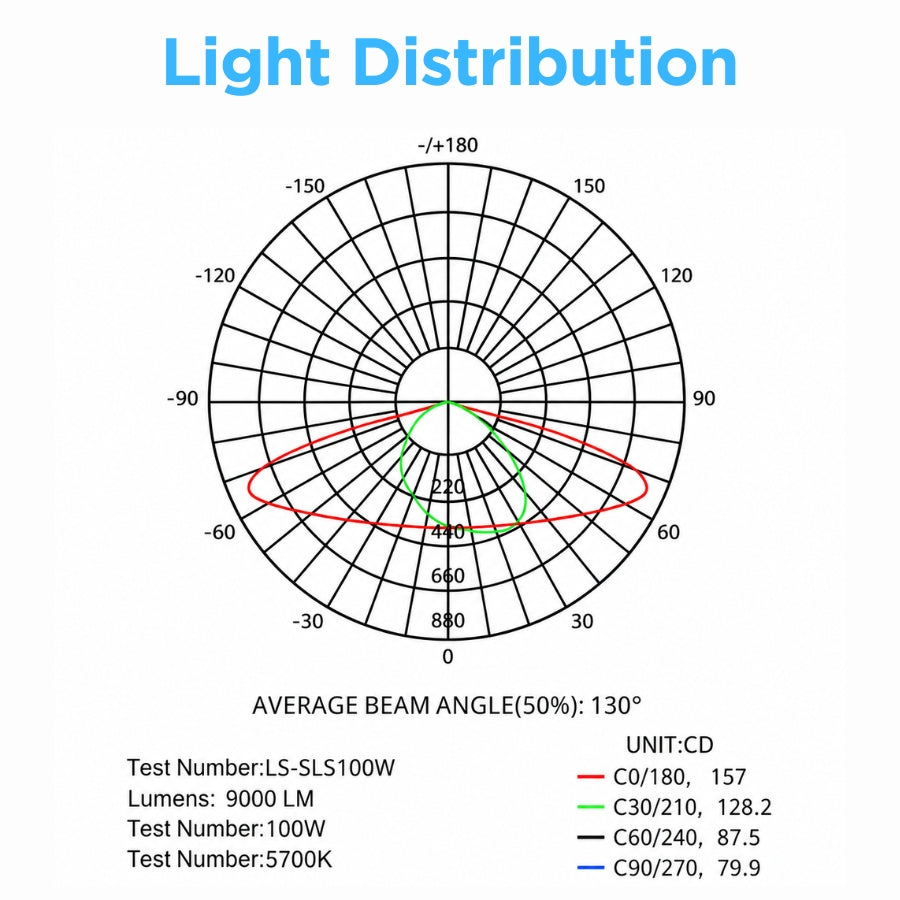

• 150° × 65° Beam: Provides broad outdoor light distribution.
• IP66 Protection: Protects the fixture against dust and water exposure.
• Aluminum Housing: Integrated aluminum construction provides durability and heat dissipation.
• 60mm/76mm Pole Mount: Compatible with two common pole diameters.
• 6-8M Mounting Height: Suitable for elevated roadway, pathway, and area lighting installations.
• Grey Finish: Neutral outdoor finish suitable for commercial and municipal environments.
• No Grid Wiring Required: Ideal for locations where electrical infrastructure is unavailable or difficult to install.

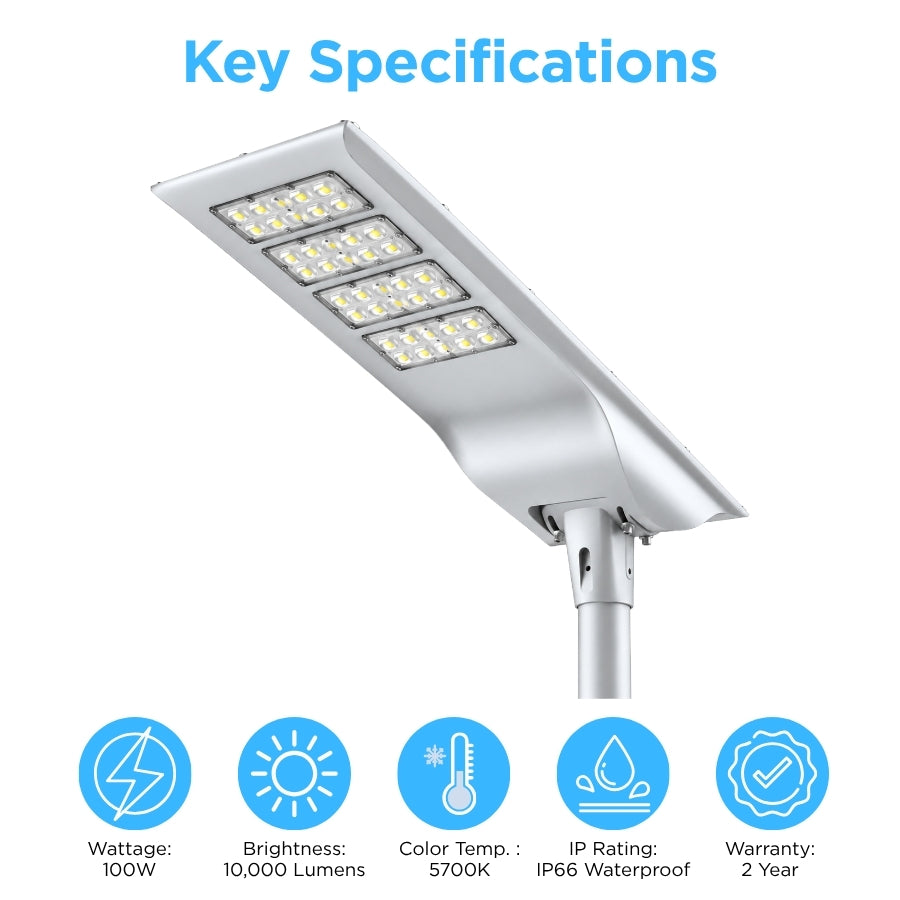

Technical Specifications

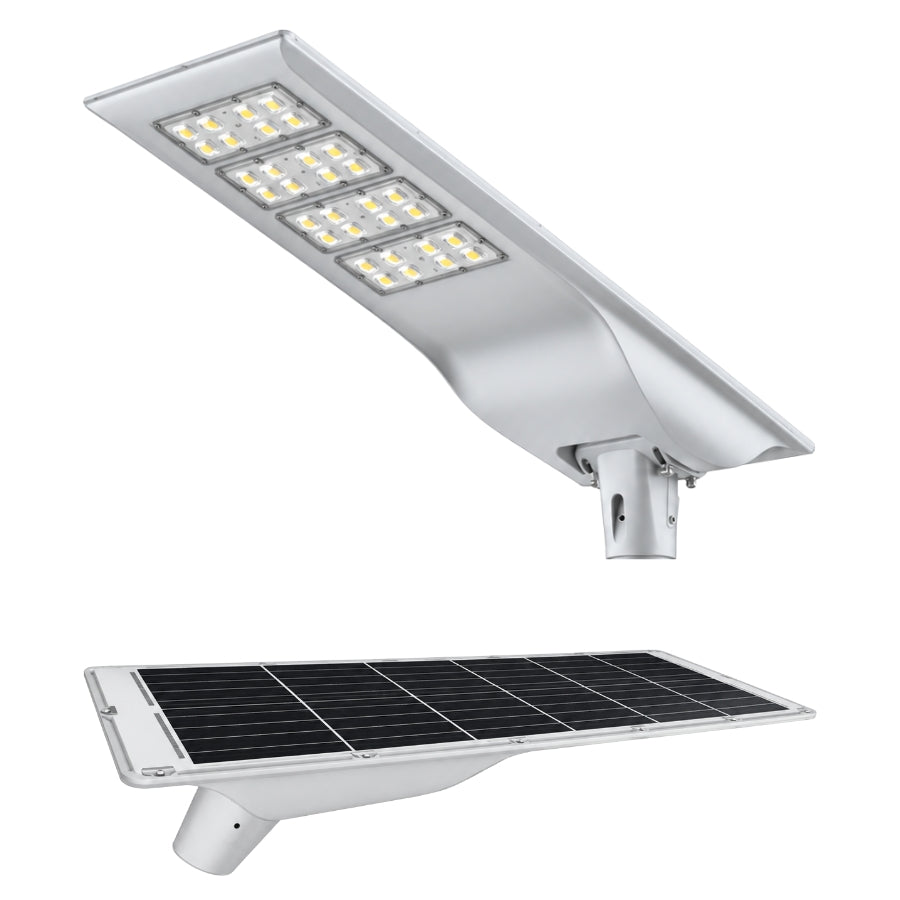

Integrated Solar Power System

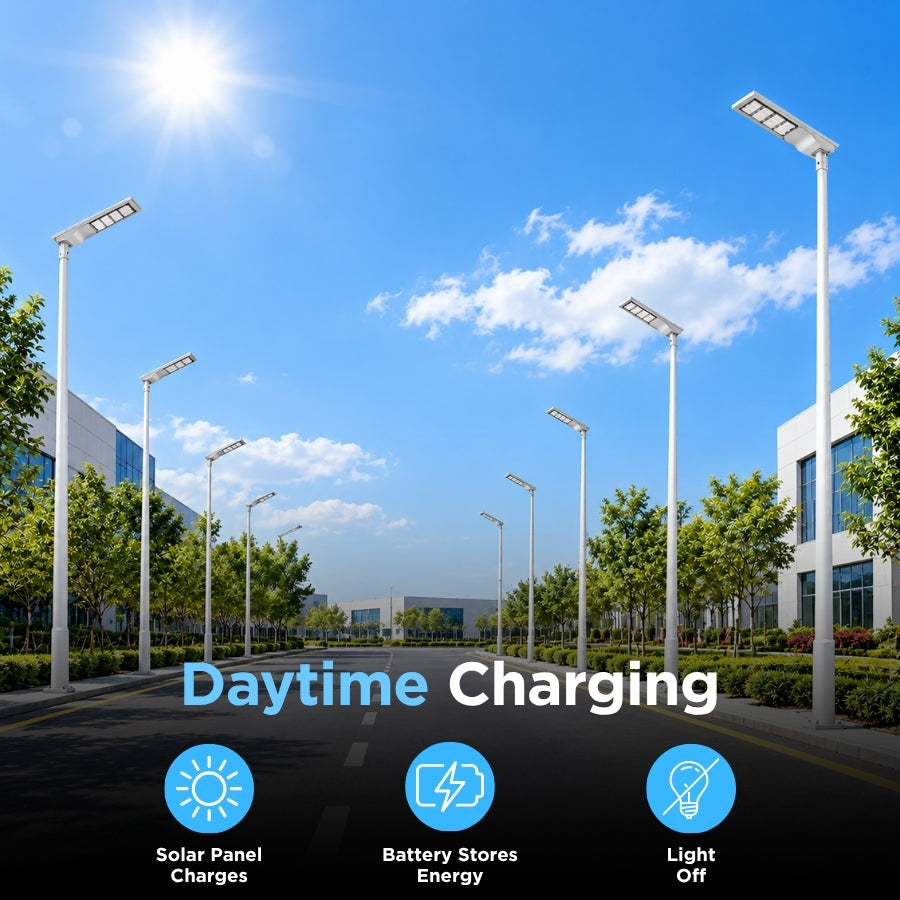

The built-in monocrystalline solar panel converts sunlight into electrical energy for charging the internal LiFePO4 battery. With solar conversion efficiency of up to 24% and MPPT charging technology, the system is designed to make efficient use of available sunlight.

Because the solar panel, battery, controller, and LED fixture are integrated into one system, no underground electrical connection is required. This makes the light especially suitable for remote roads, pathways, farms, parks, campuses, and other locations without convenient access to grid power.

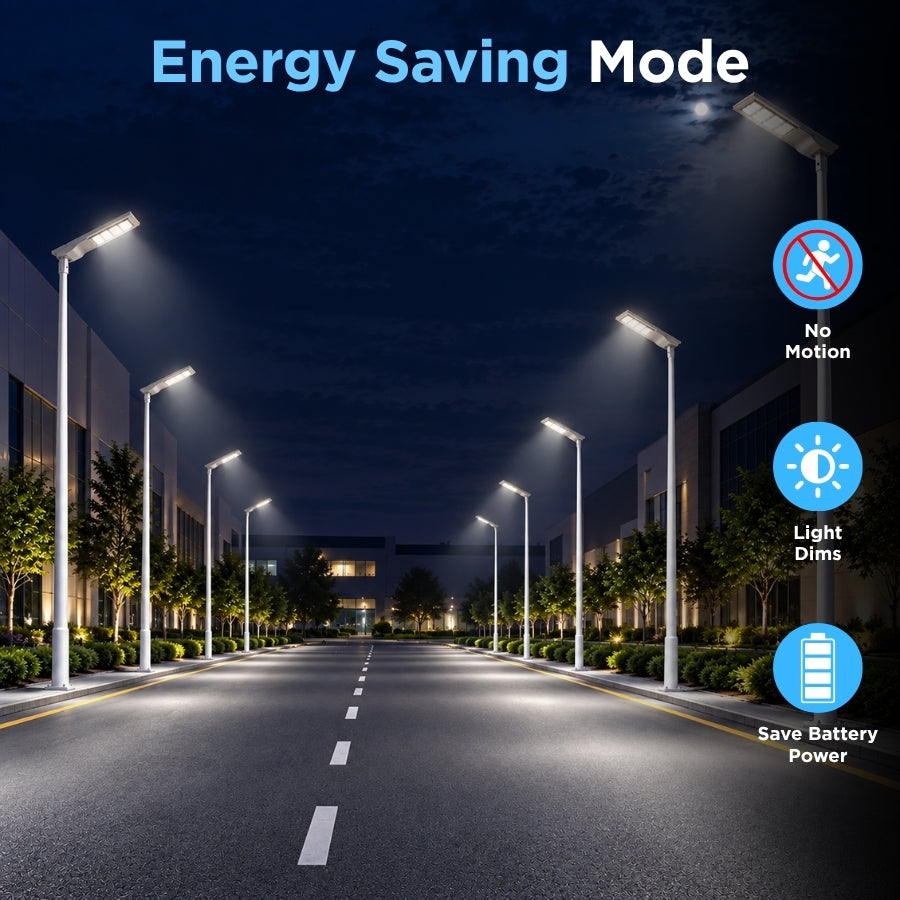

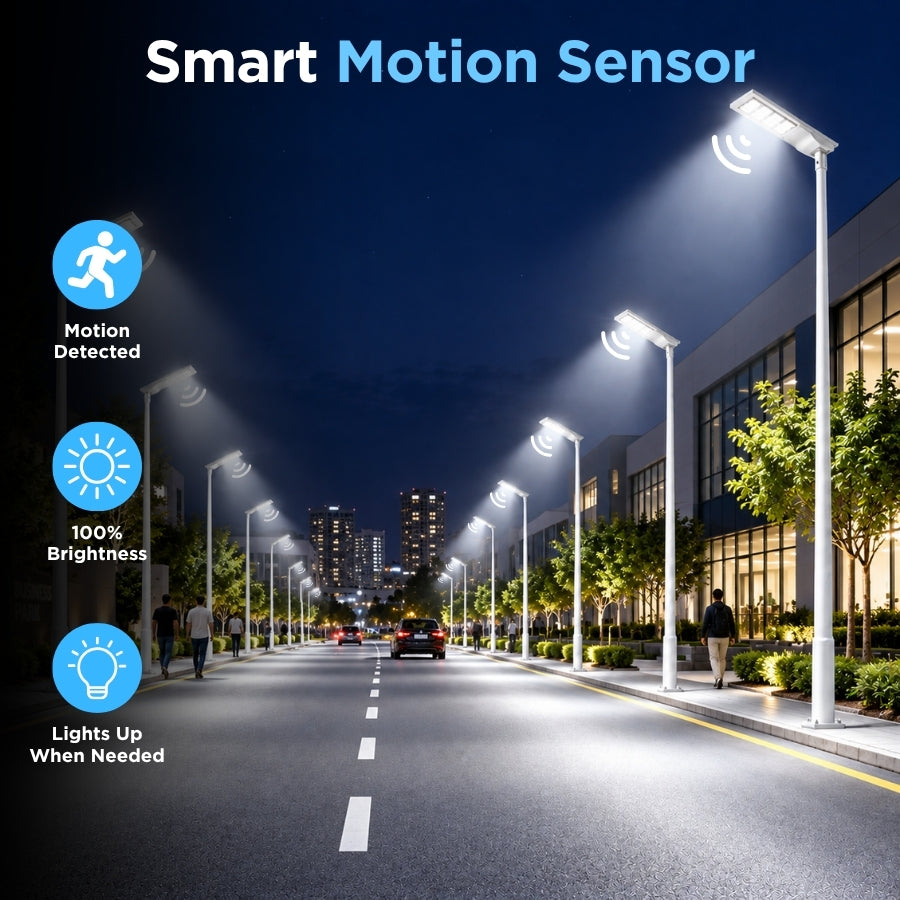

Intelligent Motion Sensor Operation

The integrated motion sensor helps reduce battery consumption during periods of low activity.

When movement is detected, the light can increase to 100% brightness. When no movement is detected, the brightness can be adjusted between 10% and 100%, allowing the system to reduce energy consumption while maintaining background illumination.

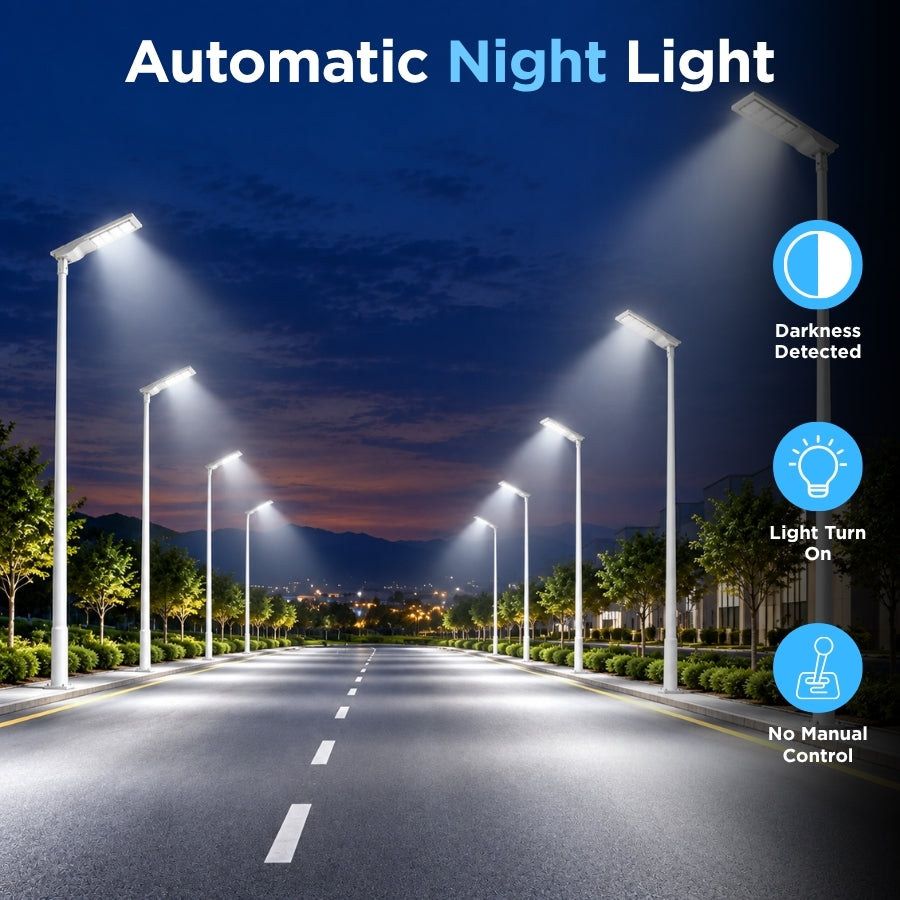

Dusk-to-Dawn & Time Control

The light sensor automatically responds to changing ambient conditions for nighttime operation. The system also includes time-based control that can divide nighttime operation into multiple programmed periods.

This combination allows lighting performance to be adjusted according to site requirements while helping conserve stored solar energy.

LiFePO4 Battery

The integrated 32135 LiFePO4 battery is designed for repeated charging and discharging and is rated for up to 2,200 charge/discharge cycles.

Actual nighttime operating performance depends on sunlight availability, weather, installation conditions, lighting settings, and the local environment.

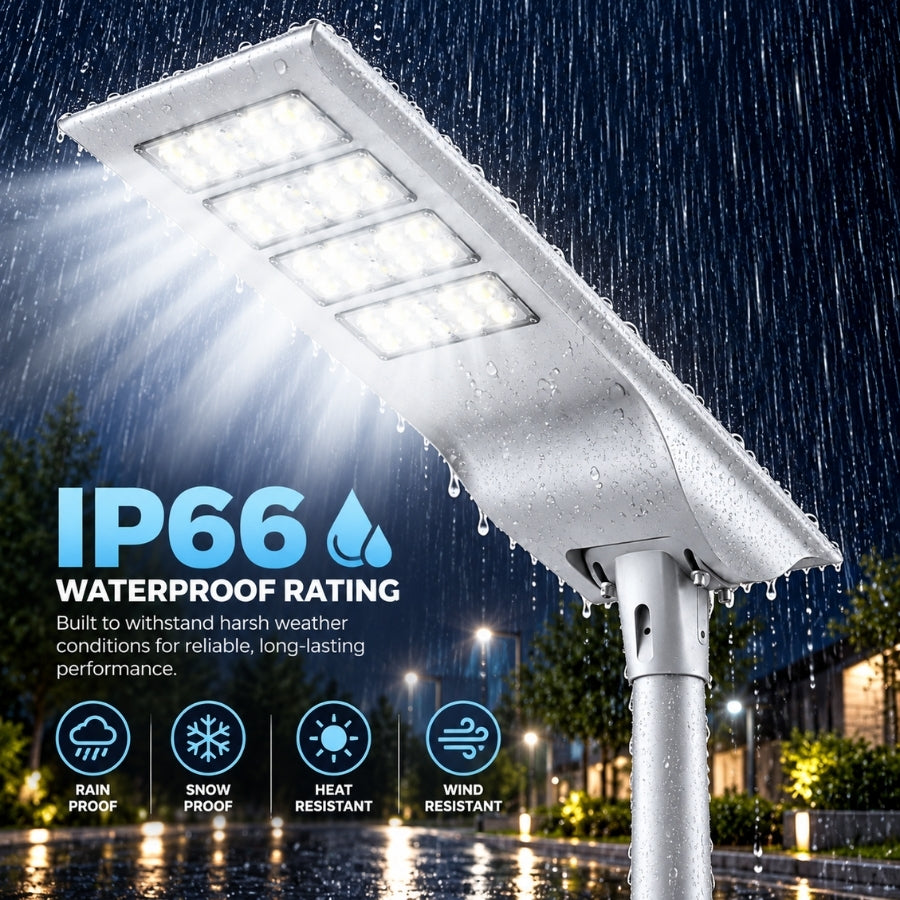

Durable Outdoor Construction

The integrated aluminum housing provides durability and helps dissipate heat from the LED and internal components. The IP66-rated construction provides protection against dust and water exposure for outdoor installations.

The grey housing provides a clean appearance for roads, campuses, parks, commercial properties, farms, pathways, and other outdoor environments.

Recommended Applications

• Roadway Lighting
• Street Lighting
• Sidewalk Lighting
• Pathway Lighting
• Parking Areas
• Campus Lighting
• Park Lighting
• Garden Lighting
• Fence Lighting
• Farm & Ranch Lighting
• Boat Dock Lighting
• Remote Area Lighting
• Rural Roads
• Commercial Outdoor Areas
• Off-Grid Lighting Projects

Off-Grid Lighting Solution

This 100W solar street light is designed for locations where traditional electrical wiring is unavailable, difficult to install, or costly to extend. The integrated solar panel and battery provide an independent power source for nighttime lighting.

It is particularly suitable for remote roads, rural properties, farms, ranches, pathways, parks, campuses, and other off-grid locations.

Installation Guidelines

• Install the solar panel in an unobstructed location with direct sunlight.
• Do not install beneath trees, buildings, or other structures that can shade the solar panel.
• Use the appropriate 60mm or 76mm pole connection.
• Recommended mounting height is 6-8 meters.
• Avoid high-temperature, enclosed, or poorly ventilated installation locations.
• Stored units should be charged and discharged approximately every 3 months.
• Installation and servicing should be performed by qualified personnel when required.

Frequently Asked Questions

How many lumens does this solar street light produce?

The light is specified for up to 10,000 lumens of maximum output.

What color temperature is this model?

It uses a 5700K cool-white LED light source.

Does this solar street light require electrical wiring?

No. The integrated solar panel and rechargeable battery allow the fixture to operate without conventional grid wiring.

What type of solar panel does it use?

It uses a 6V monocrystalline silicon solar panel with up to 24% conversion efficiency.

What battery is included?

The fixture uses a 32135 LiFePO4 rechargeable battery rated for up to 2,200 charge/discharge cycles.

Does it have a motion sensor?

Yes. The motion sensor can provide 100% brightness when movement is detected and an adjustable 10%-100% brightness level when no movement is detected.

Does it automatically turn on at night?

Yes. The integrated light sensor provides automatic operation based on ambient light conditions.

What pole sizes are compatible?

The fixture is designed for 60mm and 76mm pole diameters.

What mounting height is recommended?

The recommended mounting height is 6-8 meters.

How long can it operate at night?

The specification indicates more than 12 hours at full power and approximately 1-2 days in intelligent mode, depending on sunlight, weather, programming, and local conditions.

Is it suitable for remote areas?

Yes. The self-contained solar power system is designed for remote locations where conventional electrical wiring is unavailable or impractical.

Is the fixture weather resistant?

Yes. The fixture has an IP66 rating for protection against dust and water exposure.

What is the warranty?

The product includes a 2-year warranty.
