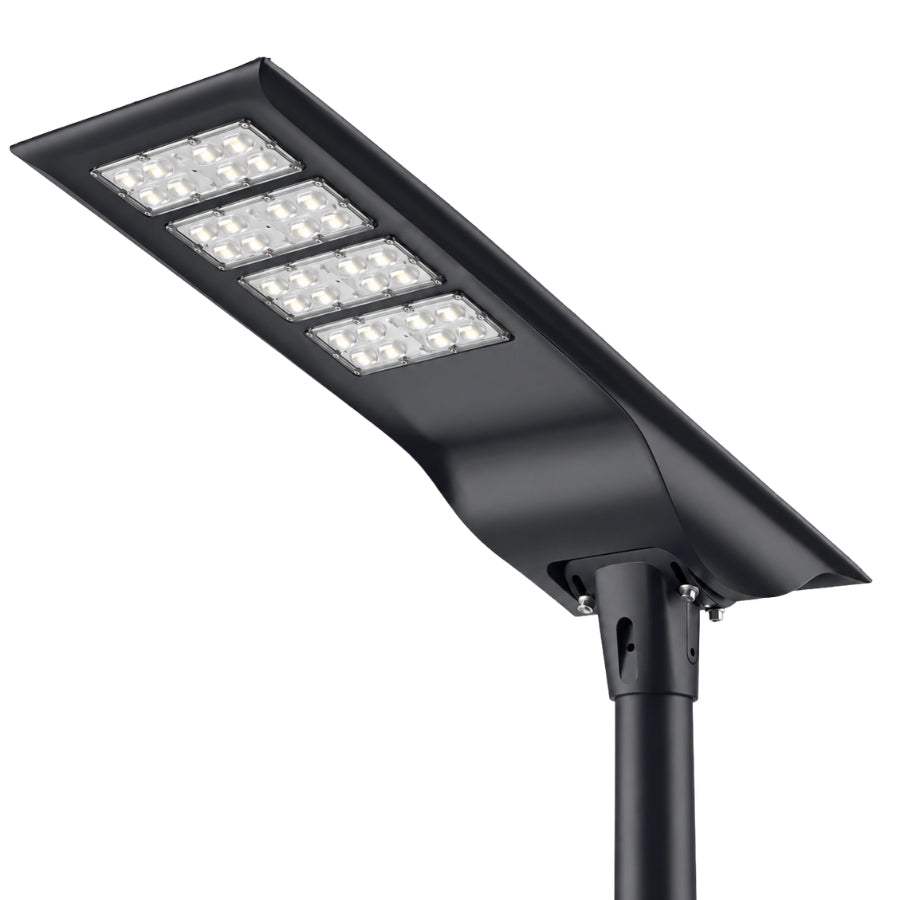

100W Solar LED Street Light, 10,000 Lumens, 5700K, LUXEON 3030 LEDs, 6V Monocrystalline Solar Panel, LiFePO4 Battery, Motion Sensor, Dusk-to-Dawn Light Control, 150°×65° Beam, IP66, Aluminum Housing, 60/76mm Pole Mount, 6-8M Mounting Height, Black

Product Overview

The 100W Solar LED Street Light delivers up to 10,000 lumens of outdoor illumination using an integrated 6V monocrystalline solar panel and LiFePO4 battery system. Designed for areas where conventional electrical wiring is difficult or unavailable, this solar street light combines solar charging, automatic dusk-to-dawn operation, time scheduling, and motion-sensing power control in one outdoor lighting solution.

LUXEON 3030 LED technology provides efficient, uniform illumination, while the durable aluminum housing and IP66 protection make the fixture suitable for demanding outdoor environments. With 60mm and 76mm pole compatibility and a recommended mounting height of 6-8 meters, it is suitable for roadways, pathways, campuses, parks, farms, parking areas, and other remote locations.

Key Features

• 100W LED Output: Provides up to 10,000 lumens for large-area outdoor illumination.
• 5700K Color Temperature: Delivers bright, cool-white illumination suitable for streets, pathways, campuses, and commercial outdoor areas.
• LUXEON 3030 LEDs: Uses 70 high-performance LUXEON 3030 LED chips.
• Integrated Solar Power: Includes a 6V monocrystalline silicon solar panel with up to 24% conversion efficiency.
• LiFePO4 Battery: Advanced 32135 LiFePO4 battery supports up to 2,200 charge/discharge cycles.
• Motion Sensor: Provides 100% brightness when motion is detected and adjustable 10%-100% brightness when no motion is detected.
• Dusk-to-Dawn Control: Automatically activates when ambient light decreases and turns off during daylight.
• Time Control: Supports multiple programmed lighting periods for optimized nighttime energy management.
• MPPT Technology: Advanced maximum power point tracking helps improve solar charging and overall system efficiency.

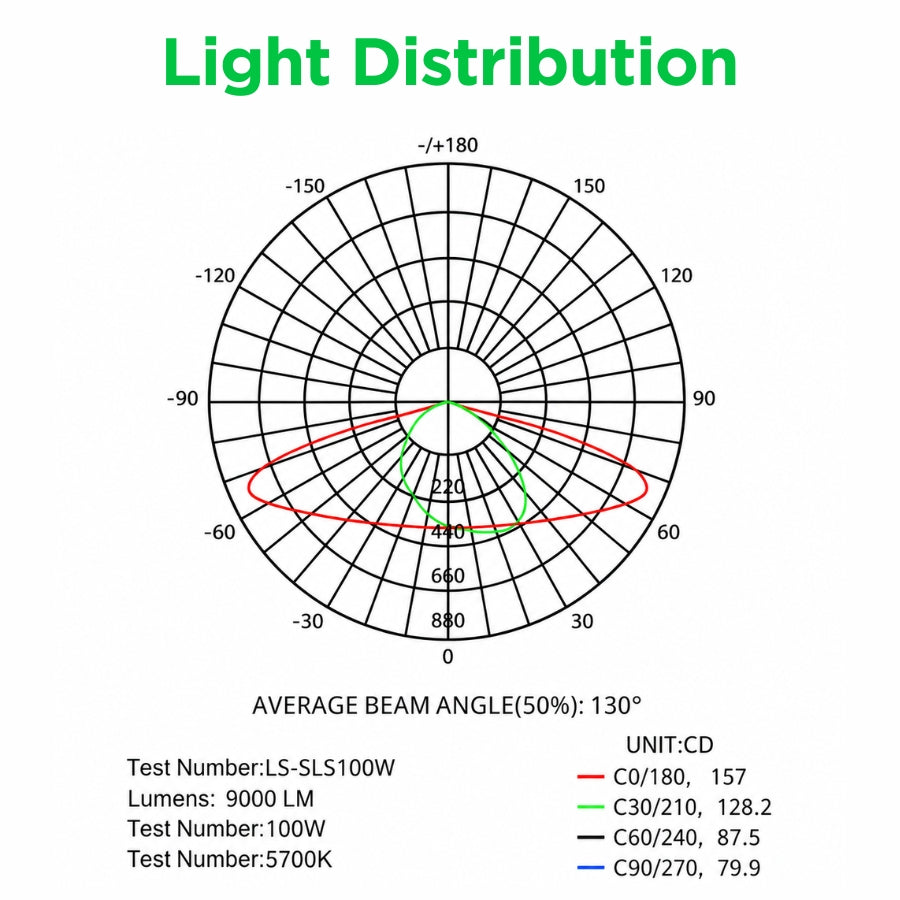

• 150°×65° Beam: Provides broad roadway and area coverage.
• IP66 Protection: Designed to resist dust and water exposure in outdoor environments.
• Durable Aluminum Housing: Integrated aluminum construction supports heat dissipation and long-term outdoor use.
• 60/76mm Pole Mount: Compatible with common 60mm and 76mm pole diameters.
• 6-8M Mounting Height: Suitable for elevated roadway, pathway, parking, and area lighting applications.
• No Electrical Wiring Required: Ideal for remote locations where trenching or utility connections are impractical.

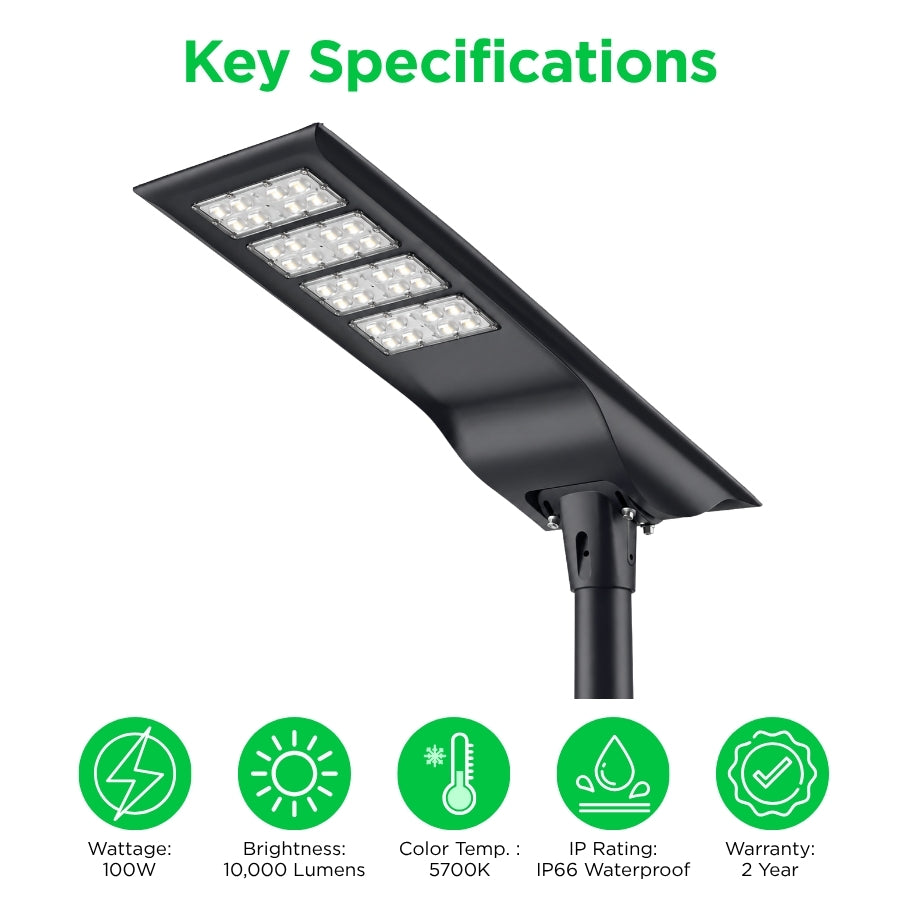

Technical Specifications

Advanced Solar Power System

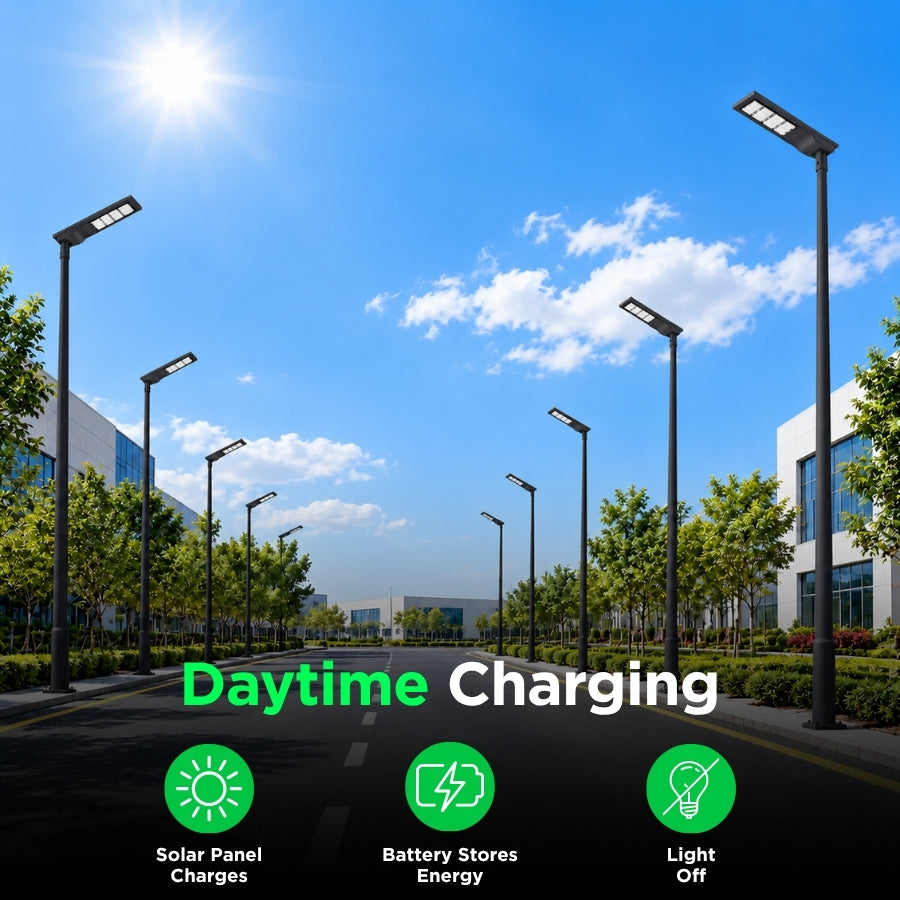

The integrated monocrystalline solar panel converts sunlight into electrical energy for charging the internal LiFePO4 battery. The panel offers up to 24% conversion efficiency and works with MPPT charging technology to help maximize available solar energy under changing sunlight conditions.

The integrated system eliminates the need for underground electrical wiring, making the fixture suitable for remote areas, rural roads, pathways, farms, parks, campuses, and other locations where grid power is unavailable or costly to install.

Intelligent Lighting Controls

The solar street light combines three control methods:

Time Control:
Lighting can be programmed across multiple time periods to manage brightness and operating duration throughout the night.

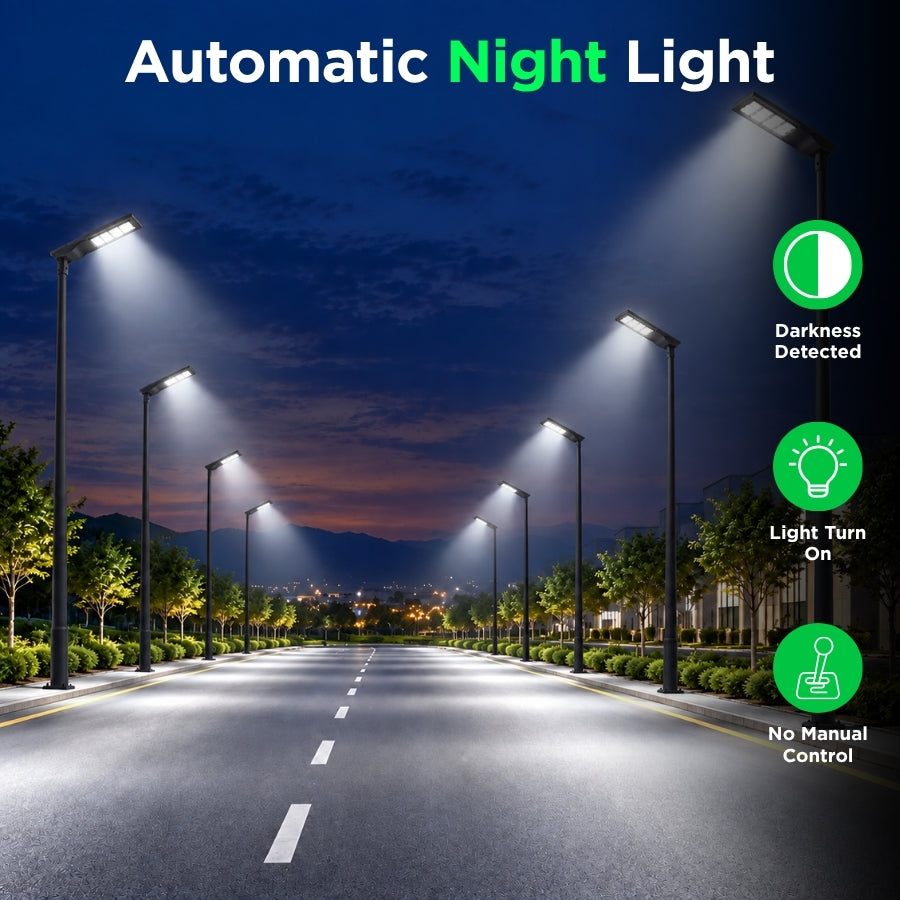

Light Sensor Control:
The fixture automatically responds to ambient light conditions, providing automatic nighttime activation and daytime shutoff.

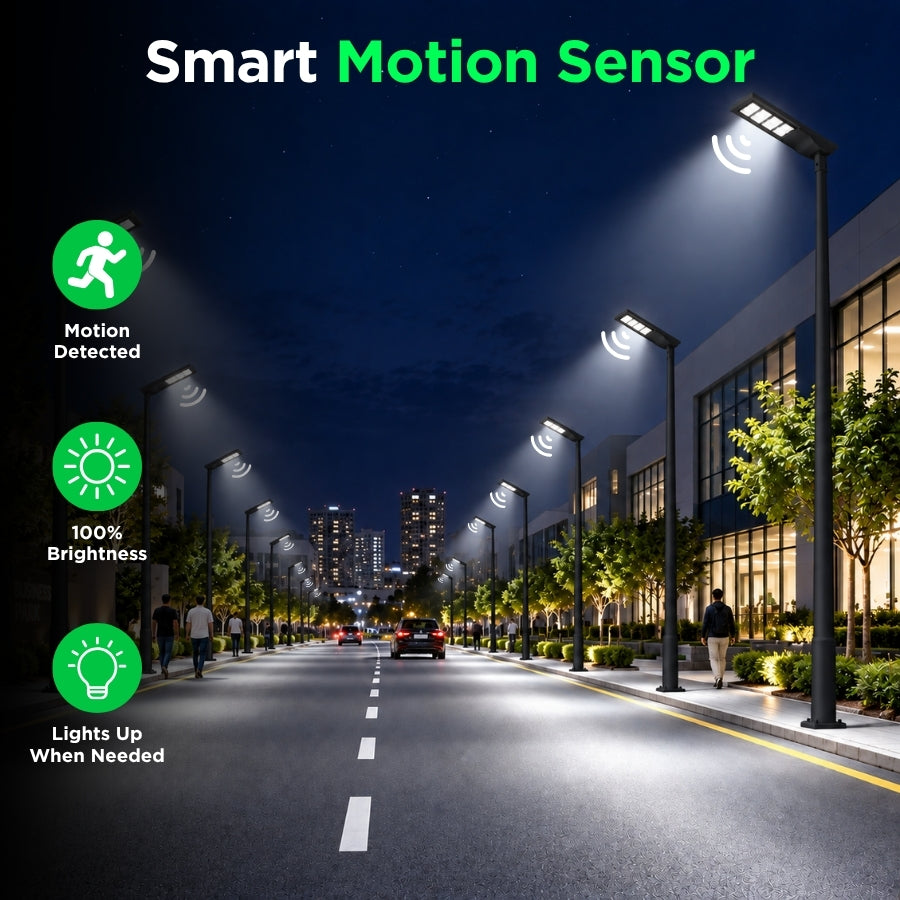

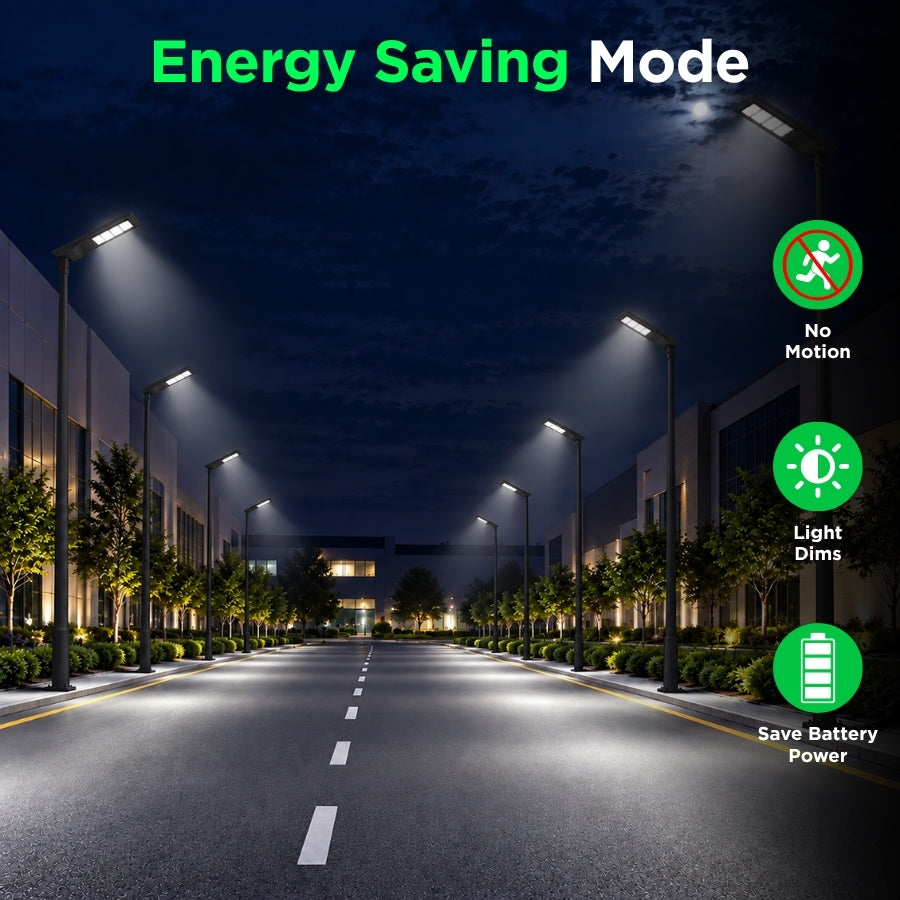

Motion Sensor Control:
When movement is detected, the light can operate at 100% brightness. When no movement is detected, brightness can be reduced to an adjustable 10%-100% level to conserve stored battery power.

LiFePO4 Battery Technology

The integrated 32135 LiFePO4 battery is designed for repeated charging and discharging and is rated for up to 2,200 cycles. Its rechargeable design stores solar energy during daylight hours for nighttime operation.

Actual operating duration depends on sunlight availability, weather, installation conditions, programmed lighting settings, and local environmental conditions.

Durable Outdoor Construction

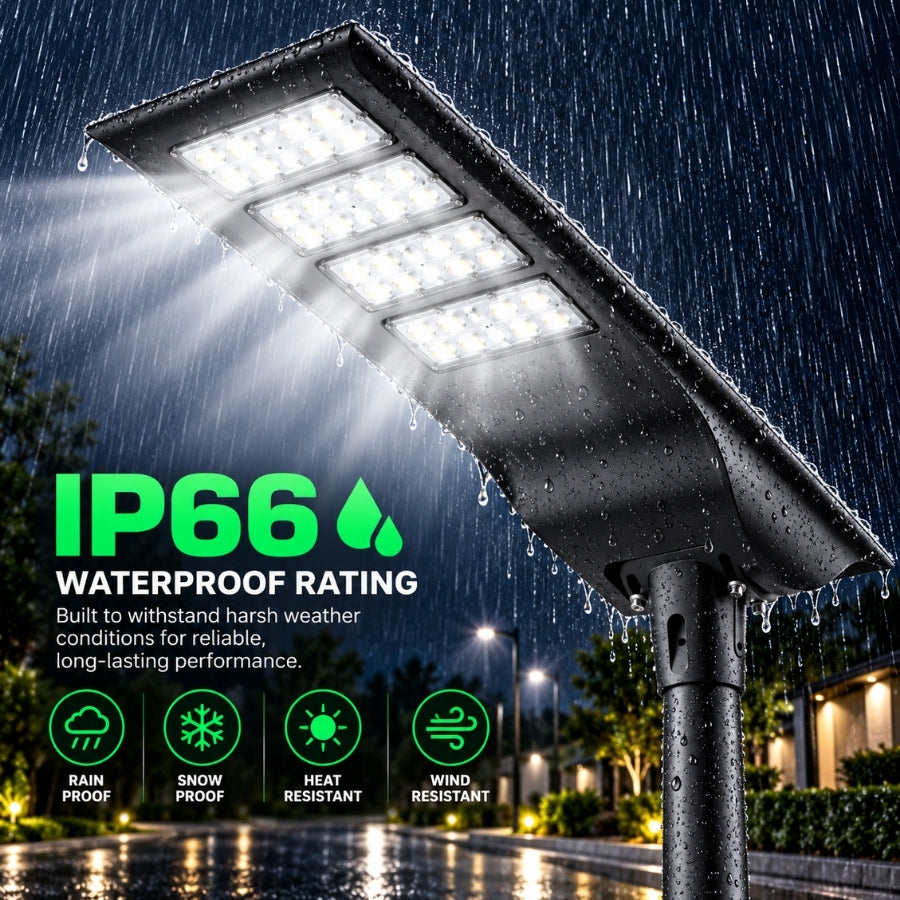

The integrated aluminum housing provides mechanical durability and helps dissipate heat from the LED and internal components. The IP66-rated construction provides protection against dust and water exposure, making the fixture suitable for outdoor roadway and area lighting.

The fixture is designed for a recommended installation height of 6-8 meters and supports 60mm or 76mm pole diameters.

Recommended Applications

• Roadway Lighting
• Street Lighting
• Sidewalk Lighting
• Pathway Lighting
• Parking Areas
• Campus Lighting
• Park Lighting
• Garden Lighting
• Fence Lighting
• Farm & Ranch Lighting
• Boat Dock Lighting
• Remote Area Lighting
• Rural Roads
• Walkways
• Commercial Outdoor Areas

Off-Grid Lighting Solution

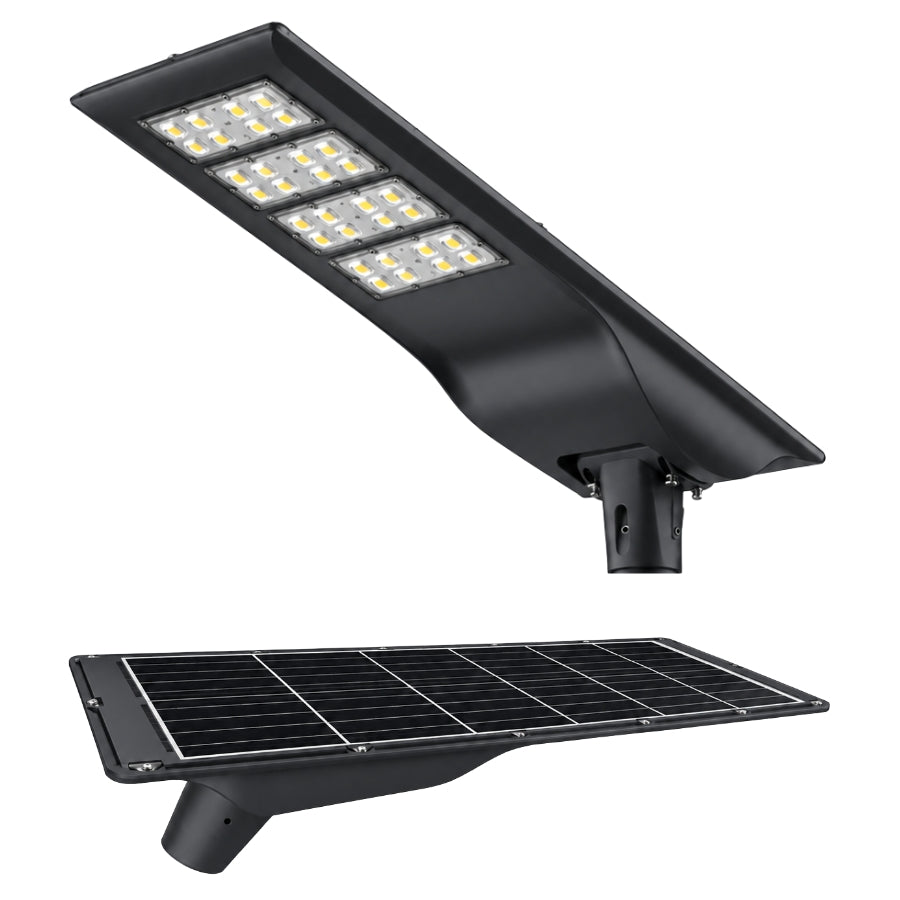

This 100W solar street light is designed for locations where conventional electrical infrastructure is unavailable, expensive, or difficult to install. The integrated solar panel, rechargeable battery, sensors, and LED fixture create a self-contained outdoor lighting system without requiring a direct electrical connection.

Installation & Operating Guidelines

• Install the solar panel where it receives unobstructed sunlight throughout the day.
• Do not install the fixture beneath trees, structures, or other objects that can shade the solar panel.
• Use the appropriate 60mm or 76mm pole connection for installation.
• Install at the recommended 6-8 meter mounting height for suitable area coverage.
• Avoid high-temperature, enclosed, or poorly ventilated installation locations.
• Stored units should be charged and discharged approximately every 3 months.
• Installation, servicing, and troubleshooting should be performed by qualified personnel when required.

Frequently Asked Questions

How many lumens does this 100W solar street light produce?

The fixture is specified for up to 10,000 lumens of maximum light output.

What color temperature is the light?

This version is specified at 5700K, producing a bright cool-white appearance for outdoor illumination.

Does it require electrical wiring?

No. The fixture uses an integrated solar panel and rechargeable LiFePO4 battery, making it suitable for off-grid applications.

What type of solar panel does it use?

It uses a 6V monocrystalline silicon solar panel with up to 24% conversion efficiency.

What battery does the light use?

It uses a 32135 LiFePO4 rechargeable battery rated for up to 2,200 charge/discharge cycles.

Does the light have a motion sensor?

Yes. The motion sensor can provide 100% brightness when movement is detected and an adjustable 10%-100% brightness level when no movement is detected.

Does it turn on automatically at night?

Yes. The integrated light sensor provides automatic nighttime operation and daytime shutoff based on ambient light conditions.

What pole sizes are compatible?

The fixture is designed for 60mm and 76mm pole diameters.

What mounting height is recommended?

The recommended installation height is 6-8 meters.

Is it suitable for remote locations?

Yes. Its integrated solar power system eliminates the need for conventional electrical wiring, making it suitable for remote roads, pathways, farms, parks, campuses, and other off-grid locations.

Is the fixture waterproof?

The fixture is rated IP66, providing protection against dust and water exposure for outdoor applications.

What is the warranty?

The product includes a 2-year warranty.

How long will it operate at night?

The specification indicates more than 12 hours at full power and approximately 1-2 days in intelligent mode, depending on sunlight, weather, programming, and local environmental conditions.
