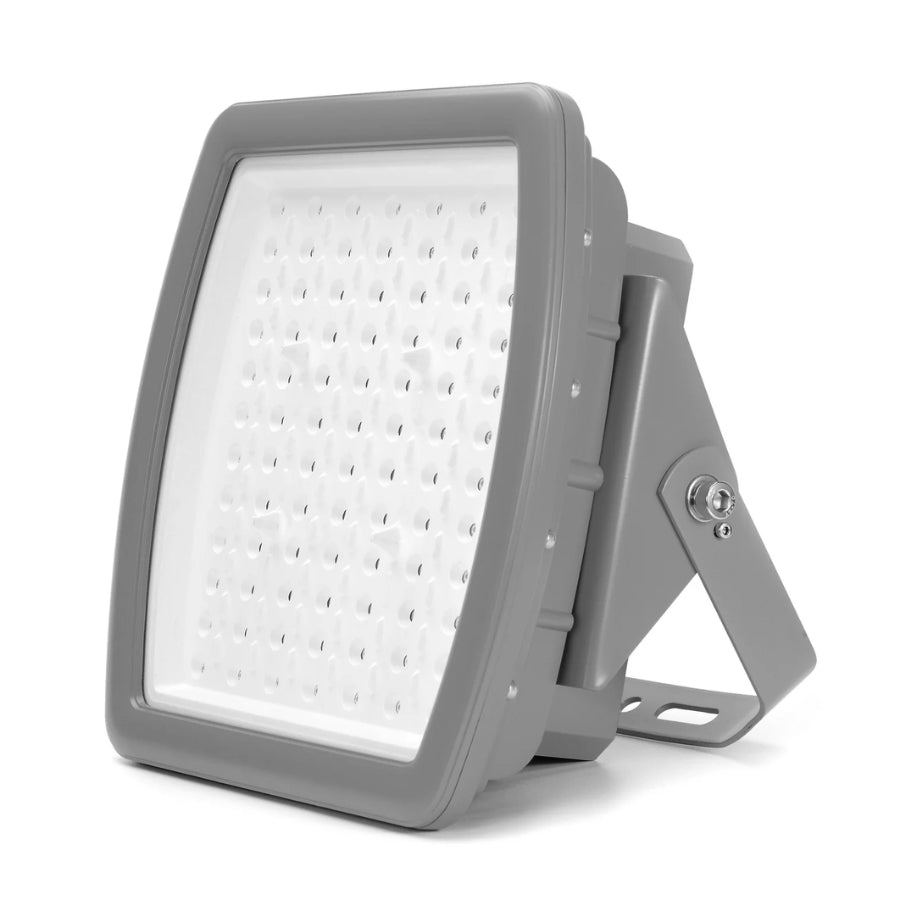

100W Explosion Proof LED Flood Light, 5000K, 13,000 Lumens, 130 lm/W, Class I Division 2 Groups A/B/C/D, 120-277V AC, 120° Beam, 250W MH Equivalent, UL/cUL & DLC Certified, IP68, 5-Year Warranty
- $462.00
$508.20- $462.00
- Unit price
- per
Bulk Discounts on orders over $500 — Learn More
Energy Efficient LEDs — Bulk Discounts
×Automatic discounts apply at checkout on orders over $500.
SPENDSAVE
$500 – $1,9995%
$2,000 – $3,9996%
$4,000 – $5,9997%
$6,000 – $7,9998%
$8,000 – $9,9999%
$10,000 – $19,99910%
$20,000 – $49,99912%
$50,000+15%
For assistance, complete the form below or give us a call at (404) 397-2785
Subtotal:
$462.00
Product Overview
The Energy Efficient LEDs 100W Explosion Proof LED Flood Light is engineered for hazardous industrial and commercial environments requiring reliable, high-output illumination and rugged protection. Producing 13,000 lumens at 130 lm/W, it provides broad-area lighting while serving as an efficient replacement for conventional 200–400W MH/HPS fixtures.
The fixture features a heavy-duty die-cast aluminum housing, tempered glass optics, Lumileds 3030 LED chips, and an IP68-rated design. Its wide 120° distribution makes it suitable for outdoor industrial areas, petroleum facilities, chemical environments, gas stations, ports, marine applications, and other hazardous locations.
Key Features
- 100W LED flood light
- 13,000 lumens
- 130 lm/W efficacy
- 5000K cool white
- 120° wide beam
- Class I Division 2, Groups A/B/C/D
- Designed for Zone 1 & Zone 2 gaseous environments
- Designed for Zone 21 & Zone 22 dust environments
- IP68-rated construction
- Heavy-duty die-cast aluminum housing
- Grey powder-coated finish
- Tempered glass optical lens
- Lumileds 3030 LED chips
- 120–277V AC
- 0.90 power factor
- UL/cUL & DLC certified
- Approximately 50,000-hour lifetime
- Wall U-bracket or conduit-thread pendant mounting
- 5-year limited warranty
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Energy Efficient LEDs |
| Model | CES-J100W |
| Product Code | LS-FLC-A.0 |
| Product Type | Explosion Proof LED Flood Light |
| Wattage | 100W |
| Lumens | 13,000 lm |
| Efficacy | 130 lm/W |
| Color Temperature | 5000K |
| CRI | >72 |
| Input Voltage | 120–277V AC |
| Power Factor | 0.90 |
| Beam Angle | 120° |
| Photometric Average Beam Angle | 111.1° |
| LED Chips | Lumileds 3030 |
| LED Driver | MEAN WELL HLG |
| Working Temperature | -20°C to 50°C |
| Junction Temperature | <75°C |
| Fixture Efficiency | ≥90% |
| Lifetime | 50,000 hours |
| Hazardous Location | Class I Division 2, Groups A/B/C/D |
| Hazardous Environment | Zone 1 & 2 Gas; Zone 21 & 22 Dust |
| Ingress Protection | IP68 |
| Housing | Heavy Die-Cast Aluminum |
| Lens/Optics | Tempered Glass |
| Finish | Grey Powder-Coated |
| Certifications | UL, cUL, DLC |
| Mounting | Wall U-Bracket or Conduit-Thread Pendant |
| Equivalent | 200–400W MH/HPS |
| Warranty | 5-Year Limited Warranty |
Hazardous Location Protection
This fixture is specified for hazardous-location applications involving potentially flammable gases, vapors, or combustible dust. The supplied specification identifies the 100W model for Class I Division 2 Groups A/B/C/D, as well as Zone 1/2 gaseous environments and Zone 21/22 dust environments.
Always verify certification markings, hazardous-location classification, applicable electrical codes, and site-specific installation requirements before installation.
Construction & Optical Design
A heavy die-cast aluminum body provides a durable enclosure for demanding industrial applications, while the grey powder-coated finish helps resist corrosion and wear. The tempered glass optical system provides broad illumination across the work area.
The fixture uses Lumileds 3030 LED technology with a MEAN WELL HLG driver and 120–277V AC input for commercial and industrial electrical systems.
Mounting Options
- Wall U-bracket mounting
- Conduit-thread pendant mounting
- Threaded pipe mounting available upon request
Recommended Applications
- Gas stations
- Petroleum facilities
- Chemical industries
- Coal mines
- Military ports
- Marine facilities
- Oil and gas facilities
- Hazardous industrial areas
- Outdoor industrial work areas
- Hazardous-location flood lighting
Replacement & Performance
The 100W LED design is listed as a replacement for approximately 200–400W MH/HPS lighting, allowing facilities to achieve high-output illumination with a lower fixture wattage.
The combination of wide-area distribution, durable construction, and hazardous-location design makes this fixture suitable for demanding industrial lighting projects.
Bulk & Contractor Buying
Ideal for contractors, distributors, facility managers, industrial operators, and large lighting projects. Contact Energy Efficient LEDs for project quantities, bulk pricing, and application assistance.
Frequently Asked Questions
Is this flood light designed for hazardous locations?
Yes. The supplied specification identifies it as a hazardous/explosion-proof LED luminaire with Class I Division 2 Groups A/B/C/D classification.
How many lumens does the 100W model produce?
The fixture produces 13,000 lumens.
What color temperature is available?
This model is specified at 5000K.
What voltage does it support?
It operates on 120–277V AC.
What is the beam angle?
The nominal beam angle is 120°, with a listed photometric average beam angle of 111.1°.
What conventional fixture does it replace?
The specification lists it as equivalent to approximately 200–400W MH/HPS lighting.
Is it suitable for dust environments?
Yes. The specification identifies the fixture for Zone 21 and Zone 22 dust environments and lists an IP68 rating.
Can it be wall mounted?
Yes. The fixture can be installed using a wall U-bracket.
Is pendant mounting available?
Yes. It supports conduit-thread pendant mounting, and threaded pipe is available upon request.
What LED chips are used?
The fixture uses Lumileds 3030 LED chips.
What is the expected lifetime?
The specification lists a lifetime of approximately 50,000 hours.
What is the operating temperature?
The supplied construction/electrical specification lists -20°C to 50°C.
Does it include a warranty?
Yes. It includes a 5-year limited warranty.
Is it suitable for outdoor industrial applications?
Yes, it is designed for demanding industrial and outdoor applications, subject to the specific site's hazardous-location requirements.
